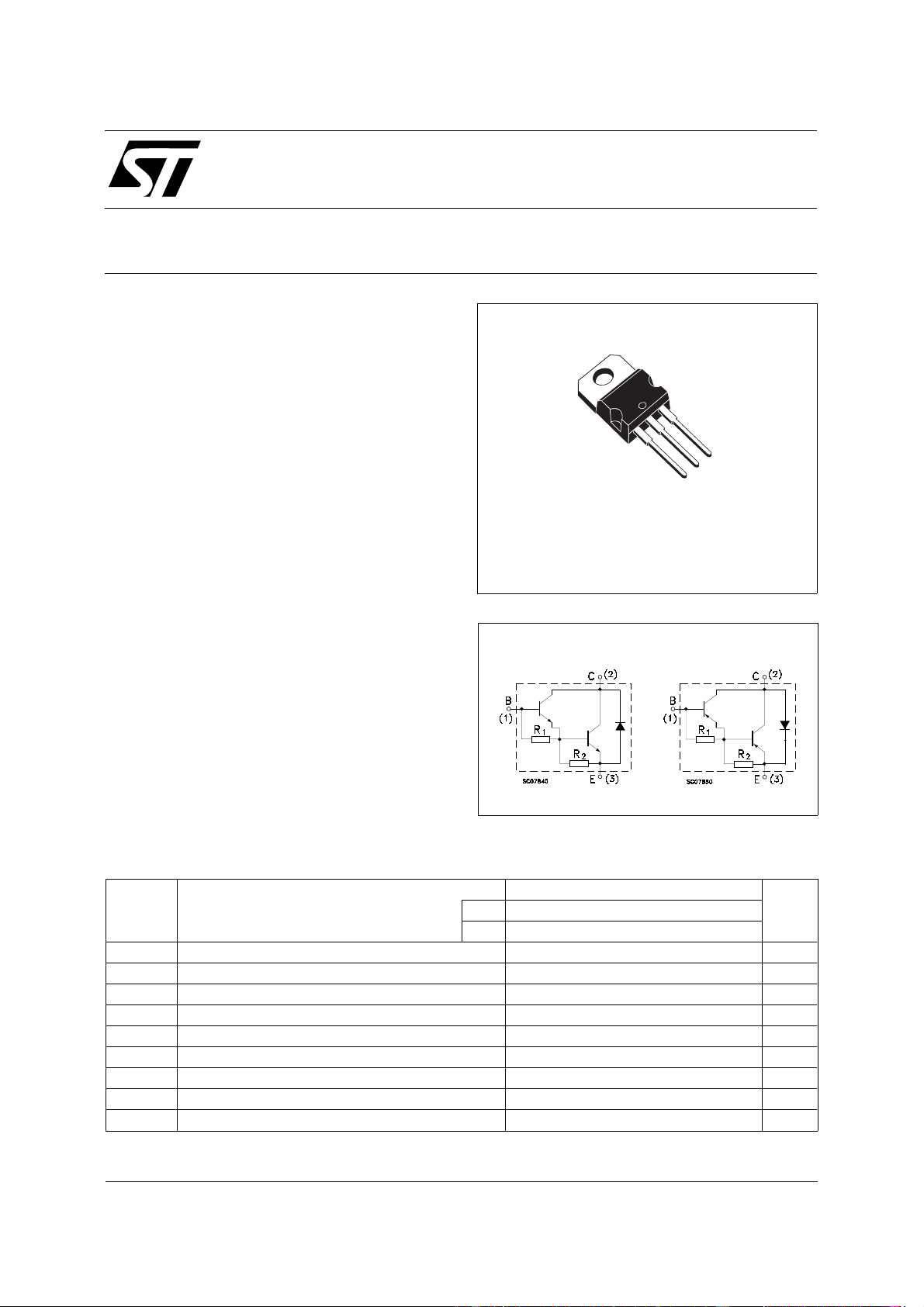

TIP142T
TIP147T
COMPLEMENTARY SILICON POWER
DARLINGTON TRANSISTORS
■ STMicroelectronics PREFERRED
SALESTYPES
■ COMPLEMENTARY PNP - NPN DEVICES
■ MONOLITHIC DARLINGTON
CONFIGURATION
■ LOW VOLTAGE
■ HIGH CURRENT
■ HIGH GAIN
APPLICATIONS
■ GENERAL PURPOSE SWITCHING
DESCRIPTION
The TIP142T is a silicon Epitaxial-Base NPN
power transistor in monolithic Darlington
configuration, mounted in TO-220 plastic
package. It is intented for use in power linear and
switching applications.
The complementary PNP type is TIP147T.
INTERNAL SCHEMATIC DIAGRAM
March 2000
ABSOLUTE MAXIMUM RATINGS
Symbol Parameter Value Unit
NPN TIP142T
PNP TIP147T
V
CBO
Collector-Base Voltage (I
E
= 0) 100 V
V
CEO
Collector-Emitter Voltage (I
B
= 0) 100 V
V
EBO
Emitter-Base Voltage (I
C
= 0) 5 V
I
C
Collector Current 15 A
I
CM
Collector Peak Current (t
p
< 5ms) 20 A
I
B
Base Current 0.5 A
P
tot
Total Dissipation at T
case
≤ 25
o
C
90 W
T
stg
Storage Temperature - 65 to 150
o
C
T
j
Max. Operating Junction Temperature 150
o
C
For PNP types voltage and current values are negative.
1
2
3
TO-220
®
1/4
