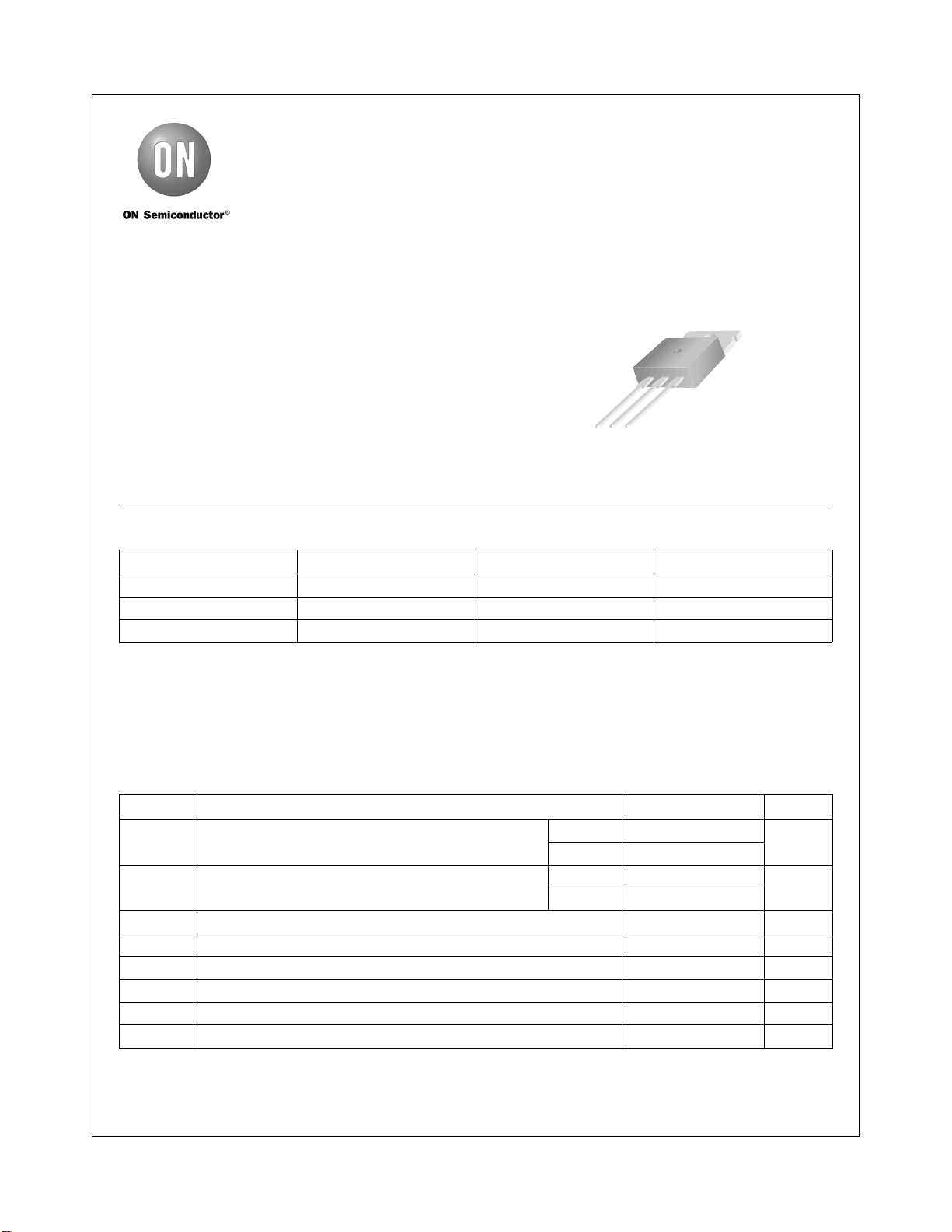

TIP42 / TIP42C — PNP Epitaxial Silicon Transistor
Publication Order Number:
TIP42C/D
© 2000 Semiconductor Components Industries, LLC.
November-2017, Rev. 2
TIP42 / TIP42C
PNP Epitaxial Silicon Transistor
Features
• Medium Power Linear Switching Applications
• Complement to TIP41 Series
Ordering Information
Absolute Maximum Ratings
Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be opera-
ble above the recommended operating conditions and stressing the parts to these levels is not recommended. In addi-
tion, extended exposure to stresses above the recommended operating conditions may affect device reliability. The
absolute maximum ratings are stress ratings only. Values are at T
C
= 25°C unless otherwise noted.
Part Number Top Mark Package Packing Method
TIP42 TIP42 TO-220 3L (Single Gauge) Bulk
TIP42C TIP42C TO-220 3L (Single Gauge) Bulk
TIP42CTU TIP42C TO-220 3L (Single Gauge) Rail
Symbol Parameter Value Unit
V
CBO
Collector-Base Voltage
TIP42 -40
V
TIP42C -100
V
CEO
Collector-Emitter Voltage
TIP42 -40
V
TIP42C -100
V
EBO
Emitter-Base Voltage -5 V
I
C
Collector Current (DC) -6 A
I
CP
Collector Current (Pulse) -10 A
I
B
Base Current -2 A
T
J
Junction Temperature 150 °C
T
STG
Storage Temperature Range -65 to 150 °C
1.Base 2.Collector 3.Emitter
1
TO-220
