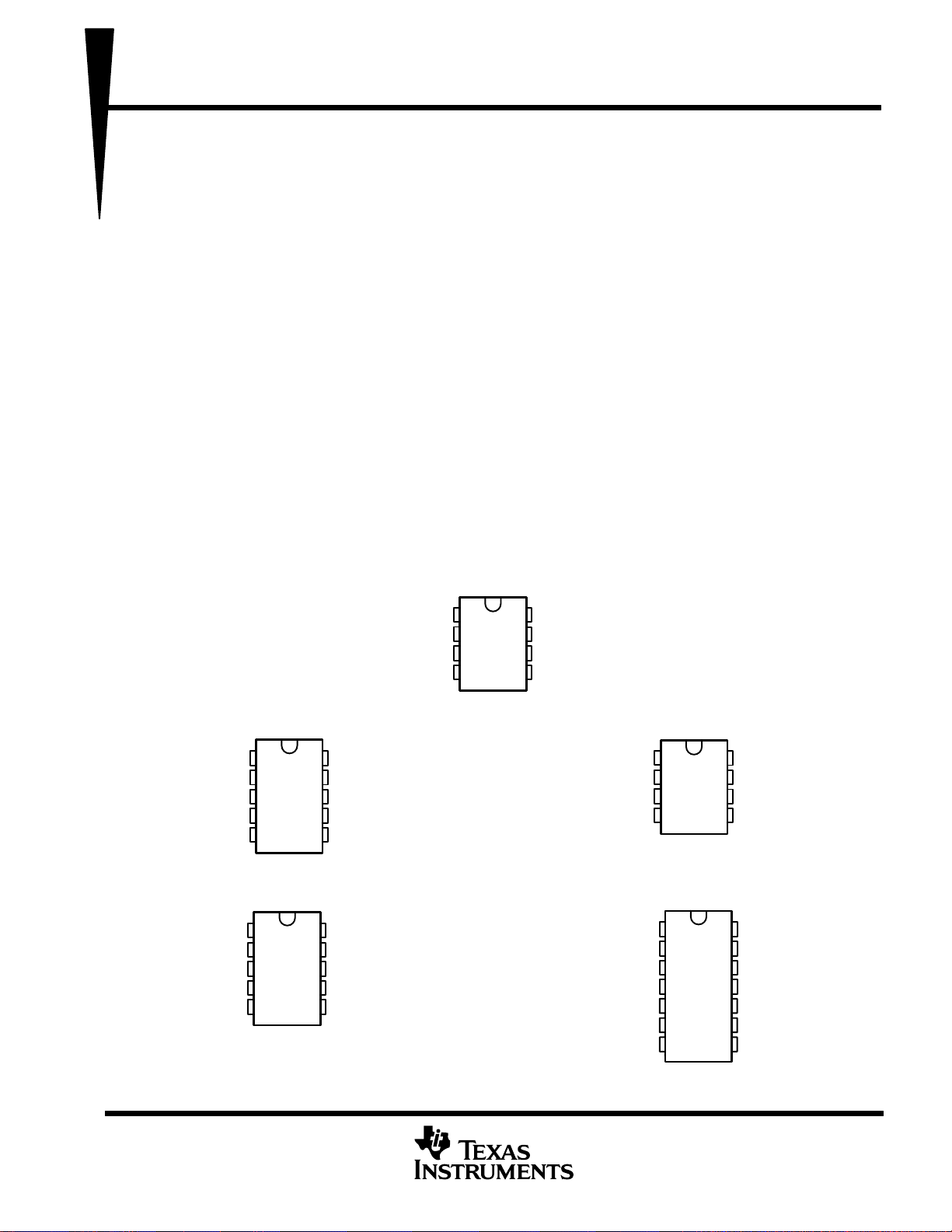

TL061, TL061A, TL061B, TL061Y, TL062, TL062A
TL062B, TL062Y, TL064, TL064A, TL064B, TL064Y
LOW-POWER JFET-INPUT OPERATIONAL AMPLIFERS
SLOS078B – NOVEMBER 1978 – REVISED AUGUST 1994
Copyright 1994, Texas Instruments Incorporated
2–1
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
POST OFFICE BOX 1443
• HOUSTON, TEXAS 77251–1443
15 DEVICES COVER MILITARY, INDUSTRIAL,
AND COMMERCIAL TEMPERATURE RANGES
• Very Low Power Consumption
• Typical Supply Current...200 µA
(per Amplifier)
• Wide Common-Mode and Differential
Voltage Ranges
• Low Input Bias and Offset Currents
• Common-Mode Input Voltage Range
Includes V
CC+
• Output Short-Circuit Protection
• High Input impedance...JFET-Input Stage
• Internal Frequency Compensation
• Latch-Up-Free Operation
• High Slew Rate...3.5 V/µs Typ
description
The JFET-input operational amplifiers of the TL06_ series are designed as low-power versions of the TL08_
series amplifiers. They feature high input impedance, wide bandwidth, high slew rate, and low input offset and
bias currents. The TL06_ series features the same terminal assignments as the TL07_ and TL08_ series. Each
of these JFET-input operational amplifiers incorporates well-matched, high-voltage JFET and bipolar
transistors in a monolithic integrated circuit.
The C-suffix devices are characterized for operation from 0°C to 70°C. The I-suffix devices are characterized
for operation from –40°C to 85°C, and the M-suffix devices are characterized for operation over the full military
temperature range of –55°C to 125°C.
1
2
3
4
8
7
6
5
OFFSET N1
IN–
IN+
V
CC–
NC
V
CC+
OUT
OFFSET N2
TL061, TL061A, TL061B
D, JG, P, OR PW PACKAGE
1
2
3
4
8
7
6
5
1OUT
1IN–
1IN+
V
CC–
V
CC+
2OUT
2IN–
2IN+
TL062, TL062A, TL062B
D, JG, P, OR PW PACKAGE
(TOP VIEW)
1
2
3
4
5
10
9
8
7
6
NC
OFFSET N1
IN–
IN+
V
CC–
NC
NC
V
CC+
OUT
OFFSET N2
TL061 ...U PACKAGE
(TOP VIEW)
1
2
3
4
5
6
7
14
13
12
11
10
9
8
1OUT
1IN–
1IN+
V
CC+
2IN+
2IN–
2OUT
3OUT
3IN–
3IN+
V
CC–
4IN+
4IN–
4OUT
TL064 . . . D, J, N, PW, OR W PACKAGE
TL064A, TL064B ...D OR N PACKAGE
(TOP VIEW)
•
1
2
3
4
5
10
9
8
7
6
NC
1OUT
1IN–
1IN+
V
CC–
NC
V
CC+
2OUT
2IN–
2IN+
TL062 ...U PACKAGE
(TOP VIEW)
•
NC – No internal connection
(TOP VIEW)
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
