TLE4998S3C
Overview
Data Sheet 6 Rev 1.1, 2009-09
1.2 Target Applications
• Robust replacement of potentiometers
– No mechanical abrasion
– Resistant to humidity, temperature, pollution and vibration
• Linear and angular position sensing in automotive applications such as pedal position,
suspension control, throttle position, headlight levelling, and steering torque sensing
• Sensing of high current for battery management, motor control, and electronic fuses
1.3 Pin Configuration

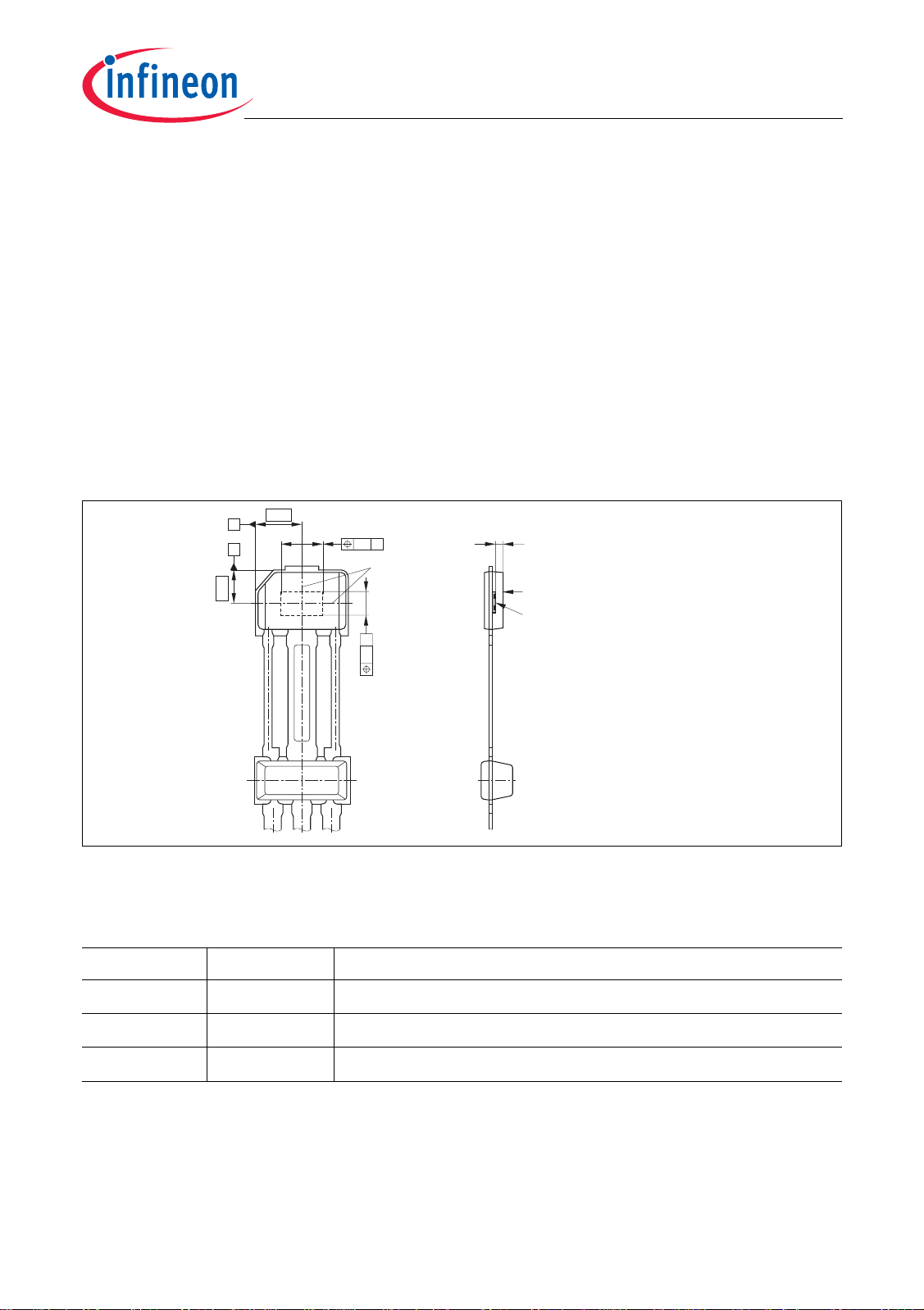

Figure 1 shows the location of the Hall element in the chip and the distance between
Hall probe and the surface of the package.
Figure 1 TLE4998x3C Pin Configuration and Hall Cell Location
Table 1 TLE4998S3C Pin Definitions and Functions
Pin No. Symbol Function
1
VDD
Supply voltage / programming interface
2
GND
Ground
3
OUT
Output / programming interface
AEP03538
231
0.3
d: Distance chip to upper side of I
C
mm
±0.05
Hall-Probe
Branded Side
d
Center of
sensitive area
2.67
1.53
B
B
A
0.2
A0.2
