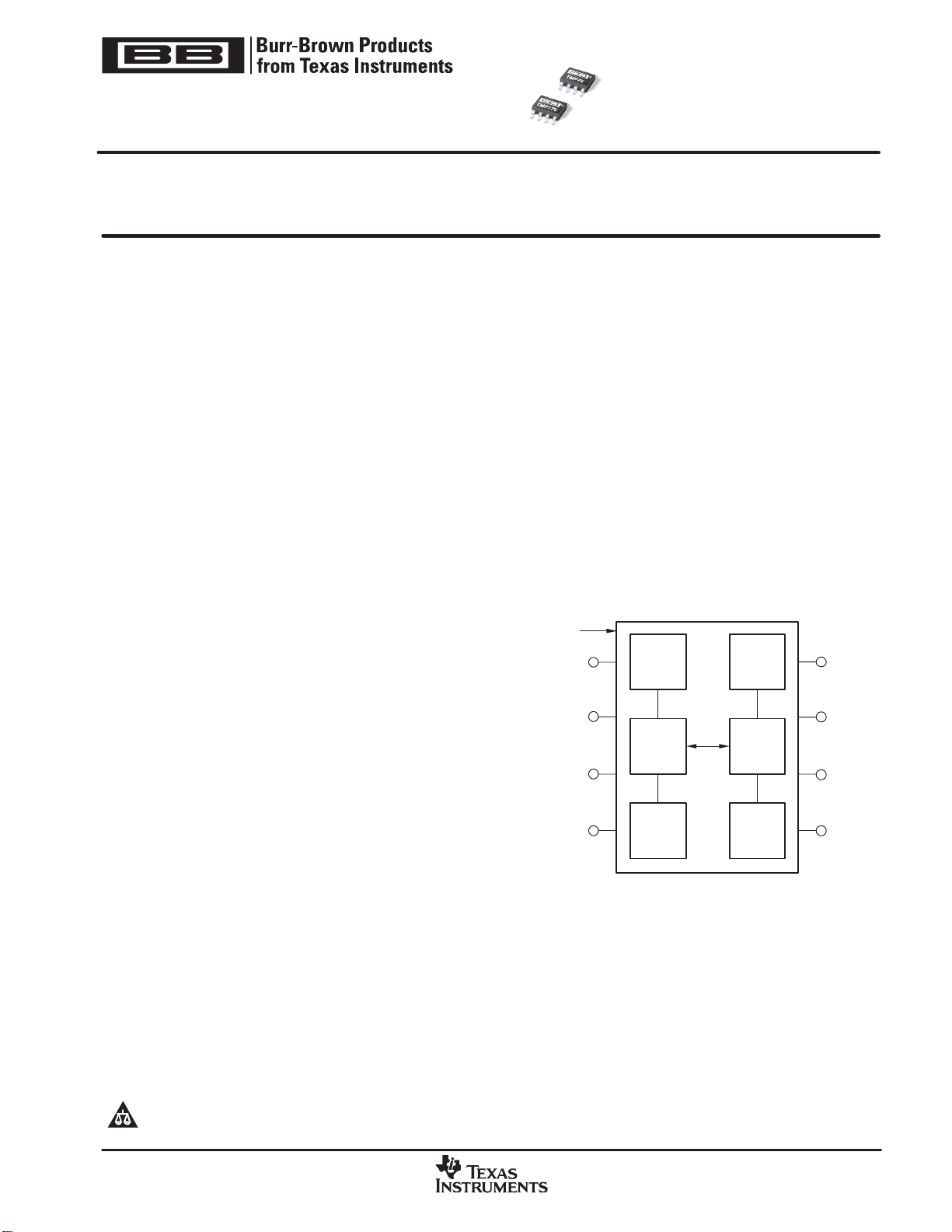

FEATURES
D 27 ADDRESSES (TMP175)
8 ADDRESSES (TMP75)
D DIGITAL OUTPUT: Two-Wire Serial Interface
D RESOLUTION: 9- to 12-Bits, User-Selectable
D ACCURACY:
±1.5°C (max) from −25°C to +85°C
±2.0°C (max) from −40°C to +125°C
D LOW QUIESCENT CURRENT:
50µA, 0.1µA Standby
D WIDE SUPPLY RANGE: 2.7V to 5.5V
D SMALL SO-8 AND MSOP-8 PACKAGES
APPLICATIONS
D POWER-SUPPLY TEMPERATURE
MONITORING
D COMPUTER PERIPHERAL THERMAL
PROTECTION
D NOTEBOOK COMPUTERS
D CELL PHONES
D BATTERY MANAGEMENT
D OFFICE MACHINES
D THERMOSTAT CONTROLS
D ENVIRONMENTAL MONITORING AND HVAC
D ELECTROMECHANICAL DEVICE
TEMPERATURE
DESCRIPTION
The TMP175 and TMP75 are two-wire, serial output
temperature sensors available in SO-8 and MSOP-8
packages. Requiring no external components, the
TMP175 and TMP75 are capable of reading temperatures
with a resolution of 0.0625°C.
The TMP175 and TMP75 feature a Two-Wire interface that
is SMBus-compatible, with the TMP175 allowing up to 27
devices on one bus and the TMP75 allowing up to eight
devices on one bus. The TMP175 and TMP75 both feature
an SMBus Alert function.
The TMP175 and TMP75 are ideal for extended
temperature measurement in a variety of communication,
computer, consumer, environmental, industrial, and
instrumentation applications.
The TMP175 and TMP75 are specified for operation over
a temperature range of −40°C to +125°C.
Diode
Temp.
Sensor
∆Σ
A/D
Converter
OSC
Control
Logic
Serial
Interface
Config.
and Temp.
Register
TMP175, TMP75
Temperature
ALERT
SDA
1
3
4
8
6
5
GND
V+
A1
SCL
27
A0
A2
TMP175
TMP75
SBOS288I − JANUARY 2004 − REVISED JUNE 2006
Digital Temperature Sensor
with Two-Wire Interface
! !
www.ti.com
Copyright 2004−2006, Texas Instruments Incorporated
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments
semiconductor products and disclaimers thereto appears at the end of this data sheet.
All trademarks are the property of their respective owners.
