TMP302ADRLT数据手册
Page:
of 12 Go
若手册格式错乱，请下载阅览PDF原文件

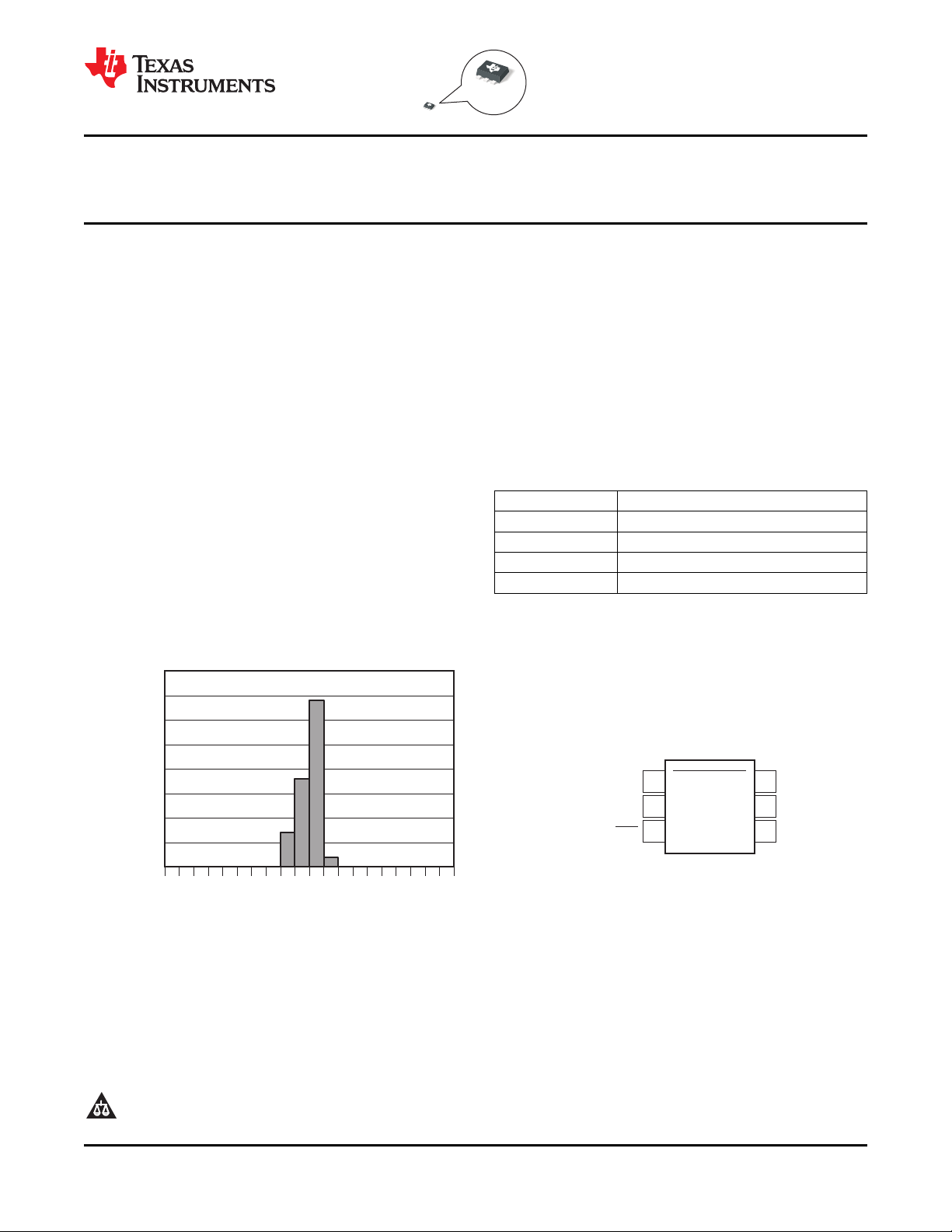

SOT563
1
2
3
6
5
4
TRIP
SET1
V
S
HYST
SET
TRIP
SET0
GND
OUT
DRLPACKAGE
SOT563-6
(TOPVIEW)
40
35
30
25
20
15
10
5
0
Population
-1.0
-0.9
-0.8
-0.7
-0.6
-0.5
-0.4
-0.3
-0.2
-0.1
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
Accuracy( )C°
TRIPTHRESHOLDACCURACY
TMP302A
,
TMP302B
TMP302C
,
TMP302D
www.ti.com
................................................................................................................................................ SBOS488A –JUNE 2009–REVISED SEPTEMBER 2009
Easy-to-Use, Low-Power, Low-Supply
TEMPERATURE SWITCH in MicroPackage
Check for Samples: TMP302A TMP302B TMP302C TMP302D
1
FEATURES
DESCRIPTION
2
• LOW POWER: 15μA (max)
The TMP302x is a temperature switch in a
micropackage (SOT563). The TMP302x offers low
• SOT563 PACKAGE: 1,6mm x 1,6mm x 0,6mm
power (15μA max) and ease-of-use through
• TRIP-POINT ACCURACY: ±0.2°C (typ) from
pin-selectable trip points and hysteresis.
+40°C to +125°C
These devices require no additional components for
• PIN-SELECTABLE TRIP POINTS
operation; they can function independent of
• OPEN-DRAIN OUTPUT
microprocessors or microcontrollers.
• SELECTABLE HYSTERESIS: 5°C/10°C
The TMP302x is available in several different
• LOW SUPPLY VOLTAGE RANGE: 1.4V to 3.6V
versions. For additional trip points, contact a TI
representative.
APPLICATIONS
TMP302 Available Versions
(1)
• CELL PHONE HANDSETS
DEVICE SELECTABLE TRIP POINTS (°C)
• PORTABLE MEDIA PLAYERS
TMP302A 50, 55, 60, 65
• CONSUMER ELECTRONICS
TMP302B 70, 75, 80, 85
• SERVERS
TMP302C 90, 95, 100, 105
• POWER-SUPPLY SYSTEMS
TMP302D 110, 115, 120, 125
• DC-DC MODULES
• THERMAL MONITORING
(1) For other available trip points, please contact a TI
• ELECTRONIC PROTECTION SYSTEMS representative.
1
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas
Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
2All trademarks are the property of their respective owners.
PRODUCTION DATA information is current as of publication date.
Copyright © 2009, Texas Instruments Incorporated
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
