150
TMP709
VCC
GND HYST
SET
OT
Microprocessor
VCC
GND
R
SET
470 k
2.7 V to 5.5 V
0.1 …F
Copyright © 2016, Texas Instruments Incorporated
Product
Folder
Sample &
Buy
Technical
Documents
Tools &
Software
Support &
Community
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
TMP709
SBOS583B –DECEMBER 2011–REVISED DECEMBER 2016
TMP709 Resistor-Programmable Temperature Switch in SOT Package
1
1 Features
1
• Threshold Accuracy:
– ±0.5°C Typical
– ±3°C Maximum (60°C to 100°C)
• Temperature Threshold Set By 1% External
Resistor
• Low Quiescent Current: 40 μA Typical
• Open-Drain, Active-Low Output Stage
• Pin-Selectable 2°C or 10°C Hysteresis
• Reset Operation Specified at V
CC
= 0.8 V
• Supply Range: 2.7 V to 5.5 V
• Package: 5-Pin SOT-23
2 Applications
• Computers (Laptops and Desktops)
• Servers
• Industrial and Medical Equipment
• Storage Area Networks
• Automotive
3 Description
The TMP709 is a fully-integrated, resistor-
programmable temperature switch with a temperature
threshold that is set by just one external resistor
within the entire operating range. The TMP709
provides an open-drain, active-low output and has a
2.7-V to 5.5-V supply-voltage range.
The temperature threshold accuracy is typically
±0.5°C, with a maximum of ±3°C (60°C to 100°C).
The quiescent current consumption is typically 40 μA.
Hysteresis is pin-selectable to 2°C or 10°C.
The TMP709 is available in a 5-pin, SOT-23 package.
Device Information
(1)
PART NUMBER PACKAGE BODY SIZE (NOM)
TMP709 SOT-23 (5) 2.90 mm x 1.60 mm
(1) For all available packages, see the package option addendum
at the end of the datasheet.

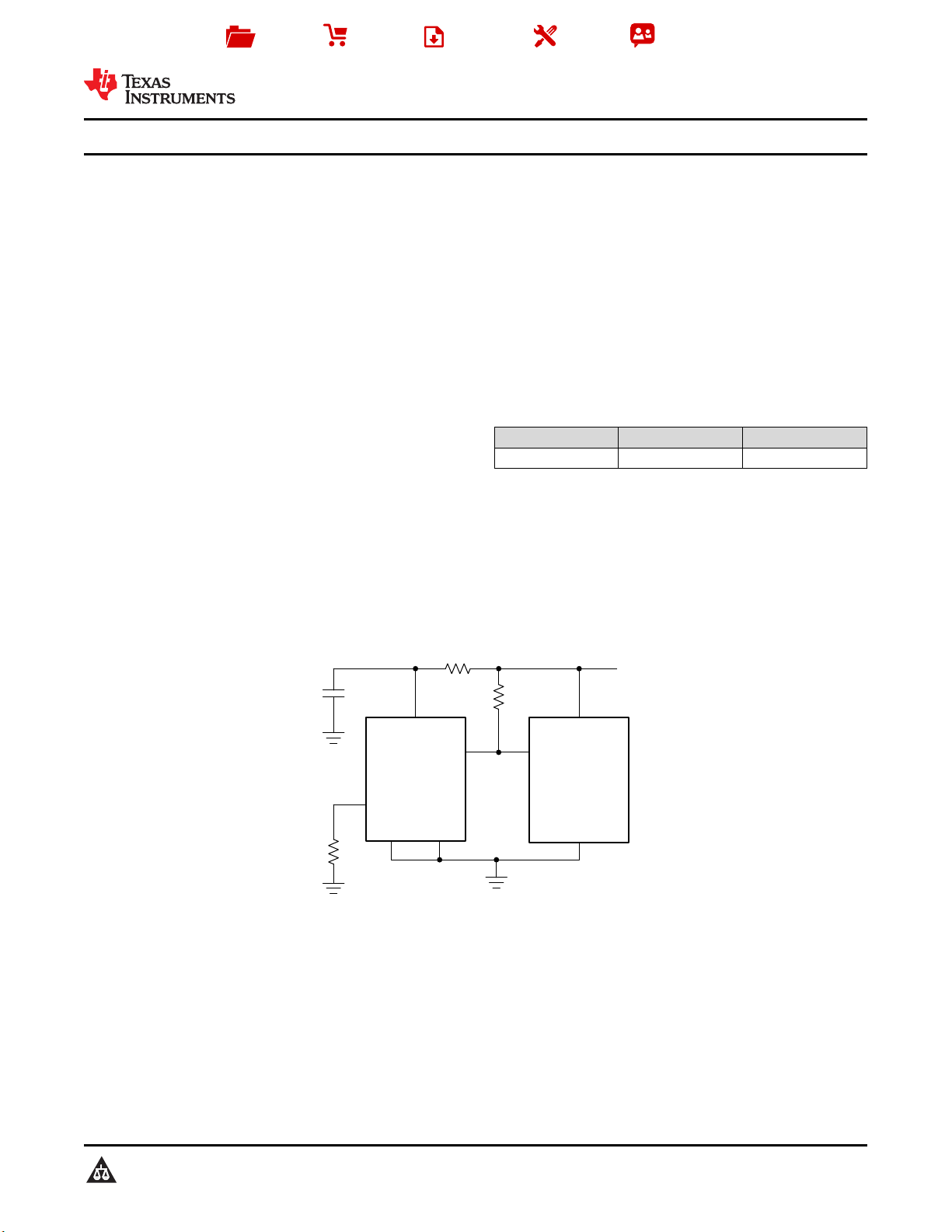

Typical Application
