PREFIX
TMX = Experimental Device
TMP = Prototype Device
TMS = Qualified Device
DEVICE FAMILY
320 = TMS320 DSP Family
PACKAGE TYPE
TECHNOLOGY
F = Flash EEPROM
(1.8-V or 1.9-V Core; 3.3-V I/O)
(1.8-V or 1.9-V Core; 3.3-V I/O)
C = ROM
DEVICE
TMS
320
2812
GHH
F A
2810
2811
2812
TEMPERATURE RANGE
A
S
Q
–40°C to 85°C
–40°C to 125°C
–40°C to 125°C (Q100 Qualification)
=
=
=
PBK
PGF
GHH
ZHH
128-Pin Low-Profile Quad Flatpack (LQFP)
176-Pin LQFP
179-Ball MicroStar BGA
179-Ball Lead-Free MicroStar BGA
=
=
=
=
LOT TRACE CODE
DSP
TMS
CA−26ACRCW
320F2812GHHA
SILICON REVISION
www.ti.com
Device Markings
3 Device Markings

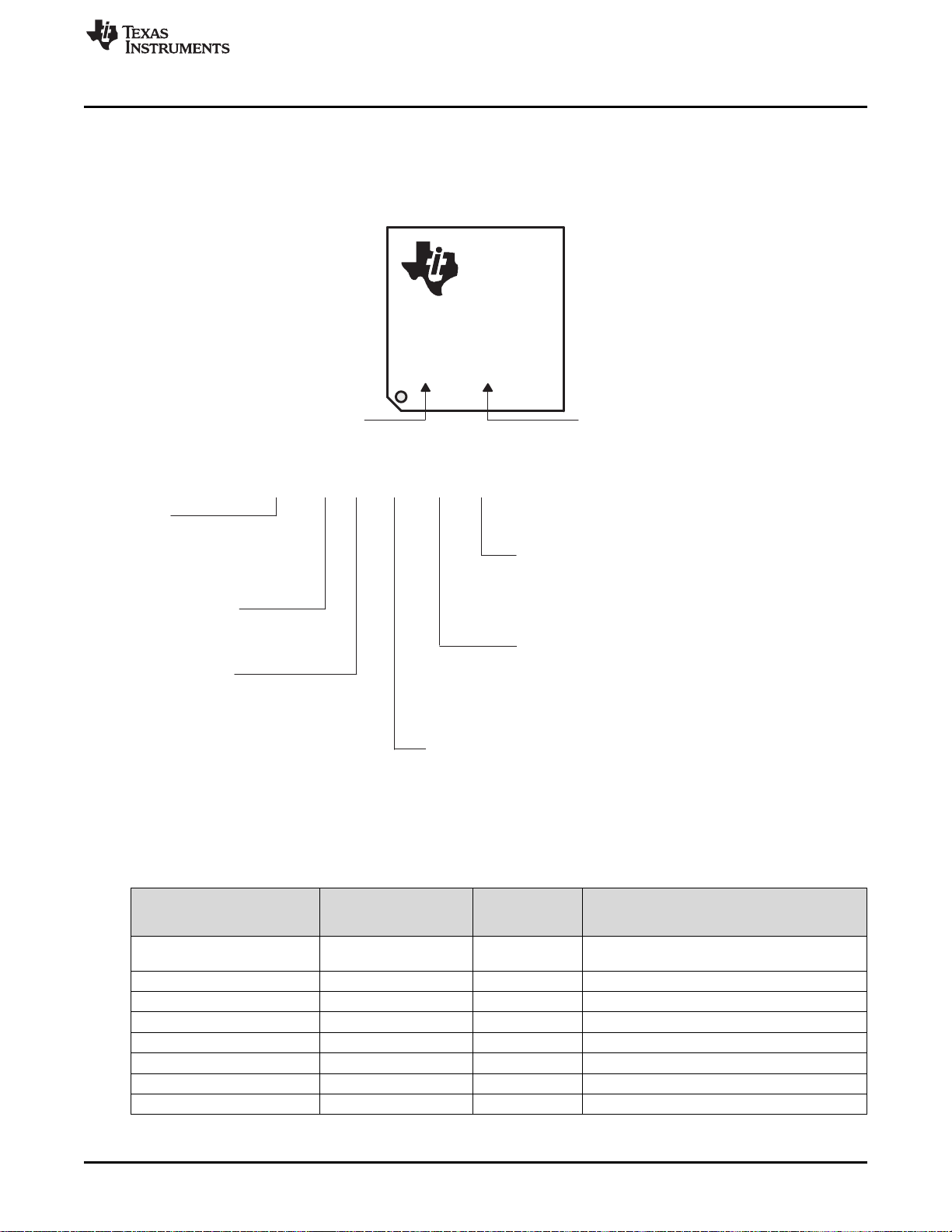

Figure 1 provides an example of the TMS320F281x device markings and defines each of the markings.
The device revision can be determined by the symbols marked on the top of the package as shown in
Figure 1. Some prototype devices may have markings different from those illustrated. Figure 2 shows an
example of device nomenclature.
Figure 1. Example of Device Markings
Figure 2. Example of Device Nomenclature
Table 1. Determining Silicon Revision From Lot Trace Code (F281x)
SECOND LETTER
REVISION ID
IN PREFIX OF SILICON REVISION COMMENTS
Address: 0x0883
LOT TRACE CODE
Blank Indicates Revision 0 0x0000 This silicon revision is available as TMX only.
(no second letter in prefix)
A Indicates Revision A 0x0001 This silicon revision is available as TMX only.
B Indicates Revision B 0x0002 Internal
C Indicates Revision C 0x0003 TMP/TMX/TMS
D Indicates Revision D 0x0003 Internal
E Indicates Revision E 0x0005 Production device (TMS)
F Indicates Revision F 0x0006 Internal
G Indicates Revision G 0x0007 Production device (TMS)
5
SPRZ193N–January 2003–Revised November 2015 TMS320F281x, TMS320C281x Silicon Errata
Submit Documentation Feedback
Copyright © 2003–2015, Texas Instruments Incorporated
