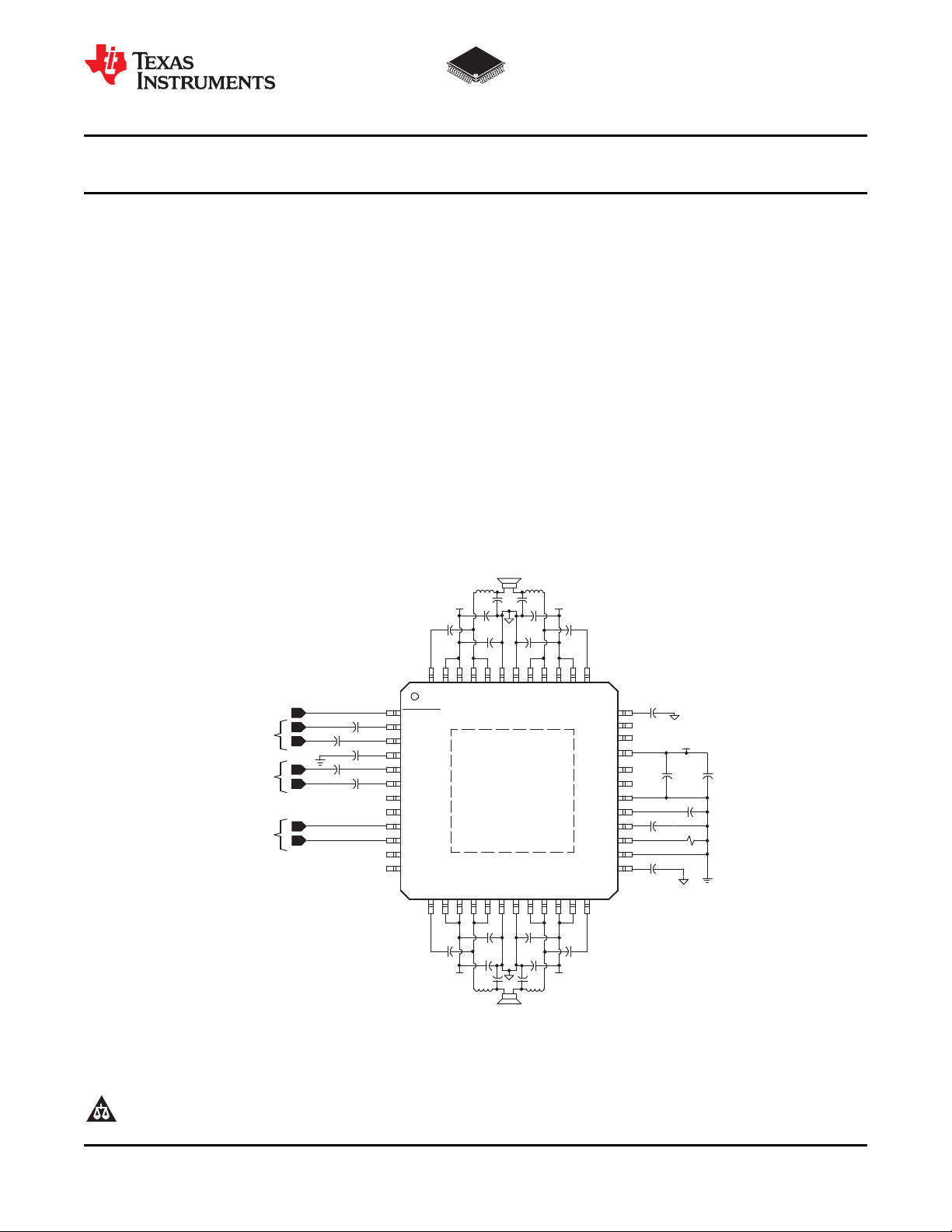

10 µF
220 nF 220 nF
PVCC PVCC
220 nF 220 nF
PVCC PVCC
220 pF
Left Differential
Inputs
Right Differential
Inputs
Shutdown/Mute
Gain
Control
BSLP
PVCCL
PVCCL
LOUTP
LOUTP
PGNDL
PGNDL
LOUTN
LOUTN
PVCCL
PVCCL
BSLN
TPA3005D2
VCLAMPR
SHUTDOWN
V2P5
RINP
LINN
LINP
AVDDREF
NC
GAIN0
GAIN1
NC
NC
AVDD
AGND
COSC
ROSC
AVCC
VCLAMPL
BSRP
PVCCR
PVCCR
ROUTP
ROUTP
PGNDR
PGNDR
ROUTN
ROUTN
PVCCR
PVCCR
BSRN
RINN
AVCC
AGND
10 µF
0.1 µF
0.1 µF
0.47 µF
0.47 µF
0.47 µF
0.47 µF
0.47 µF
0.1 µF
0.1 µF
10 µF
10 µF
1 µF
120 kΩ
1 µF
NC
NC
NC
NC
0.1 µF
10 µF
1 µF
Control
†Optimal output filter for EMI suppression
†
TPA3005D2
www.ti.com
SLOS427A –MAY 2004–REVISED AUGUST 2010
6-W STEREO CLASS-D AUDIO POWER AMPLIFIER
Check for Samples: TPA3005D2
1
FEATURES
DESCRIPTION
2
• 6-W/Ch Into an 8-Ω Load From a 12-V Supply
• Up to 92% Efficient, Class-D Operation
The TPA3005D2 is a 6-W (per channel) efficient,
Class-D audio amplifier for driving bridged-tied stereo
Eliminates Need For Heatsinks
speakers. The TPA3005D2 can drive stereo speakers
• 8.5-V to 18-V Single-Supply Operation
as low as 8 Ω. The high efficiency of the TPA3005D2
• Four Selectable, Fixed Gain Settings
eliminates the need for external heatsinks when
• Differential Inputs Minimizes Common-Mode playing music.
Noise
The gain of the amplifier is controlled by two gain
• Space-Saving, Thermally Enhanced
select pins. The gain selections are 15.3, 21.2, 27.2,
PowerPAD™ Packaging
and 31.8 dB.
• Thermal Protection and Short Circuit
The outputs are fully protected against shorts to
GND, VCC, and output-to-output shorts. Thermal
• Pinout Similar to TPA3002D2, TPA3003D2,
protection ensures the maximum junction
and TPA3004D2
temperature is not exceeded.
APPLICATIONS
• LCD Monitors and TVs
• All-In-One PCs
1
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas
Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
2PowerPAD is a trademark of Texas Instruments.
PRODUCTION DATA information is current as of publication date.
Copyright © 2004–2010, Texas Instruments Incorporated
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
