IO1
IO2 IO3 IO4
GND
Connector
System
IO1 IO2
GND
IO3
IO4
Product
Folder
Sample &
Buy
Technical
Documents
Tools &
Software
Support &
Community
TPD4E1B06
SLVSBQ8C –DECEMBER 2012–REVISED JULY 2014
TPD4E1B06 4-Channel Ultra Low Leakage ESD Protection Device
1 Features 3 Description
The TPD4E1B06 is a 4-channel bi-directional
1
• Ultra Low Leakage Current 0.5 nA (Max)
Transient Voltage Suppressor (TVS) diode array. This
• Transient Protection for 4 I/O Lines
device features ultra low leakage current (0.5 nA) for
– IEC 61000-4-2 Contact Discharge ±12 kV
precision analog measurements. The ±12 kV contact
and ±15 kV air gap ESD protection exceeds IEC
– IEC 61000-4-2 Air-Gap Discharge ±15 kV
61000-4-2 level 4 requirements. The TPD4E1B06's
– IEC 61000-4-5 Surge 3.0 A (8/20 µs)
0.7 pF line capacitance makes it suitable for precision
• I/O Capacitance 0.7 pF (Typ)
analog, USB2.0, Ethernet, SATA, LVDS, and 1394
interfaces.
• Bi-directional TVS Diode Array
• Low ESD Clamping Voltage
Device Information
(1)
• Industrial Temperature Range: –40°C to 125°C
PART NUMBER PACKAGE BODY SIZE (NOM)
• Small, Easy-to-Route DRL and DCK Packages
SC70 (6) 2.00 mm × 2.10 mm
TPD4E1B06
SOT (6) 1.60 mm x 1.60 mm
2 Applications
(1) For all available packages, see the orderable addendum at
• Glucose Meter
the end of the datasheet.
• Tablets
• GPS
• Portable Media Players
• TV
• Set-top Box

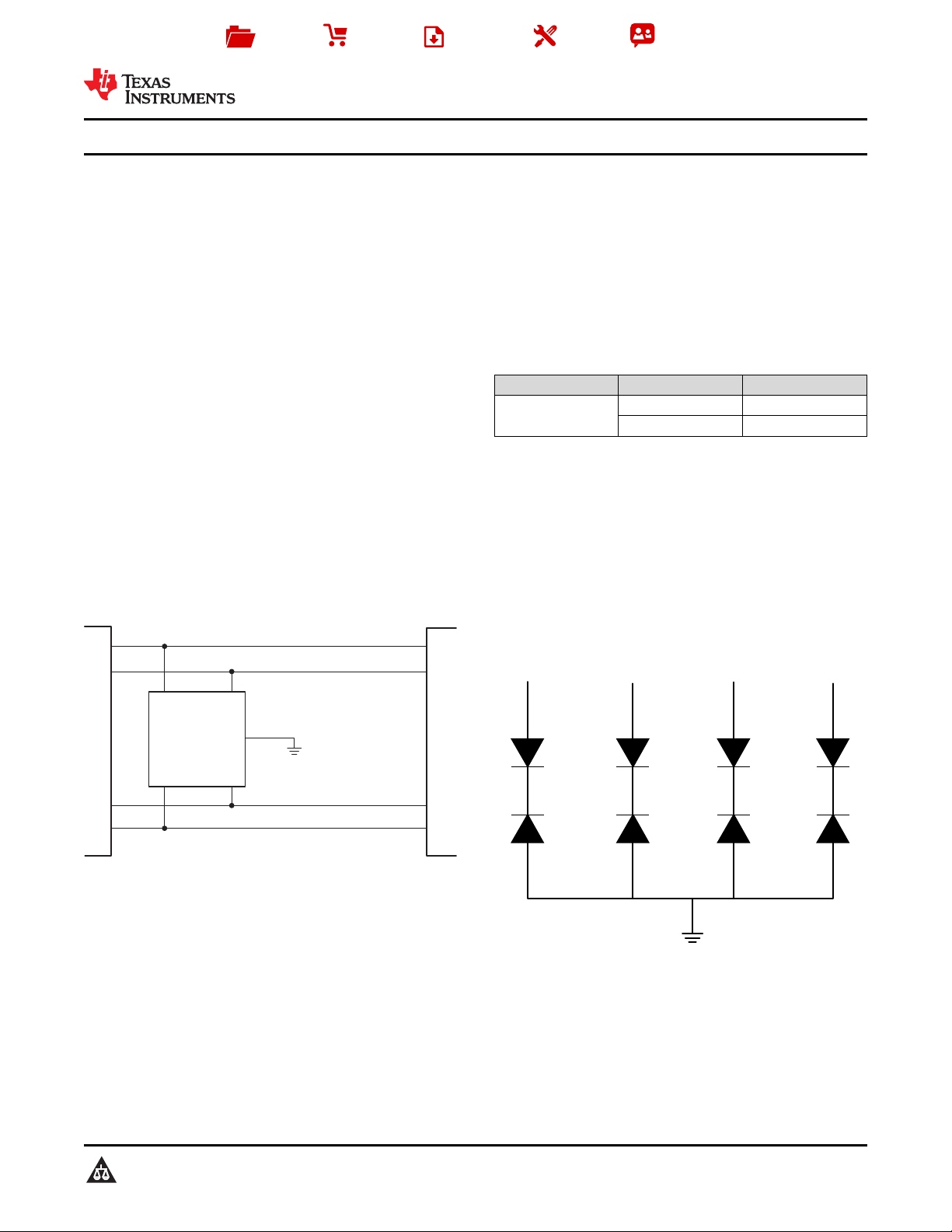

4 Simplified Schematic
Functional Block Diagram
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
