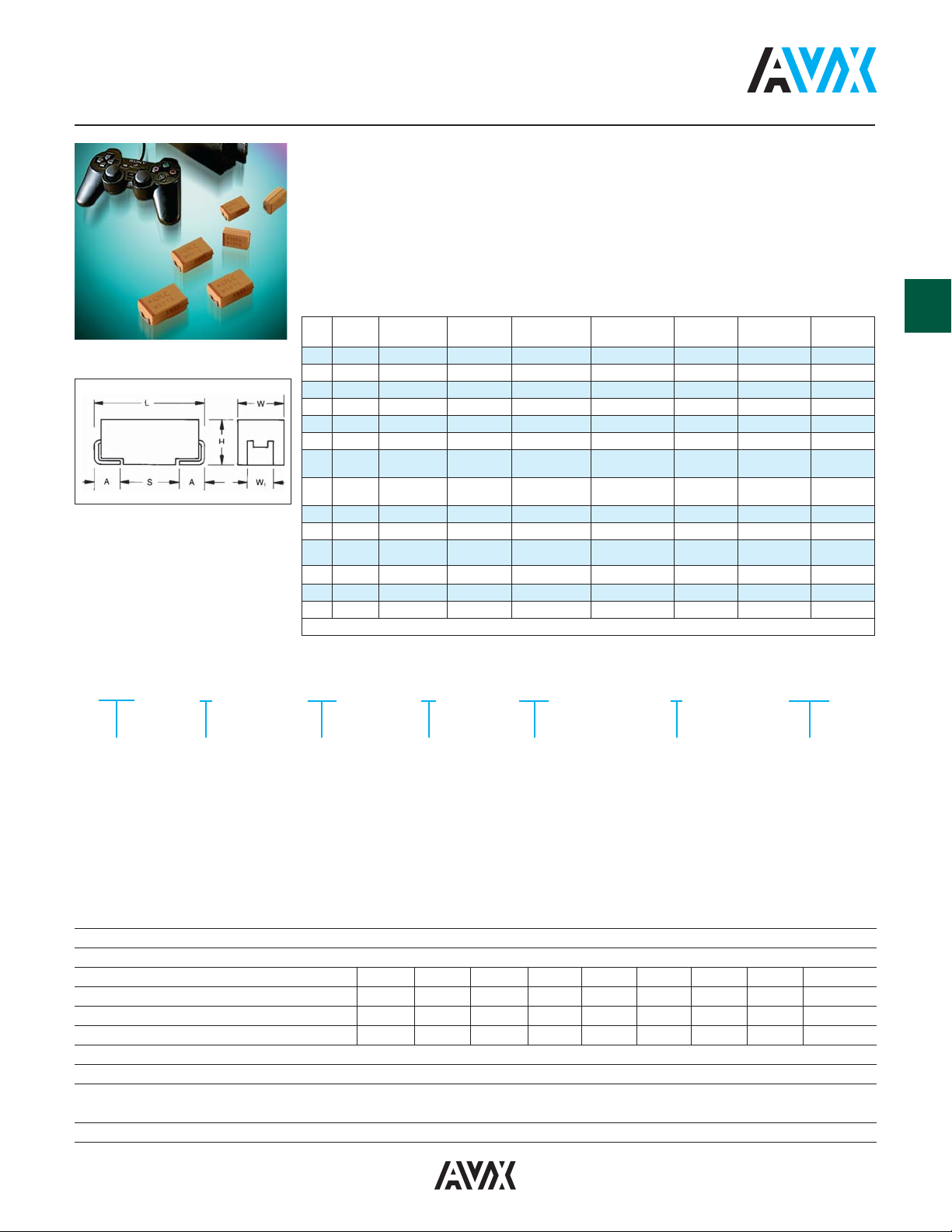

TPS Series
Low ESR
HOW TO ORDER
TPS surface mount products have inher-
ently low ESR (equivalent series resistance)
and are capable of higher ripple current
handling, producing lower ripple voltages,
less power and heat dissipation than stan-
dard product for the most efficient use of
circuit power. TPS has been designed,
manufactured, and preconditioned for
optimum performance in typical power
supply applications. By combining the
latest improvements in tantalum powder
technology, improved manufacturing
processes, and application specific pre-
conditioning tests, AVX is able to provide a
technologically superior alternative to the
standard range.
Technical Data: All technical data relate to an ambient temperature of +25°C
Capacitance Range: 0.15 μF to 1500 μF
Capacitance Tolerance: ±10%; ±20%
Rated Voltage (V
R
) +85°C: 2.5 4 6.3 10 16 20 25 35 50
Category Voltage (V
C
) +125°C: 1.7 2.7 4 7 10 13 17 23 33
Surge Voltage (V
S
) +85°C: 3.3 5.2 8 13 20 26 32 46 65
Surge Voltage (V
S
) +125°C: 2.2 3.4 5 8 13 16 20 28 40
Temperature Range: -55°C to +125°C
Environmental Classification: 55/125/56 (IEC 68-2)
Reliability: 1% per 1000 hours at 85°C, V
R
with 0.1Ω/V series impedance,
60% confidence level
Meets requirements of AEC-Q200
TECHNICAL SPECIFICATIONS
CASE DIMENSIONS:
millimeters (inches)
Code
EIA Dimension L±0.20 W+0.20 (0.008) H+0.20 (0.008) W
1
±0.20 A+0.30 (0.012)
S Min.
Code Low Profile (0.008) -0.10 (0.004) -0.10 (0.004) (0.008) -0.20 (0.008)
A 3216-18 – 3.20 (0.126) 1.60 (0.063) 1.60 (0.063) 1.20 (0.047) 0.80 (0.031) 1.10 (0.043)
B 3528-21 – 3.50 (0.138) 2.80 (0.110) 1.90 (0.075) 2.20 (0.087) 0.80 (0.031) 1.40 (0.055)
C 6032-28 – 6.00 (0.236) 3.20 (0.126) 2.6 (0.102) 2.20 (0.087) 1.30 (0.051) 2.90 (0.114)
D 7343-31 – 7.30 (0.287) 4.30 (0.169) 2.90 (0.114) 2.40 (0.094) 1.30 (0.051) 4.40 (0.173)
E 7343-43 – 7.30 (0.287) 4.30 (0.169) 4.10 (0.162) 2.40 (0.094) 1.30 (0.051) 4.40 (0.173)
F 6032-20 C Case (2.00) 6.00 (0.236) 3.20 (0.126) 2.00 (0.079) 2.20 (0.087) 1.30 (0.051) 2.90 (0.114)
P
2012-15
-
2.05 (0.081) 1.35 (0.053)
1.50 (0.059) 1.0 ±0.1
0.50 (0.020) 0.85 (0.033)
max.
(0.039 ±0.004)
R 2012-12 R Case (1.20) 2.05 (0.081) 1.30 (0.051)
1.20 (0.047) 1.0 ±0.1
0.50 (0.020) 0.85 (0.033)
max. (0.039 ±0.004)
S 3216-12 A Case (1.20) 3.20 (0.126) 1.60 (0.063) 1.20 (0.047) max. 1.20 (0.047) 0.80 (0.031) 1.10 (0.043)
T 3528-12 B Case (1.20) 3.50 (0.138) 2.80 (0.110) 1.20 (0.047) max. 2.20 (0.087) 0.80 (0.031) 1.40 (0.055)
V
7361-38
– 7.30 (0.287) 6.10 (0.240)
3.45 ±0.30
3.10 (0.120) 1.40 (0.055) 4.40 (0.173)
(0.136 ±0.012)
W 6032-15 C Case (1.50) 6.00 (0.236) 3.20 (0.126) 1.50 (0.059) max. 2.20 (0.087) 1.30 (0.051) 2.90 (0.114)
X
7343-15 D Case (1.50) 7.30 (0.287) 4.30 (0.169) 1.50 (0.059) max. 2.40 (0.094) 1.30 (0.051) 4.40 (0.173)
Y 7343-20 D Case (2.00) 7.30 (0.287) 4.30 (0.169) 2.00 (0.079) max. 2.40 (0.094) 1.30 (0.051) 4.40 (0.173)
W1 dimension applies to the termination width for A dimensional area only.
For part marking see page 170
TPS
Type
C
Case Size
See table
above
107
Capacitor Code
pF code: 1st two
digits represent
significant figures,
3rd digit represents
multiplier (number of
zeros to follow)
M
Tolerance
K = ±10%
M = ±20%
010
Rated DC Voltage
002 = 2.5Vdc
004 = 4Vdc
006 = 6.3Vdc
010 = 10Vdc
016 = 16Vdc
020 = 20Vdc
025 = 25Vdc
035 = 35Vdc
050 = 50Vdc
R
Packaging
R = 7" T/R
(Lead Free since production
date 1/1/04)
S = 13" T/R
(Lead Free since production
date 1/1/04)
A = Gold Plating 7" Reel
B = Gold Plating 13" Reel
H = Tin Lead 7" Reel
(Contact Manufacturer)
K = Tin Lead 13" Reel
(Contact Manufacturer)
0100
Maximum ESR in
Milliohms
See note below
NOTE: The EIA & CECC standards for low ESR Solid Tantalum Capacitors
allow an ESR movement to 1.25 times catalog limit post mounting.
NOTE: The EIA & CECC standards for low ESR Solid Tantalum Capacitors
allow an ESR movement to 1.25 times catalog limit post mounting.
