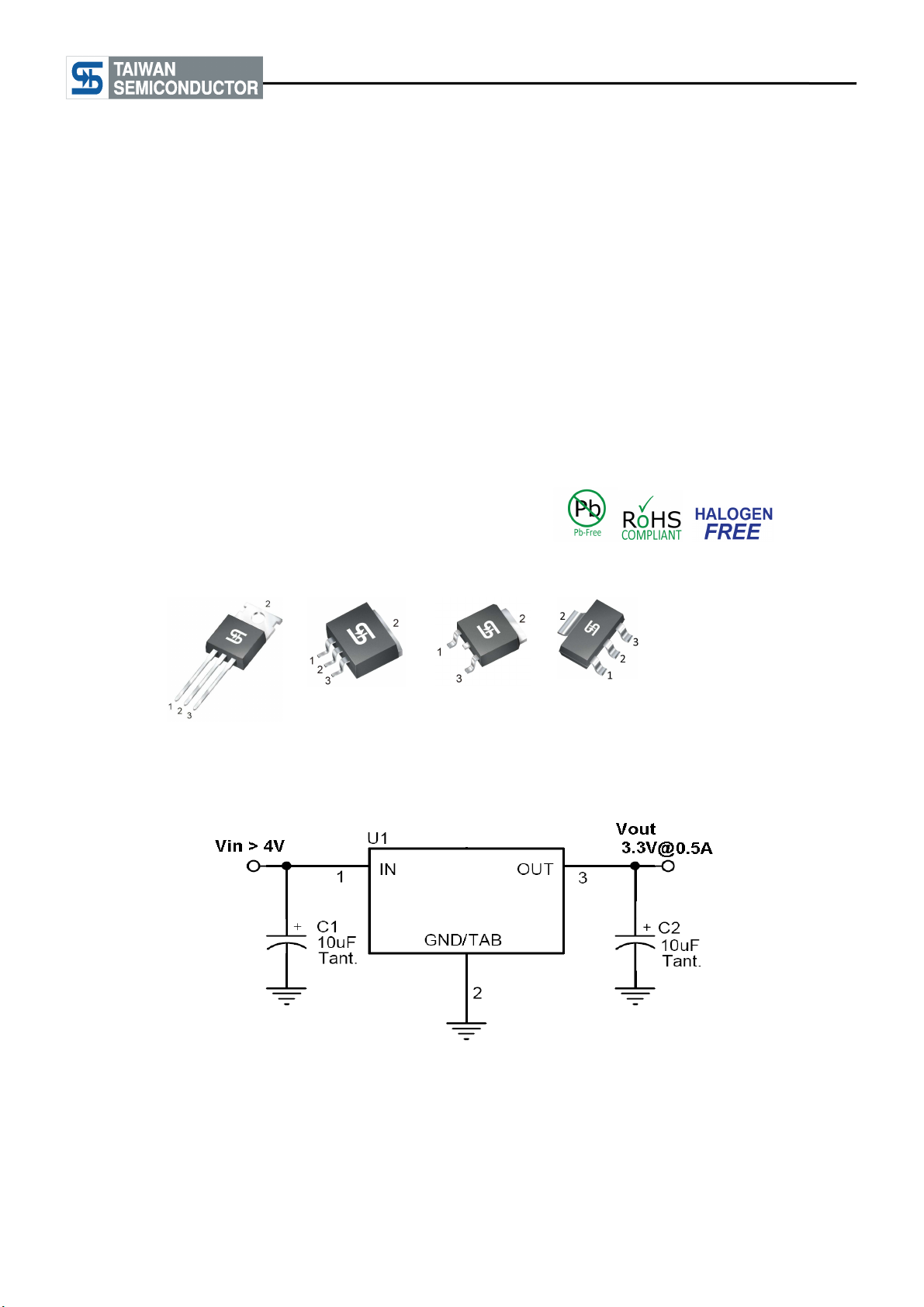

TS2937
Taiwan Semiconductor
Document Number: DS_P0000215 1 Version: E15
500mA Ultra Low Dropout Voltage Regulator
DESCRIPTION
TS2937 of fixed-voltage monolithic micro-power voltage
regulators is designed for a wide range of applications.
This device excellent choice of use in battery-power
application. Furthermore, the quiescent current
increases on slightly at dropout, which prolongs battery
life. This series of fixed-voltage regulators features very
low ground current (200uA Typ.) and very low drop
output voltage (Typ. 60mV at light load and 600mV at
500mA). This includes a tight initial tolerance of 2%,
extremely good line regulation of 0.05% typ., and very
low output temperature coefficient.
FEATURES
● Dropout voltage typically 0.6V @ Io=500mA
● Output voltage trimmed before assembly
● -18V Reverse peak voltage
● +30V Input over voltage protection
● +60V Transient peak voltage
● Internal current limit
● Thermal shutdown protection
APPLICATION
● Post Regulator for SMPS
● Industrial Instrumentation
TO
-
220
TO
-
263 (D
2
PAK)
TO
-
252 (DPAK)
SOT
-
223
Pin
Definition
:
1. Input
2. Ground
3. Output
Notes: Moisture sensitivity level: level 3. Per J-STD-020
TYPICAL APPLICATION CIRCUIT
