TS3USB221ARSER 其他数据使用手册 - TI（德州仪器）
制造商:
TI（德州仪器）
分类:
模拟开关芯片
封装:
UQFN-10
描述:
TEXAS INSTRUMENTS TS3USB221ARSER 芯片, 总线开关, ESD, USB 2.0, 10QFN
Pictures:
3D模型
符号图
焊盘图
引脚图
产品图
页面导航:
封装尺寸在P12P13P14
封装信息在P12P13P14
应用领域在P17
导航目录
TS3USB221ARSER数据手册
Page:
of 18 Go
若手册格式错乱，请下载阅览PDF原文件
1
FEATURES
1
10
2
9
3
8
4
7
V
CC
S
D+
D–
OE
1D+
1D–
2D+
2D–
GND
5
6
APPLICATIONS
DESCRIPTION
1
10
2
9
3
8
4
7
V
CC
S
D+
D–
OE
1D+
1D–
2D+
2D–
GND
5
6
TS3USB221A
www.ti.com
.......................................................................................................................................................................................... SCDS277 – NOVEMBER 2008
ESD PROTECTED, HIGH-SPEED USB 2.0 (480-Mbps)
1:2 MULTIPLEXER/DEMULTIPLEXER SWITCH WITH SINGLE ENABLE

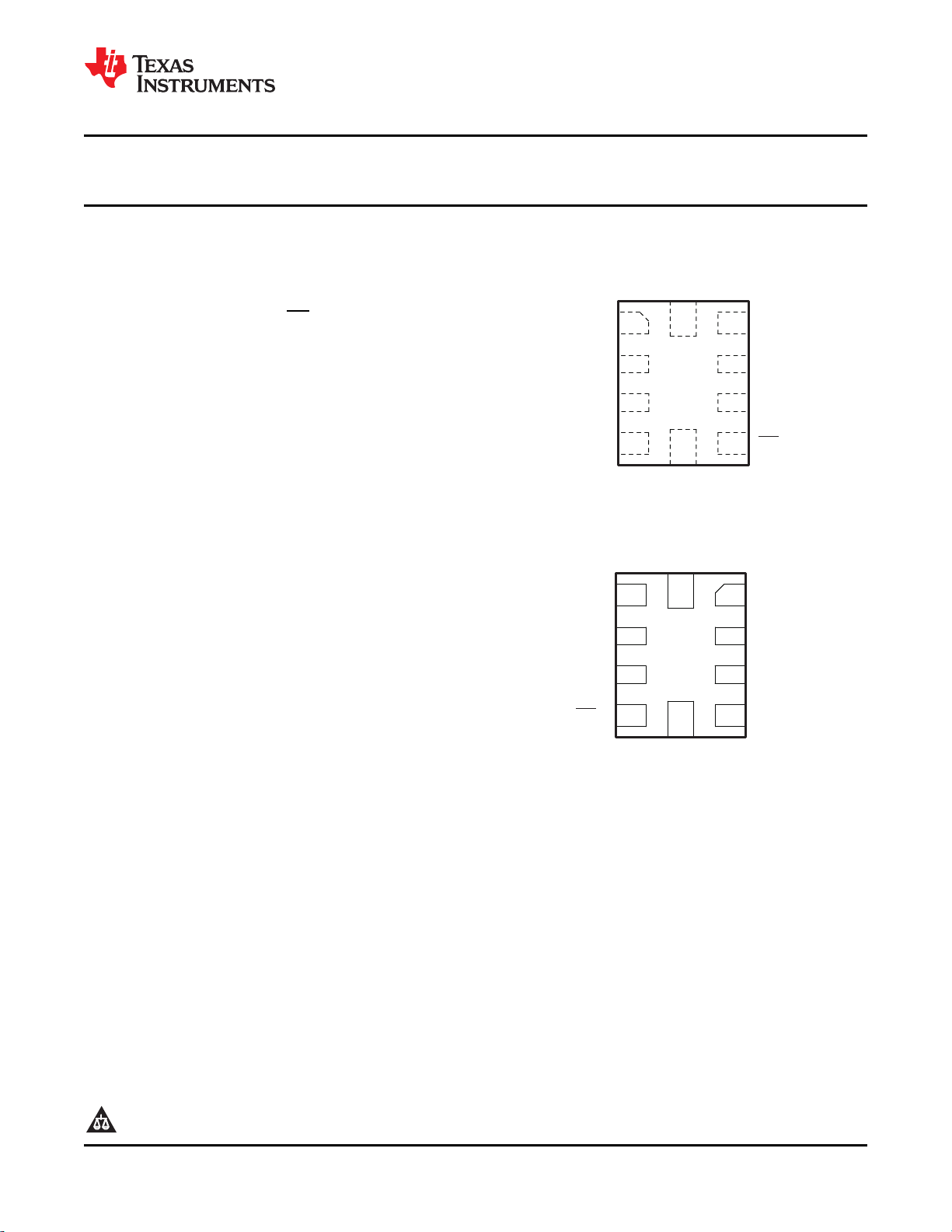

RSE PACKAGE
• V
CC
Operation at 2.5 V to 3.3 V
(TOP VIEW)
• V
I/O
Accepts Signals Up to 5.5 V
• 1.8-V Compatible Control-Pin Inputs
• Low-Power Mode When OE Is Disabled (1 µ A)
• r
ON
= 6 Ω Maximum
• Δ r
ON
= 0.2 Ω Typical
• C
io(on)
= 6 pF Typical
• Low Power Consumption (30 µ A Maximum)
• High Bandwidth (900 MHz Typical)
• Latch-Up Performance Exceeds 100 mA
Per JESD 78, Class II
• ESD Performance Tested Per JESD 22
RSE PACKAGE
– 7000-V Human-Body Model
(BOTTOM VIEW)
(A114-B, Class II)
– 1000-V Charged-Device Model (C101)
• ESD Performance I/O to GND
– 12-kV Human-Body Model
• Routes Signals for USB 1.0, 1.1, and 2.0
The TS3USB221A is a high-bandwidth switch
specially designed for the switching of high-speed
USB 2.0 signals in handset and consumer
applications, such as cell phones, digital cameras,
and notebooks with hubs or controllers with limited
USB I/Os. The wide bandwidth (900 MHz) of this
switch allows signals to pass with minimum edge and
phase distortion. The device multiplexes differential
outputs from a USB host device to one of two
corresponding outputs. The switch is bidirectional and
offers little or no attenuation of the high-speed signals
at the outputs. It is designed for low bit-to-bit skew
and high channel-to-channel noise isolation, and is
compatible with various standards, such as
high-speed USB 2.0 (480 Mbps).
The TS3USB221A integrates ESD protection cells on
all pins, is available in a tiny µ QFN package (2.0 mm
× 1.5 mm) and is charaterized over the free air
temperature range from – 40 ° C to 85 ° C.
1
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas
Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PRODUCTION DATA information is current as of publication date.
Copyright © 2008, Texas Instruments Incorporated
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
