Copyright © 2016, Texas Instruments Incorporated
VREF9
2
16
1
15
10
5
4
DRVOUT
GND
CAI
VCC
OVP/EN
VAOUT
1.9 V
PKLMT
7.5 V REFERENCE
UVLO
16 V/10 V (UCC2817)
10.5 V/10 V (UCC2818)
VCC
3
OSCILLATOR
12
RT
14
CT
S Q
R
PWM
LATCH
+
t
PWM
CAOUT
+
t
+
t
+
t
SS
VOLTAGE
ERROR AMP
8.0 V
13
7
11VSENSE
VFF 8
IAC
6
MOUT
MIRROR
2:1
X
2
+
t
7.5 V
ENABLE
OVP
y
X
X
MULT
OSC
CLK
CLK
CURRENT
AMP
16 V (FOR UCC2817 ONLY)
+
t
0.33 V
ZERO POWER
R
+
t
Product
Folder
Sample &
Buy
Technical
Documents
Tools &
Software
Support &
Community
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
UCC2817
,
UCC2818
,
UCC3817
,
UCC3818
SLUS395K –FEBRUARY 2000–REVISED OCTOBER 2015
UCC2817, UCC2818, UCC3817 and UCC3818 BiCMOS Power Factor Pregulator
1
1 Features
1
• Controls Boost Preregulator to Near-Unity Power
Factor
• Limits Line Distortion
• World Wide Line Operation
• Over-Voltage Protection
• Accurate Power Limiting
• Average Current Mode Control
• Improved Noise Immunity
• Improved Feed-Forward Line Regulation
• Leading Edge Modulation
• 150-μA Typical Start-Up Current
• Low-Power BiCMOS Operation
• Up to 18-V Operation
• Frequency Range 6 kHz to 220 kHz
2 Applications
• PC Power
• Consumer Electronics
• Lighting
• Industrial Power Supplies
• IEC6100-3-2 Compliant Supplies Less Than
300 W
3 Description
The UCCx817 and UCCx818 family provides all the
functions necessary for active power factor-corrected
preregulators. The controller achieves near-unity
power factor by shaping the AC input line current
waveform to correspond to that of the AC input line
voltage. Average current mode control maintains
stable, low distortion sinusoidal line current.
Designed in Texas Instrument’s BiCMOS process,
the UCCx817 and UCCx818 offers new features such
as lower start-up current, lower power dissipation,
overvoltage protection, a shunt UVLO detect circuitry,
a leading-edge modulation technique to reduce ripple
current in the bulk capacitor, and an improved, low-
offset (±2-mV) current amplifier to reduce distortion at
light load conditions.
Device Information
(1)
PART NUMBER PACKAGE BODY SIZE (NOM)
UCC2817,
UCC2818,
UCC3817,
UCC3818
SOIC (16)
3.91 mm × 9.9 mm
7.5 mm × 10.3 mm
PDIP (16) 6.35 mm × 19.3 mm
(1) For all available packages, see the orderable addendum at
the end of the data sheet.

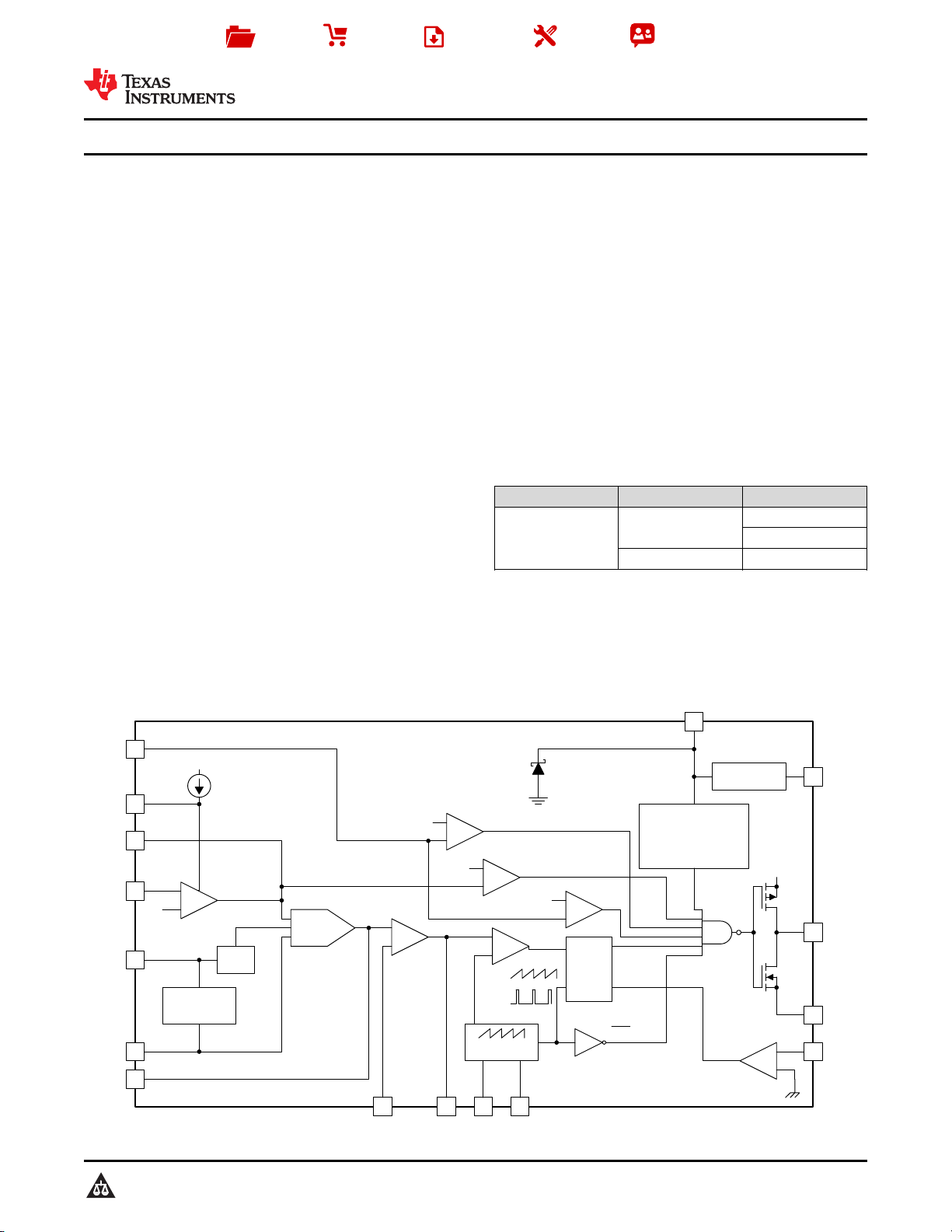

Block Diagram
