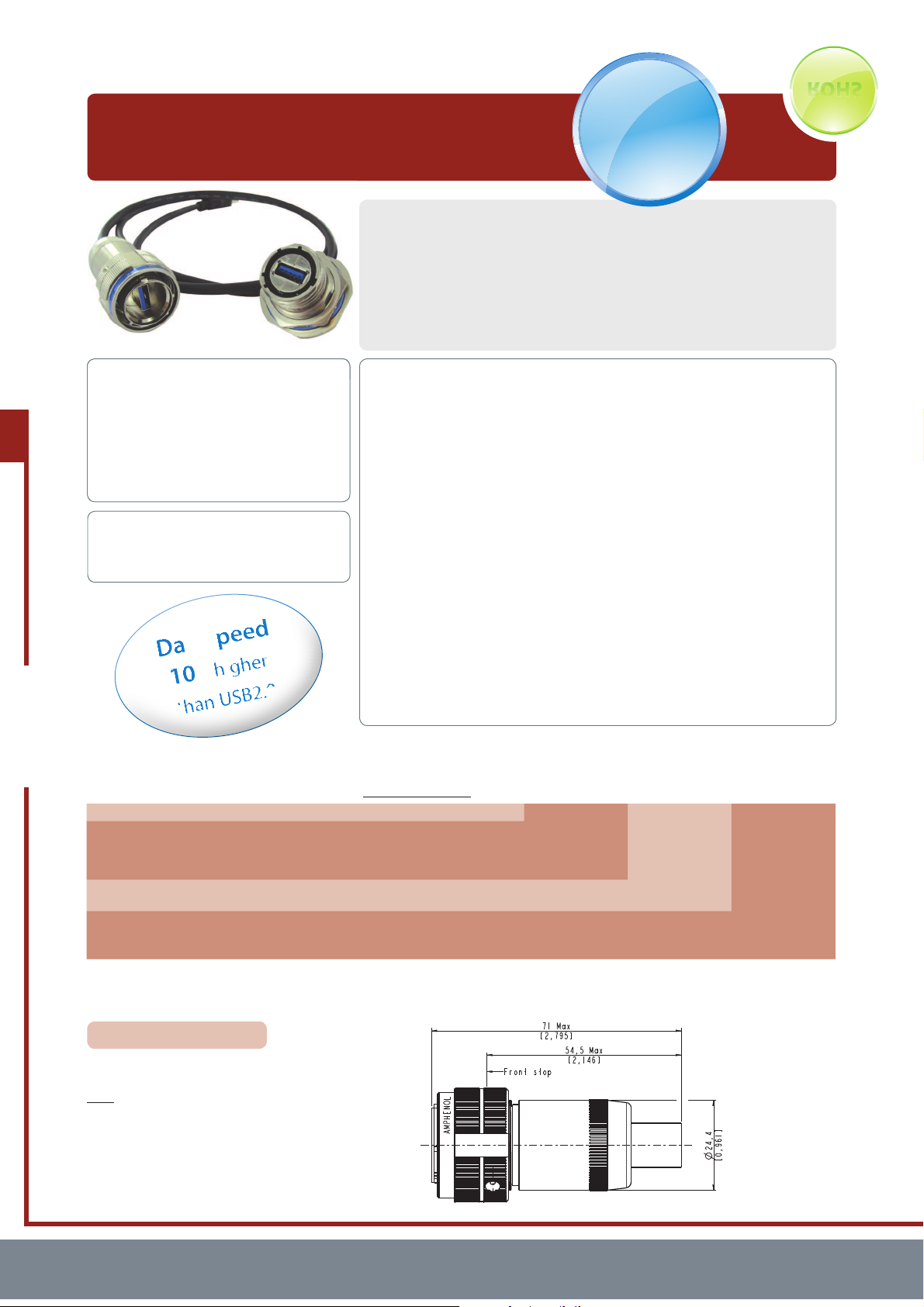

Amphenol
86
Applications
Embedded computers
Data acquisition and transmission in harsh
environment
Railways
Battelfield communication systems
Navy systems
USB3F TV (USB-A)
USB connection system for harsh environment
With USB Field, you can insert a standard USB 3.0 cordset into a metallic plug
which will protect it from shocks, dust and fluids.
No hazardous on-field cabling and grounding!
Also available a version including plug + cordset: see next page.
This metallic plug is connected into a receptacle, using a Tri Start Thread cou-
pling mechanism (MIL-DTL-38999 series III type) with anti-decoupling device
for high vibrations.
COMPLIANT
ROHS
N & BZ
Main characteristics
Sealed against fluids and dusts (IP68)
Shock, vibration and traction resistant
No cabling operation in field and no tools required
Improved EMI protection
Tri Start Thread coupling mechanism (MIL-DTL-38999 series III type) with
anti-decoupling device - Shell size 15
2 mechanical coding / polarization possibilities (receptacle insert rotation)
USB3F TV plug retention in the receptacle: 100 N in the axis
Mating cycles: 500 minimum
Environmental protection
Sealing (when mated): IP68 (temporary immersion)
Salt spray: 48 h with nickel plating
> 500 h with olive drab cadmium
500 h with marine bronze shell
Fire retardant / low smoke: UL94 V0 and NF F 16 101 & 16 102
Vibrations: 10 – 500 Hz, 10 g, 3 axes: no discontinuity > 1micro s
Shocks: IK06: weight of 250 g drop from 40 cm [15.75 in] onto connectors (mated
pair)
Humidity: 21 days, 43°C, 98% humidity
Temperature range: - 40°C / +85°C
NEW
USB3.0
Data transmission
USB specification 3.0
Data rate: up to 5Gb/s for high speed USB
Series USB3 Field TV USB3F TV 2 A G
Shell type
6: plug (without cordset) - For cordset solution, see page 88.
2: square flange receptacle with female USB3.0 termination - For cordset solution, see page 90.
7: jam nut receptacle with female USB3.0 termination - For cordset solution, see page 90.
Coding (for receptacle only)
A or B
Shells material & finish
G: aluminium shell - olive drab cadmium plating
N: aluminium shell - nickel plating - ROHS compliant
Examples: - plug, olive drab cadmium plating: USB3F TV 6 G
- jam nut receptacle, coding B, nickel plating: USB3F TV 7 B N
Part number code: plug and receptacles without cordset.
t
h
a
n
U
S
B
2
.
0
D
D
D
a
t
a
s
p
ee
1
0
D
a
t
a
s
ee
d
D
D
D
a
t
a
s
p
ee
d
d
D
D
D
a
t
a
s
p
ee
d
d
1
0
1
0
x
h
i
g
h
e
r
x
h
i
g
h
e
r
0
t
h
a
n
U
S
B
2
.
0
t
h
a
n
U
S
B
2
.
0
0
t
h
a
n
U
S
B
2
0
t
h
U
S
B
2
0
Applications
Plug without cordset
Shell type 6
Part number type: USB3 FTV 6 x
Nota: assembling instructions on page 89
