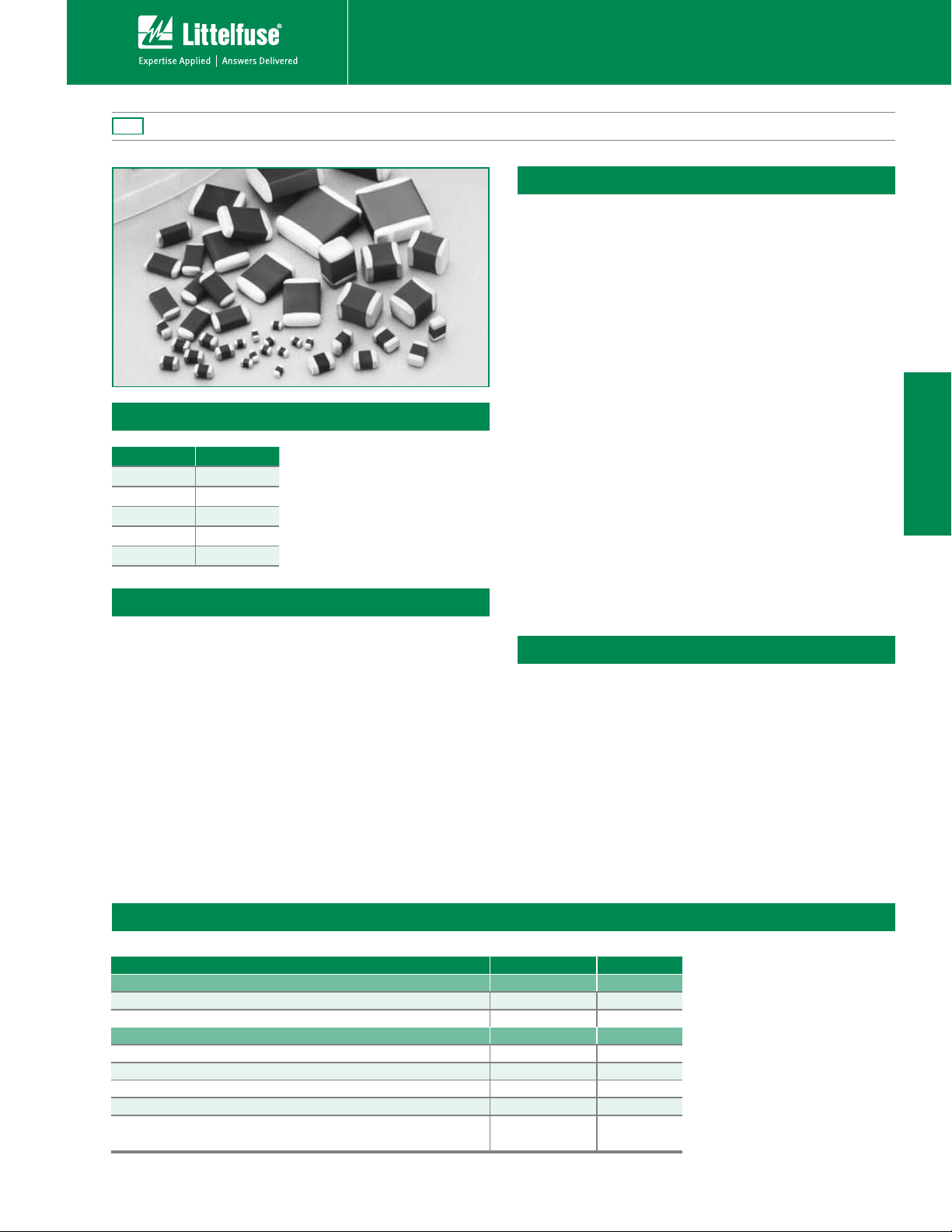

Varistor Products
Revision: January 9, 2009
©2008 Littelfuse, Inc.
ML Varistor Series
Surface Mount Multilayer Varistors (MLVs) > ML Series
Specifications are subject to change without notice.
Please refer to www.littelfuse.com/series/ML.html for current information.
ML Series
ML Varistor Series
RoHS
Description
The ML Series family of transient voltage surge
suppression devices is based on the Littelfuse Multilayer
fabrication technology. These components are designed
to suppress a variety of transient events, including those
specified in IEC 61000-4-2 or other standards used for
Electromagnetic Compliance (EMC). The ML Series is
typically applied to protect integrated circuits and other
components at the circuit board level.
The wide operating voltage and energy range make the ML
Series suitable for numerous applications on power supply,
control and signal lines.
The ML Series is manufactured from semiconducting
ceramics, and is supplied in a leadless, surface mount
package. The ML Series is compatible with modern reflow
and wave soldering procedures.
It can operate over a wider temperature range than Zener
diodes, and has a much smaller footprint than plastic-
housed components.
Littelfuse Inc. manufactures other multilayer series
products. See the MLE Series data sheet for ESD
applications, MHS Series data sheet for high-speed ESD
applications, the MLN Series for multiline protection and
the AUML Series for automotive applications.
Features
t
RoHS compliant
t -FBEMFTT
0805, 1206 and
1210 chip sizes
t .VMUJMBZFSDFSBNJD
construction technology
t ¡$UP¡$
operating temp. range
t 0QFSBUJOHWPMUBHFSBOHF
V
M(DC)
= 5.5V to 120V
t 3BUFEGPSTVSHF
current (8 x 20μs)
t 3BUFEGPSFOFSHZ
(10 x 1000μs)
t *OIFSFOUCJEJSFDUJPOBM
clamping
t /PQMBTUJDPSFQPYZ
packaging assures
better than UL94V-0
flammability rating
t 4UBOEBSEMPXDBQBDJUBODF
types available
Applications
t 4VQQSFTTJPOPGJOEVDUJWF
switching or other
transient events such as
EFT and surge voltage at
the circuit board level
t &4%QSPUFDUJPOGPS*&$
61000-4-2, MIL-STD-
883c method 3015.7,
and other industry
specifications (see also
the MLE or MLN Series)
t 1SPWJEFTPOCPBSE
transient voltage
protection for ICS
and transistors
t 6TFEUPIFMQBDIJFWF
electromagnetic
compliance of
end products
t 3FQMBDFMBSHFSTVSGBDF
mount TVS Zeners in
many applications
Size Table
Metric EIA
1005 0402
1608 0603
2012 0805
3216 1206
3225 1210
Absolute Maximum Ratings
For ratings of individual members of a series, see device ratings and specifications table
.
Continuous ML Series Units
Steady State Applied Voltage:
DC Voltage Range (V
M(DC)
) 3.5 to 120 V
AC Voltage Range (V
M(AC)RMS
) 2.5 to 107 V
Transient:
Non-Repetitive Surge Current, 8/20μs Waveform, (I
TM
) 4 to 500 A
Non-Repetitive Surge Energy, 10/1000μs Waveform, (W
TM
) 0.02 to 2.5 J
Operating Ambient Temperature Range (T
A
) -55 to +125 ºC
Storage Temperature Range (T
STG
) -55 to +150 ºC
Temperature Coefficient (αV) of Clamping Voltage (V
C
) at
Specified Test Current
<0.01 %/º C
