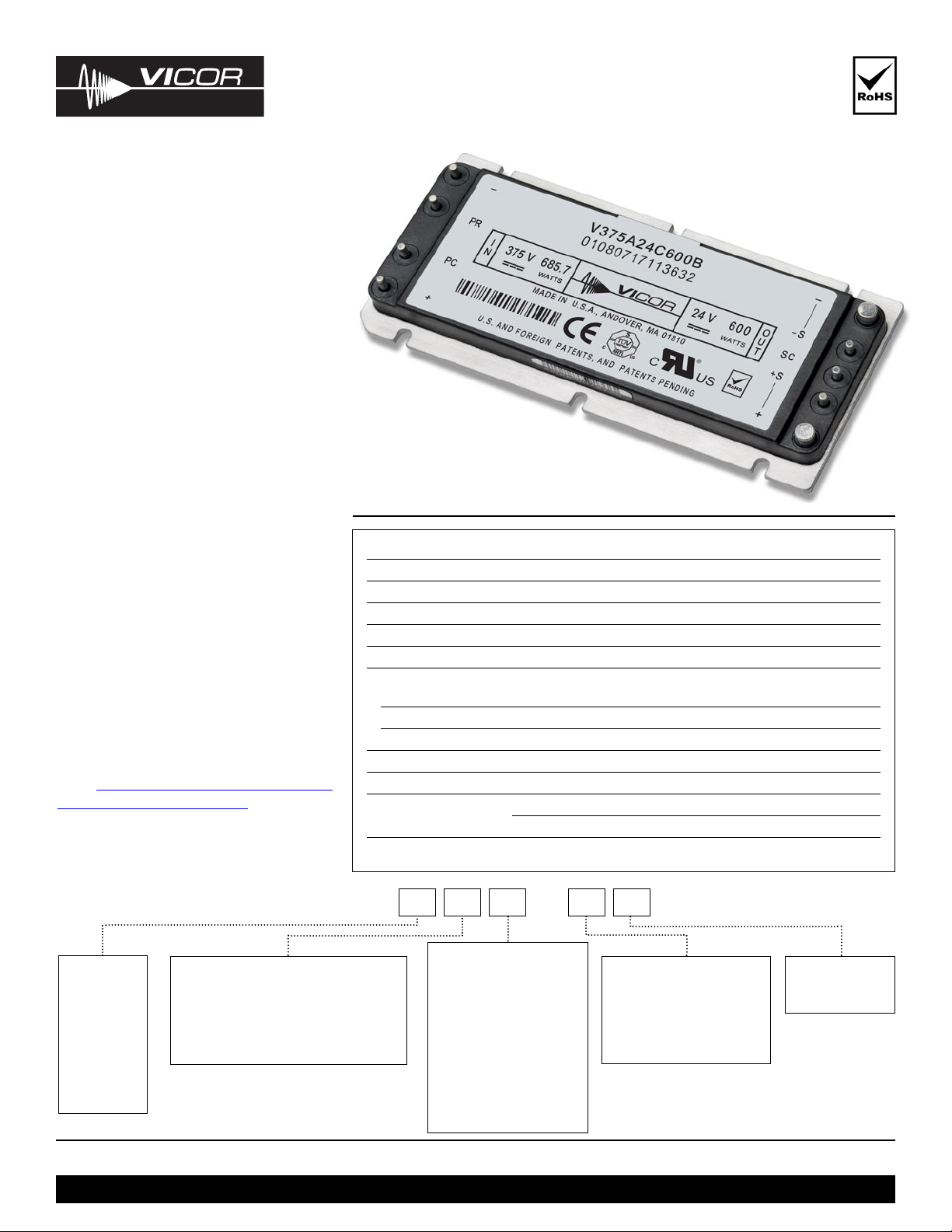

Vicor Corp.Tel: 800-735-6200, 978-470-2900 Fax: 978-475-6715 375V Maxi Family Rev. 8.9 Page 1 of 15
Set your site on VICOR at vicorpower.com
Data Sheet
375V Input Maxi Family
DC-DC Converter Module
Features
• DC input range: 250 – 425 V
• Isolated ouput
• Input surge withstand: 500 V for 100 ms
• DC output: 2 – 54 V
• Programmable output: 10 to 110%
• Regulation: ±0.25% no load to full load
• Efficiency: Up to 89%
•
Maximum operating temp: 100°C, full load
• Power density: up to 120 W per cubic inch
• Height above board: 0.43 in. (10,9 mm)
• Parallelable, with N+M fault tolerance
• Low noise ZCS/ZVS architecture
• RoHS Compliant (with F or G pin option)
Product Overview
These DC-DC converter modules use
advanced power processing, control and
packaging technologies to provide the
performance, flexibility, reliability and cost
effectiveness of a mature power component.
High frequency ZCS/ZVS switching
provides high power density with low
noise and high efficiency.
Applications
Off-line systems with PFC front ends,
industrial and process control, distributed
power, medical, ATE, communications,
defense, aerospace
For details on proper operation please refer
to the Design Guide & Applications Manual
for Maxi, Mini, Micro Family.
Parameter Rating Unit Notes
+In to –In voltage -0.5 to +525 Vdc
PC to –In voltage -0.5 to +7.0 Vdc
PR to –In voltage -0.5 to +7.0 Vdc
SC to -Out voltage -0.5 to +1.5 Vdc
-Sense to -Out voltage 1.0 Vdc
Isolation voltage
in to out 3000 Vrms Test voltage
in to base 1500 Vrms Test voltage
out to base 500 Vrms Test voltage
Operating Temperature -55 to +100 °C M-Grade
Storage Temperature -65 to +125 °C M-Grade
Pin soldering temperature
500 (260) °F (°C) <5 sec; wave solder
750 (390) °F (°C) <7 sec; hand solder
Mounting torque 5 (0.57) in-lbs (N-m) 6 each
Shown actual size:
4.6 x 2.2 x 0.5 in
117 x 56 x 12,7 mm
Absolute Maximum Ratings
Output Voltage
2 =2 V
3 V 3 =3.3 V
5 =5 V
8 =8 V
12 = 12 V
15 = 15 V
24 = 24 V
28 = 28 V
32 = 32 V
36 = 36 V
48 = 48 V
54 = 54 V
Output Power
Vout Pout
2 V 160 W
3.3 V 200 W, 264 W
5 V 300 W, 400 W
8 V 300 W, 400 W
12 V 400 W, 600 W
15 V 400 W, 600 W
24 V 400 W, 600 W
28 V 400 W, 600 W
32 V 600 W
36 V 400 W, 500 W, 600 W
48 V 400 W, 600 W
54 V 600 W
Part Numbering
e.g. V375A12T600BL2
V375A B
Product Grade Temperatures (°C)
Grade Operating Storage
E
=
-
10 to +100
-
20 to +125
C
=
-
20 to +100
-
40 to +125
T
=
-
40 to +100
-
40 to +125
H
=
-
40 to +100
-
55 to +125
M
=
-
55 to +100
-
65 to +125
Pin Style Finish
Blank:
Short Tin/Lead
L:
Long Tin/Lead
S:
Short ModuMate Gold
N:
Long ModuMate Gold
F:
Short RoHS Gold
G:
Long RoHS Gold
Baseplate
Blank:
Slotted
2:
Threaded
3:
Through-hole
