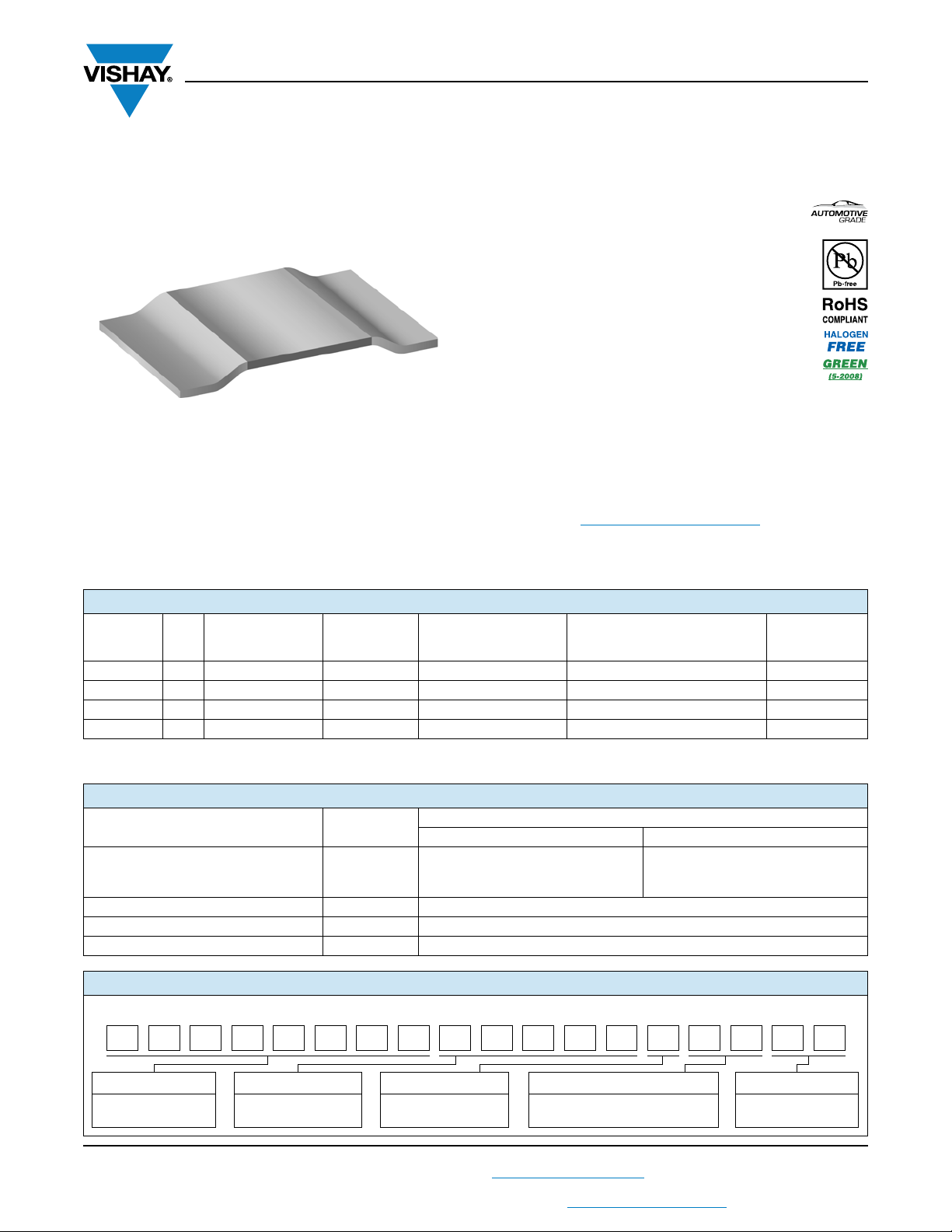

WSLP3921, WSLP5931
www.vishay.com
Vishay Dale
Revision: 12-Mar-14
1
Document Number: 30176
For technical questions, contact: ww2bresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Power Metal Strip
®
Resistors, Very High Power (to 10 W),
Low Value (down to 0.0002 ), Surface Mount
FEATURES
• Ideal for all types of current sensing, voltage
division and pulse applications including
switching and linear power supplies,
instruments, power amplifiers
• Proprietary processing technique produces
extremely low resistance values, down to
0.0002
• Specially selected and stabilized materials
allow for high power rating (to 10 W)
• All welded construction
• Solid metal iron-chrome or manganese-copper alloy
resistive element with low TCR (< 20 ppm/°C)
• Very low inductance 0.5 nH to 5 nH
• Excellent frequency response to 50 MHz
• Low thermal EMF (< 3 μV/°C)
• AEC-Q200 qualified available
(1)
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
Note
(1)
Flame retardance test may not be applicable to some resistor
technologies.
Note
(2)
Other values may be available, contact factory.
Available
STANDARD ELECTRICAL SPECIFICATIONS
GLOBAL
MODEL
SIZE
POWER RATING
P
70 °C
W
TOLERANCE
%
RESISTANCE VALUE
RANGE
RESISTANCE VALUES
CURRENTLY AVAILABLE
(2)
WEIGHT
(typical)
g/1000 pieces
WSLP3921 3921 5.0 1.0, 5.0 2m to 4m 2m, 3m, 4m 281
WSLP3921 3921 9.0 1.0, 5.0 0.2m to 1m 0.2m, 0.3m, 0.5m, 1m 281
WSLP5931 5931 7.0 1.0, 5.0 1m to 3m 1m, 2m, 3m 398
WSLP5931 5931 10.0 1.0, 5.0 0.2m to 0.5m 0.2m, 0.3m, 0.5m 398
TECHNICAL SPECIFICATIONS
PARAMETER UNIT
RESISTOR CHARACTERISTICS
WSLP3921 WSLP5931
Temperature coefficient ppm/°C
± 325 for 0.2 m,
± 175 for 0.3 m and 0.5 m,
± 75 for 1 m to 4 m
± 225 for 0.2 m,
± 175 for 0.3 m and 0.5 m,
± 75 for 1 m to 4 m
Element TCR ppm/°C < 20
Operating temperature range °C -65 to +170
Maximum continuous current A(P/R)
1/2
GLOBAL PART NUMBER INFORMATION
Global Part Numbering: WSLP39212L000FEA
GLOBAL MODEL RESISTANCE VALUE TOLERANCE CODE PACKAGING CODE SPECIAL
WSLP3921
WSLP5931
L = m
2L000 = 0.002
F = ± 1.0 %
J = ± 5.0 %
EA = Lead (Pb)-free, tape/reel
EK = Lead (Pb)-free, bulk
Reserved for
future specials
S L P 3 9 2 1 2 L 0 0 0 F E AW
