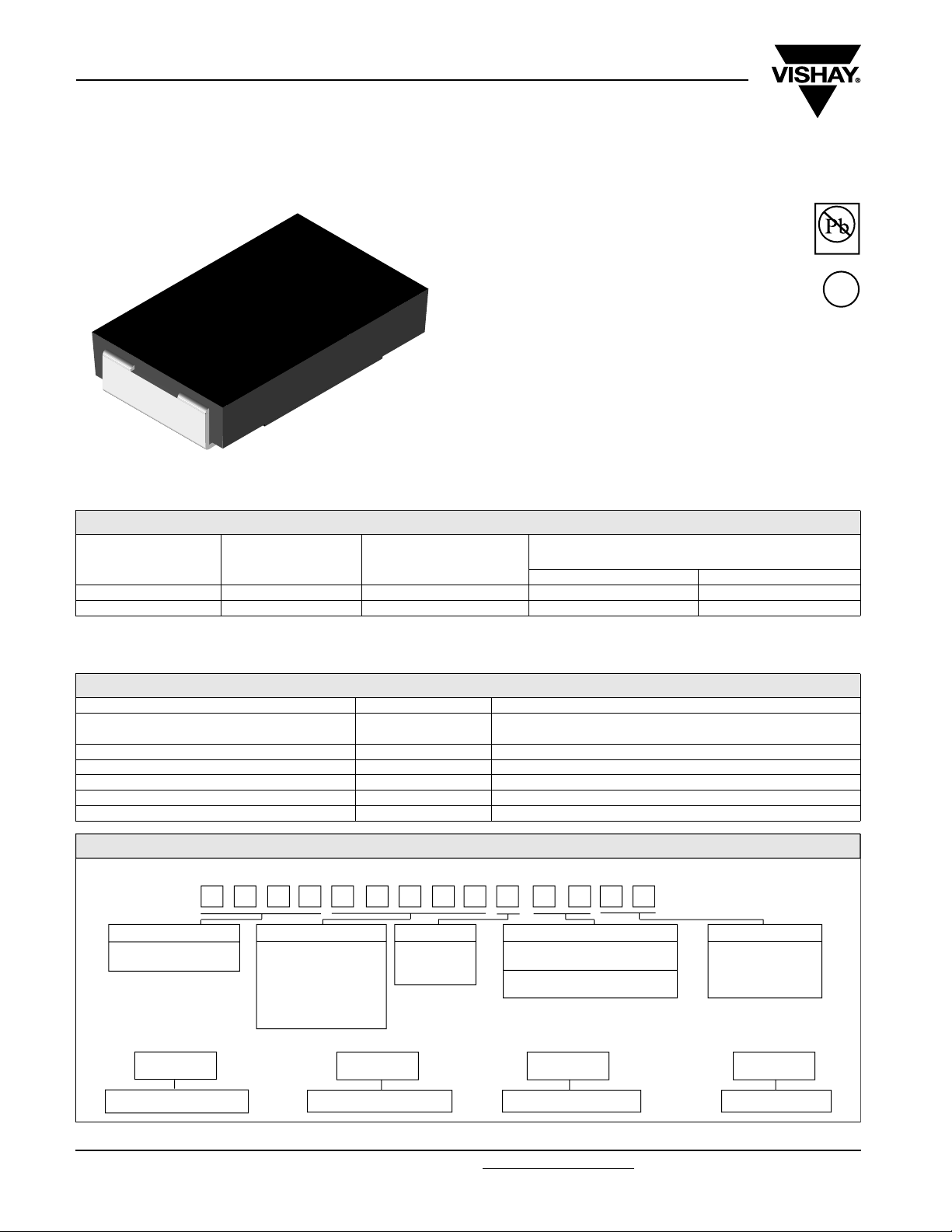

Power Metal Strip
®
Resistors,
Low Value (down to 0.001 Ω), Surface Mount
www.vishay.com For technical questions, contact: ww2bresistors@vishay.com
Document Number: 30101
26 Revision: 26-Mar-07
WSR
Vishay Dale
FEATURES
• Molded high temperature encapsulation
• Ideal for all types of current sensing, voltage
division and pulse applications including
switching and linear power supplies,
instruments, power amplifiers
• Proprietary processing technique produces
extremely low resistance values (down to
0.001 Ω)
• All welded construction
• Solid metal Nickel-chrome or Manganese-copper alloy
resistive element with low TCR (< 20 ppm/°C)
• Solderable terminations
• Very low inductance 0.5 nH to 5 nH
• Excellent frequency response to 50 MHz
• Low thermal EMF (< 3 µV/ °C)
• Lead (Pb)-free version is RoHS compliant
Note
1. The WSR3 requires a minimum of 1050 sq. mil. circuit traces connecting to the recommended solder pad
• Part Marking: DALE, Model, Value, Tolerance, Date Code
* Pb containing terminations are not RoHS compliant, exemptions may apply
Available
Pb-free
RoHS*
COMPLIANT
e2
STANDARD ELECTRICAL SPECIFICATIONS
GLOBAL
MODEL
SIZE
POWER RATING
P
70 °C
W
RESISTANCE RANGE
Ω
± 0.5 % ± 1.0 %
WSR2 4527 2.0 0.01 - 1.0 0.001 - 1.0
WSR3 4527 3.0
1)
0.01 - 0.2 0.001 - 0.2
TECHNICAL SPECIFICATIONS
PARAMETER UNIT WSR2 & WSR3
Temperature Coefficient ppm/°C
0.005 Ω - 0.0099 Ω = ± 110
0.010 Ω - 1.0 Ω = ± 75
Dielectric Withstanding Voltage V
AC
> 500
Insulation Resistance Ω > 10
9
Operating Temperature Range °C - 65/+ 275
Maximum Working Voltage V (P x R)
1/2
Weight/1000 pieces (typical) g 440
GLOBAL MODEL VALUE TOLERANCE PACKAGING SPECIAL
WSR2
WSR3
L = Milliohm* D = ± 0.5 % EA = Lead (Pb)-free, Tape/Reel (Dash Number)
R = Decimal F = ± 1.0 % EK = Lead (Pb)-free, Bulk (up to 2 digits)
5L000 = 0.005 Ω J = ± 5.0 % TA = Tin/Lead, Tape/Reel (R86) From 1 - 99 as
R0100 = 0.01 Ω BA = Tin/Lead, Bulk (B43) applicable
GLOBAL PART NUMBER INFORMATION
New Global Part Numbering: WSR25L000FTA (preferred part numbering format)
Historical Part Number example: WSR2 0.005 Ω 1 % R86 (will continue to be accepted)
WSR2 0.005 Ω 1 % R86
HISTORICAL MODEL RESISTANCE VALUE TOLERANCE CODE PACKAGING
WS R2 5 L 0 0 0 F T A
* use “L” for resistance
values < 0.01 Ω
