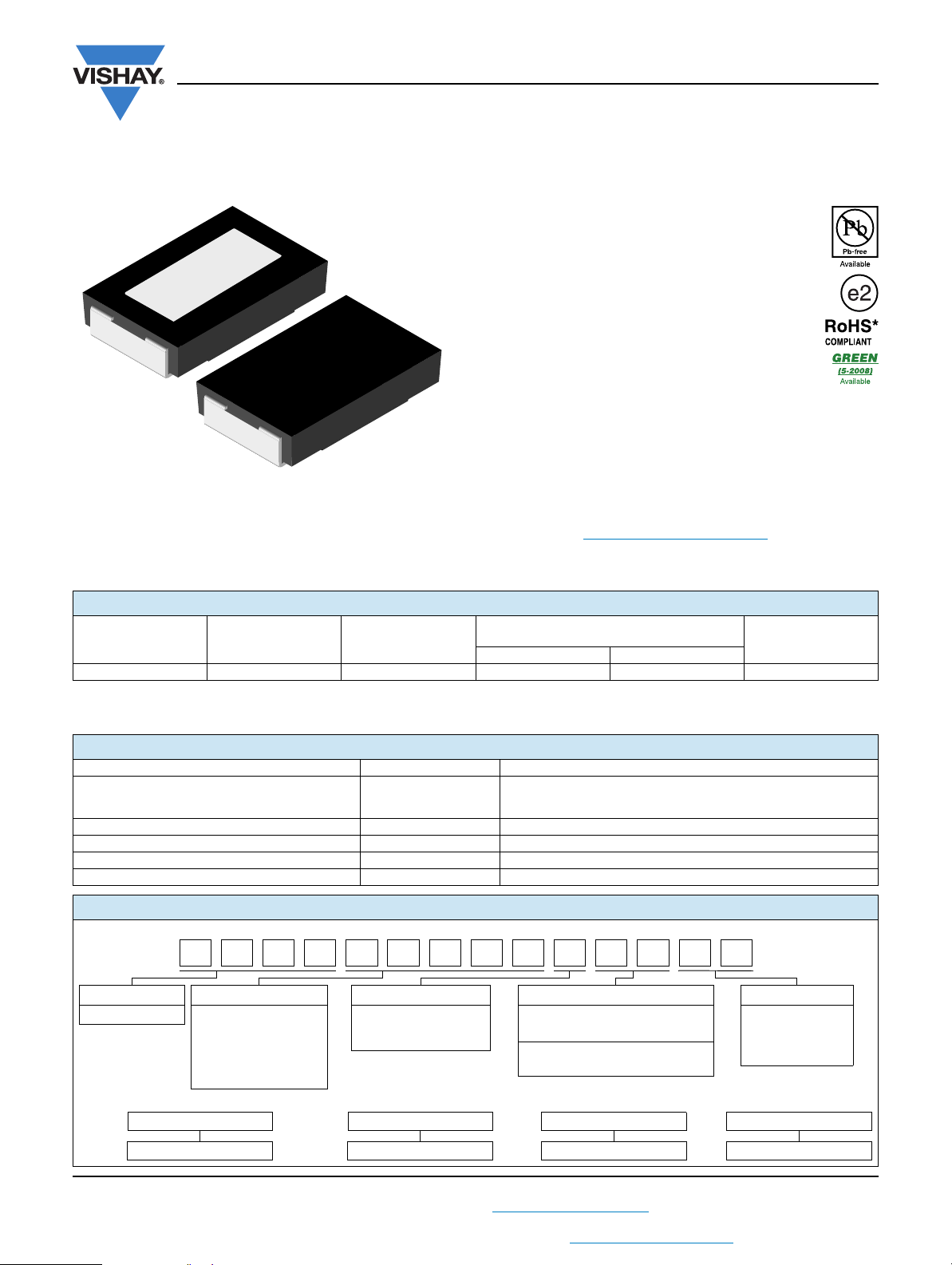

WSR High Power
www.vishay.com
Vishay Dale
Revision: 31-Jul-12
1
Document Number: 31059
For technical questions, contact: ww2bresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Power Metal Strip
®
Resistors,
Low Value (down to 0.001 ), Surface Mount
FEATURES
• Molded high temperature encapsulation
• Improved thermal management incorporated
into design
• Ideal for all types of current sensing, voltage
division and pulse applications including
switching and linear power supplies,
instrumentation, power amplifiers
• Proprietary processing technique produces
extremely low resistance values (down to
0.001 )
• All welded construction
• Solid metal nickel-chrome or manganese-copper alloy
resistive element with low TCR (< 20 ppm/°C)
• Solderable terminations
• Very low inductance 0.5 nH to 5 nH
• Excellent frequency response to 50 MHz
• Low thermal EMF (< 3 μV/°C)
• Integral heat sink not utilized for resistance values less
than 0.0075
• Material categorization: For definitions of compliance
please see www.vishay.com/doc?99912
Note
* Lead (Pb)-containing terminations are not RoHS-compliant.
Exemptions may apply.
Notes
• Part marking: DALE, model, value, tolerance, date code.
(1)
The WSR5 is rated at 5 W with terminal temperature maintained 120 °C.
STANDARD ELECTRICAL SPECIFICATIONS
GLOBAL
MODEL
SIZE
POWER RATING
P
70 °C
W
RESISTANCE VALUE RANGE
WEIGHT
(typical)
g/1000 pieces
Tol. ± 0.5 % Tol. ± 1.0 %
WSR5 4527 5.0
(1)
0.01 to 0.3 0.001 to 0.3 476
TECHNICAL SPECIFICATIONS
PARAMETER UNIT WSR5 RESISTOR CHARACTERISTICS
Temperature coefficient ppm/°C
± 75 for 0.01 to 0.3 ; ± 110 for 0.005 to 0.0099 ;
± 300 for 0.004 to 0.0049 ± 450 for 0.003 to 0.0039 ;
± 600 for 0.002 to 0.0029 ; ± 750 for 0.001 to 0.0019
Dielectric withstanding voltage V
AC
> 500
Insulation resistance > 10
9
Operating temperature range °C - 65 to + 275
Maximum working voltage V (P x R)
1/2
GLOBAL PART NUMBER INFORMATION
Global Part Numbering example: WSR5R0100FEA (preferred part numbering format)
GLOBAL MODEL VALUE TOLERANCE CODE PACKAGING SPECIAL
WSR5 L = m*
R = Decimal
5L000 = 0.005
R0100 = 0.01
* use “L” for resistance
values < 0.01
D = ± 0.5 %
F = ± 1.0 %
J = ± 5.0 %
EA = Lead (Pb)-free, tape/reel
EK = Lead (Pb)-free, bulk
TA = Tin/lead, tape/reel (R86)
BA = Tin/lead, bulk (B43)
(Dash number)
(Up to 2 digits)
From 1 to 99 as
applicable
Historical Part Numbering example: WSR5 0.01 1 % EA (will continue to be accepted)
WSR5 0.01 1 % EA
HISTORICAL MODEL RESISTANCE VALUE TOLERANCE CODE PACKAGING
R5R0 00F1WS AE
