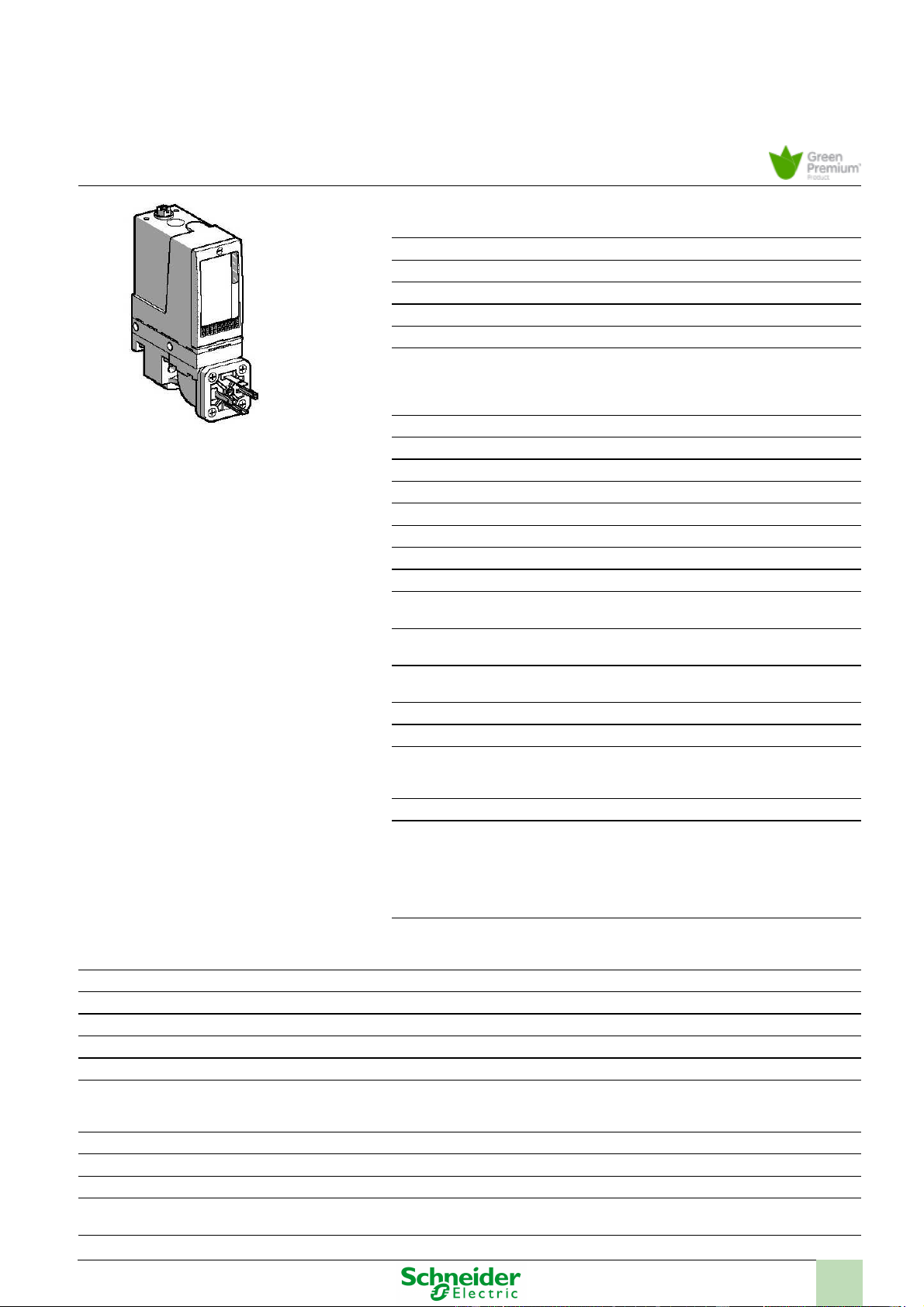

Product datasheet
Characteristics
xmla020a2c11
pressure switch XMLA 20 bar -
fixed scale 1
threshold
- 1 C/O
Main
Range of product
OsiSense XM
Product or component type
Electromechanical pressure sensor
Pressure sensor type
Electromechanical pressure sensor
Device short name
XMLA
Pressure sensor size
20 bar
Controlled fluid
Air (0...70 °C)
Fresh water (0...70 °C)
Sea water (0...70 °C)
Hydraulic oil (0...70 °C)
Fluid connection type
G 1/4 (female) conforming to ISO 228
Electrical connection
1 male connector DIN 43650 A 4 pins
Contacts type and composition
1 C/O
Product specific application
-
Pressure switch type of operation
Detection of 1 single threshold
Electrical circuit type
Control circuit
Scale type
Fixed differential
Local display
With
Adjustable range of switching
point on rising pressure
1...20 bar
Adjustable range of switching
point on falling pressure
0.6...19 bar
Maximum permissible accidental
pressure
45 bar
Destruction pressure
90 bar
Pressure actuator
Diaphragm
Materials in contact with fluid
Brass
Nitrile
Zinc alloy
Enclosure material
Zinc alloy
[In] rated current
3 A, B300, AC-15 (Ue = 120 V) conforming to
EN/IEC 60947-5-1
1.5 A, B300, AC-15 (Ue = 240 V) conforming to
EN/IEC 60947-5-1
0.1 A, R300, DC-13 (Ue = 250 V) conforming to
EN/IEC 60947-5-1
Complementary
Natural differential at low setting
0.4 bar (+/- 0.2 bar)
Natural differential at high setting
1 bar (+/- 0.1 bar)
Maximum permissible pressure - per cycle
25 bar
Operating rate
< 120 cyc/mn at > 0 °C
Repeat accuracy
< 2 %
[Ui] rated insulation voltage
500 V conforming to EN/IEC 60947-1
300 V conforming to CSA C22-2 No 14
300 V conforming to UL 508
[Uimp] rated impulse withstand voltage
6 kV conforming to EN/IEC 60947-1
Auxiliary contacts operation
Snap action
Contacts material
Silver contacts
Resistance across terminals
< 25 mOhm conforming to IEC 255-7 category 3
< 25 mOhm conforming to NF C 93-050 method A
Theinformationprovidedinthisdocumentationcontainsgeneraldescriptionsand/ortechnicalcharacteristicsoftheperformanceoftheproductscontainedherein.
Thisdocumentationisnotintendedasasubstituteforandisnottobeusedfordeterminingsuitabilityorreliabilityoftheseproductsforspecificuserapplications.
Itisthedutyofanysuchuserorintegratortoperformtheappropriateandcompleteriskanalysis,evaluationandtestingoftheproductswithrespecttotherelevantspecificapplicationorusethereof.
NeitherSchneiderElectricIndustriesSASnoranyofitsaffiliatesorsubsidiariesshallberesponsibleorliableformisuseoftheinformationcontainedherein.
