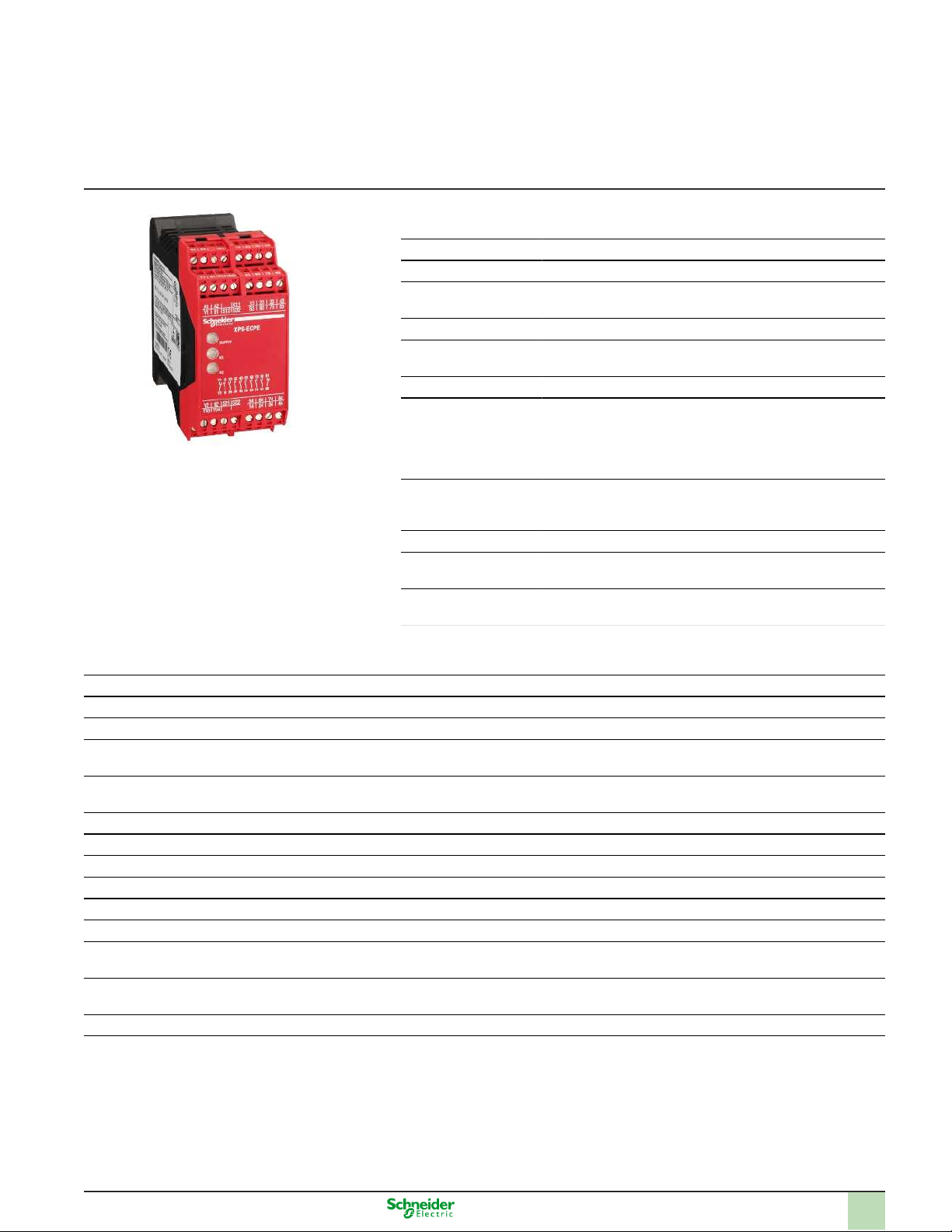

Product data sheet
Characteristics
XPSECPE3910C
module XPSEC - increasing the number of safety
contacts - 115..230 V AC DC
Main
Commercial Status Commercialised
Range of product Preventa Safety automation
Product or component
type
Preventa safety module
Safety module name XPSECPE
Safety module
application
Increasing the number of safety contacts
Function of module Increasing the number of safety contacts
Safety level Can reach SILCL 3 conforming to EN/IEC 62061 can
reach the maximum safety level of module base
Can reach PL e/category 4 conforming to EN/ISO
13849-1 can reach the maximum safety level of module
base
Safety reliability data PFHd = 2.47E-8 1/h conforming to EN/IEC 62061
DC = 0...99 % conforming to EN/ISO 13849-1
MTTFd > 100 years conforming to EN/ISO 13849-1
Output type Relay 8 NO, volt-free
[Us] rated supply
voltage
115...230 V AC (- 15...10 %)
Number of additional
circuits
2 NC + 1 solid state output
Complementary
Supply frequency 50/60 Hz
Power consumption <= 6 VA
Input protection type Internal, electronic
Breaking capacity B300: inrush 3600 VA AC-15 for relay output
B300: holding 360 VA AC-15 for relay output
Breaking capacity 20 mA/24 V for solid state output circuit
3 A/24 V - L/R = 50 ms, DC-13 for relay output
Output thermal current 6 A per relay for relay output
[Ith] conventional free air thermal current < 24 A for relay output
Associated fuse rating 6 A gG for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200
Minimum output current 10 mA for relay output
Minimum output voltage 5 V for relay output
Response time on input open <= 10 ms
[Ui] rated insulation voltage 300 V, degree of pollution 2 conforming to EN/IEC 60947-5-1, DIN VDE 0110 parts 1
& 2
[Uimp] rated impulse withstand voltage 4 kV overvoltage category III, conforming to EN/IEC 60947-5-1, DIN VDE 0110 parts
1 & 2
Local signalling 3 LEDs
