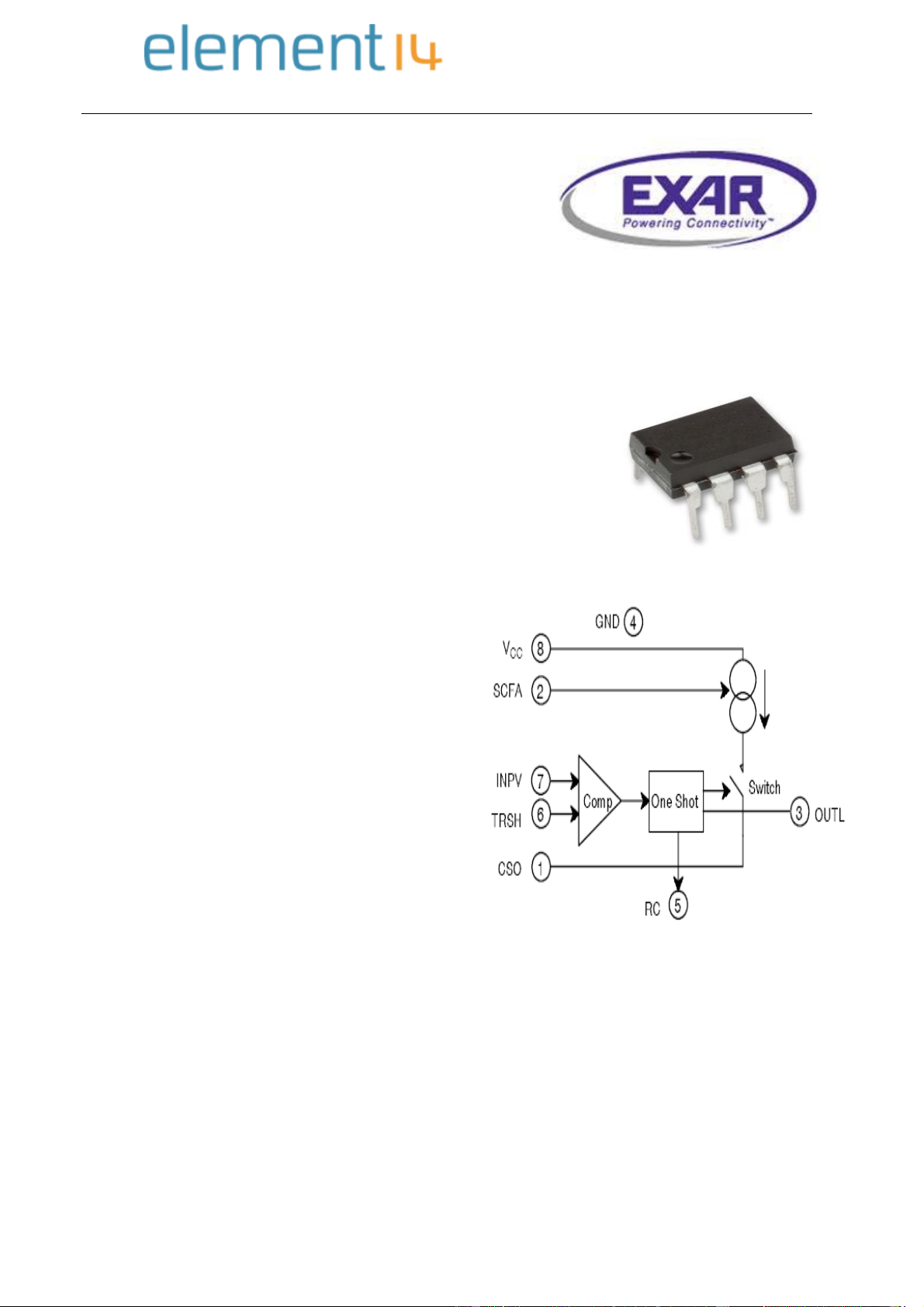

XR4151 Voltage to Frequency Converter

General Description:

The XR4151 is a device designed to provide a simple, low-cost method for

converting a DC voltage into a proportional pulse repetition frequency. It is

also capable of converting an input frequency into a proportional output

voltage. The XR4151 is useful in a wide range of applications including A/D

and D/A conversion and data transmission.

Key Features:

 Single Supply Operation(+8V To +22V)

 Pulse Output Compatible with All Logic Forms

 Programmable Scale Factor

 Temperature Stability

 Linearity 0.05%Typical-precision Mode

 Pb-Free, RoHS Compliant Versions Offered

 High Noise Rejection

 Inherent Monotonocity

 Easily transmittable output

 Simple Full Scale Trim

 Single Ended Input, referenced To Ground

 Also provides Frequency-Voltage Convertion

 Direct Replacement For RC/RV/RM-4151

Applications:

 Voltage-to-Frequency, Frequency-to-Voltage Conversions

 A/D and D/A Conversion

 Data Transmission

 Transducer Interface

 System Isolation
