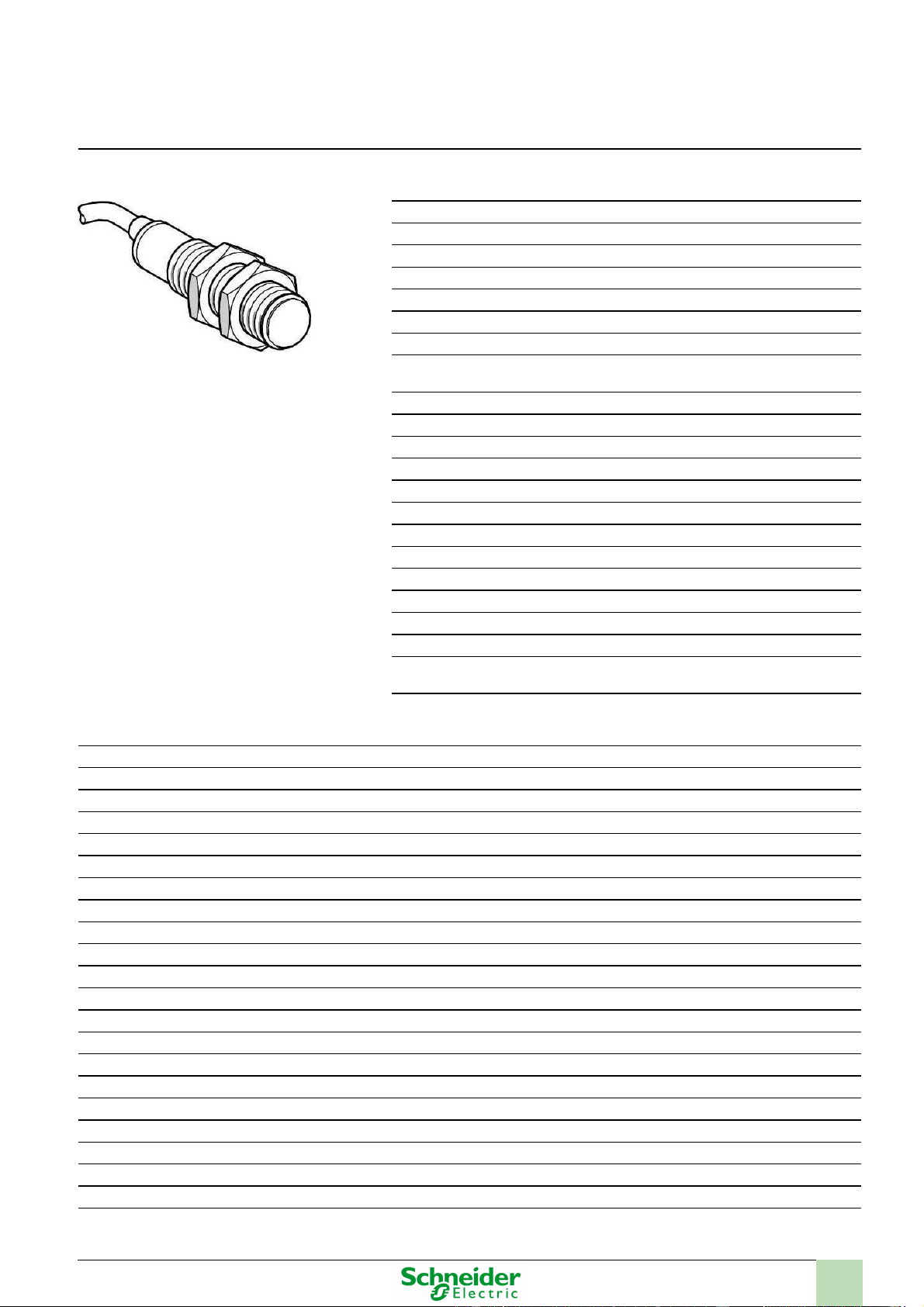

Product datasheet

Characteristics

XT112S1NAL2

capacitive sensor - XT1 -

cylindrical M12

stainless

steel -

Sn 2mm

cable 2mm

Main

Range of product

OsiSense XT

Sensor type

Capacitive proximity sensor

Product specific application

Detection of insulated or conductive materials

Sensor name

XT1

Sensor design

Cylindrical M12

Size

50 mm

Body type

Fixed

Detector flush mounting

acceptance

Flush mountable

Material

Stainless steel

Enclosure material

Stainless steel 303

Type of output signal

Discrete

Wiring technique

3-wire

[Sn] nominal sensing distance

2 mm

Discrete output function

1 NO

Output circuit type

Discrete output type

NPN

Electrical connection

Cable

Cable length

2 m

[Us] rated supply voltage

24 V DC with reverse polarity protection

Delay response

<= 5 ms

IP degree of protection

IP67 conforming to IEC 60947-5-2

IP67 conforming to IEC 60529

Complementary

ISO thread

M12 x 1

Detection face

Frontal

[Sa] assured operating distance

0...1.44 mm

Adjustment zone

0.5...5 mm

Differential travel

< 0.2 x Sr

Repeat accuracy

< 0.1 x Sr

Wire insulation material

PVC

Status LED

1 LED (yellow) for output state indication

Supply voltage limits

12...30 V DC

Residual current

< 0.1 mA (open state)

Protection type

Short-circuit protection

Switching frequency

<= 300 Hz

Voltage drop

<= 2 V (closed)

Current consumption

< 15 mA

Delay first up

<= 30 ms

Delay recovery

<= 5 ms

Maximum switching current

200 mA

Marking

Setting-up

Sensitivity by potentiometer

Threaded length

37 mm

Product weight

0.07 kg

Theinformationprovidedinthisdocumentationcontainsgeneraldescriptionsand/ortechnicalcharacteristicsoftheperformanceoftheproductscontainedherein.

Thisdocumentationisnotintendedasasubstituteforandisnottobeusedfordeterminingsuitabilityorreliabilityoftheseproductsforspecificuserapplications.

Itisthedutyofanysuchuserorintegratortoperformtheappropriateandcompleteriskanalysis,evaluationandtestingoftheproductswithrespecttotherelevantspecificapplicationorusethereof.

NeitherSchneiderElectricIndustriesSASnoranyofitsaffiliatesorsubsidiariesshallberesponsibleorliableformisuseoftheinformationcontainedherein.

1 / 2
