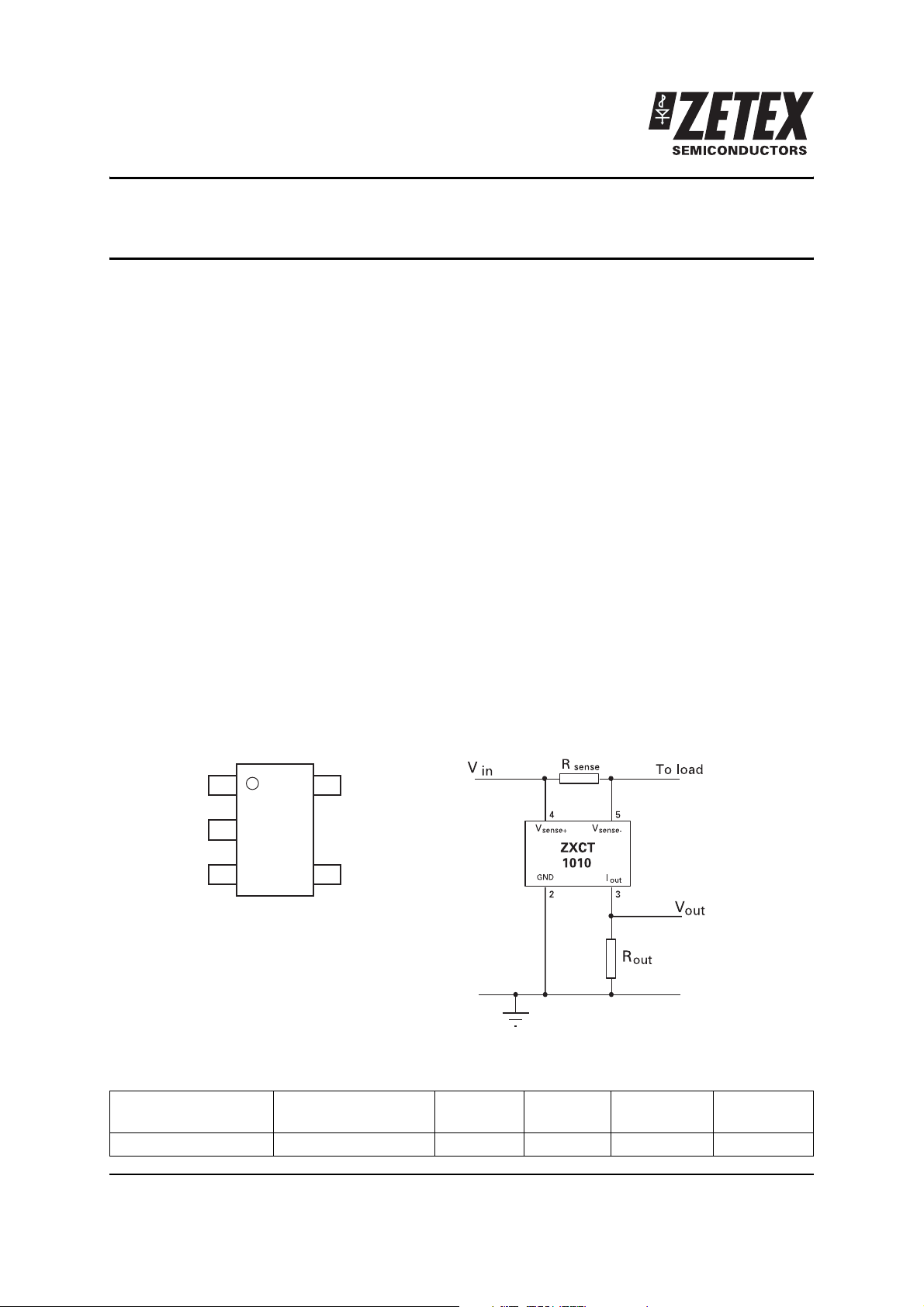

Issue 9 - July 2006 1 www.zetex.com
© Zetex Semiconductors plc 2006
ZXCT1010
Enhanced high-side current monitor
Description
Ordering information
The ZXCT1010 is a high side current sense
monitor. Using this device eliminates the
need to disrupt the ground plane when
sensing a load current.
It is an enhanced version of the ZXCT1009
offering reduced typical output offset and
improved accuracy at low sense voltage.
The wide input voltage range of 20V down to as
low as 2.5V make it suitable for a range of
applications. A minimum operating current of
just 4A, combined with its SOT23-5 package
make suitable for portable battery equipment.
Features
• Low cost, accurate high-side current
sensing
• Output voltage scaling
• Up to 2.5V sense voltage
• 2.5V – 20V supply range
• 300nA typical offset current
•3.5A quiescent current
• 1% typical accuracy
• SOT23-5 package
Applications
• Battery chargers
• Smart battery packs
•DC motor control
• Over current monitor
• Power management
• Programmable current source
Pinout information Typical application circuit
Device Package Device
marking
Reel size
(inches)
Tape width
(mm)
Quantity
per reel
ZXCT1010E5TA
SOT23-5
101 7 8 3000
NC
GND
I
OUT
Load
V
IN
Pinout - top view
1
2
3
5
4
