AD8209A-EVALZ User Guide
UG-1024
One Technology Way • P. O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Te l: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluation Board User Guide for the AD8209A High Voltage,
Precision Difference Amplifier
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Rev. 0 | Page 1 of 8
FEATURES
Full featured evaluation board for the AD8209A
Enables quick bread boarding/prototyping
Includes provisions for the current sense resistor
All analog design, no software required
Footprints provided for alternate configurations
EVALUATION KIT CONTENTS
AD8209A-EVALZ evaluation board
ADDITIONAL EQUIPMENT NEEDED
A signal generator
A power supply
An oscilloscope with a bandwidth of at least 20 MHz
BNC male to dual banana jack female adapter
At least 4 banana to grabber cables
Banana plug to banana plug cable
ONLINE RESOURCES
AD8209A data sheet
GENERAL DESCRIPTION
This user guide describes the evaluation board for the
AD8209A, a high voltage, single-supply, precision difference
amplifier. The design of this board emphasizes simplicity and
ease of use; the board can be readily mounted with a current
sense resistor of a maximum standard size of 2818. The board
design also allows flexibility with loads. This board comes with
vector pins for the input and output terminals in a predefined
configuration.
The AD8209A data sheet covers the details of the device
operation and describes the basic connections for operating the
device, as well as common circuit configurations and applications.
Consult the data sheet in conjunction with this user guide for a
better understanding of the device operation, especially when
powering up the evaluation board for the first time.

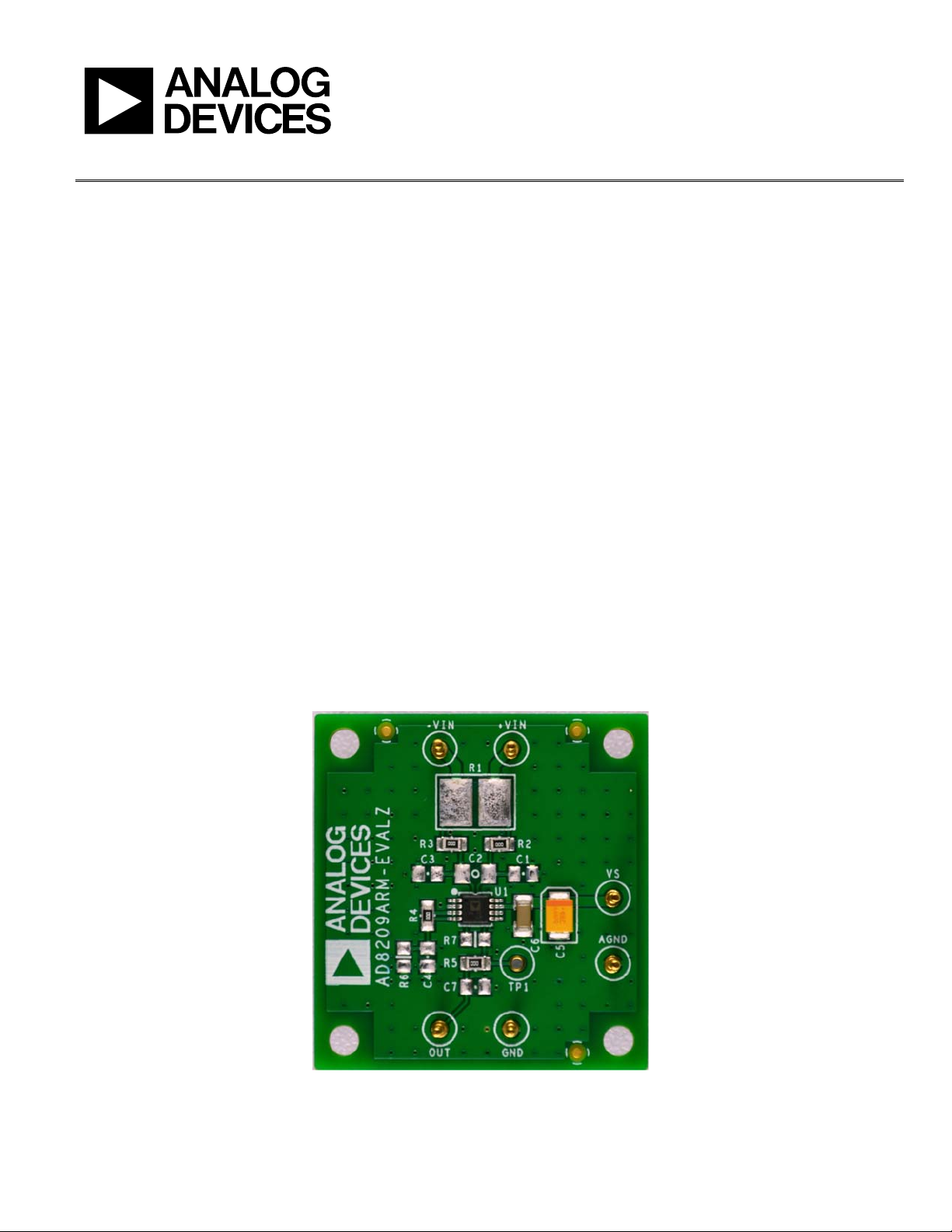

EVALUATION BOARD PHOTOGRAPH
14790-001
Figure 1. AD8209A-EVALZ Evaluation Board
