SOT-23 Single Op Amp
Evaluation Board User Guide
UG-838
One Technology Way • P. O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Te l: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluation Board for Single, High Speed Op Amps Offered in 5-Lead SOT-23 and
6-Lead SOT-23 Packages
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Rev. 0 | Page 1 of 5
FEATURES
Enables quick breadboarding/prototyping
User defined circuit configuration
Edge mounted SMA connector provisions
Easy connection to test equipment and other circuits
RoHS compliant
GENERAL DESCRIPTION
The Analog Devices, Inc., SOT-23 evaluation board evaluates
single, high speed op amps offered in 5-lead and 6-lead SOT-23
packages. The evaluation board is a bare board that enables users
to quickly prototype a variety of single op amp circuits, which
minimizes risk and reduces time to market. Figure 1 shows the
component side of the bare evaluation board. Figure 2 shows
the circuit side of the bare evaluation board.
The 6-layer evaluation board accepts SMA edge-mounted
connectors on the inputs and outputs for efficient connection to
test equipment or other circuitry. The ground plane, component
placement, and supply bypassing minimize parasitic inductance
and capacitance. The evaluation board components are primarily
SMT 0603 case size, with the exception of the electrolytic bypass
capacitors (C1 and C2), which are 3528 case size.
Figure 3 shows the evaluation board schematic. The printed
circuit board (PCB) assembly drawings are shown in Figure 4
and Figure 5. The layout pattern for the PCB is shown in Figure 6
and Figure 7.
EVALUATION BOARD IMAGES
13193-001

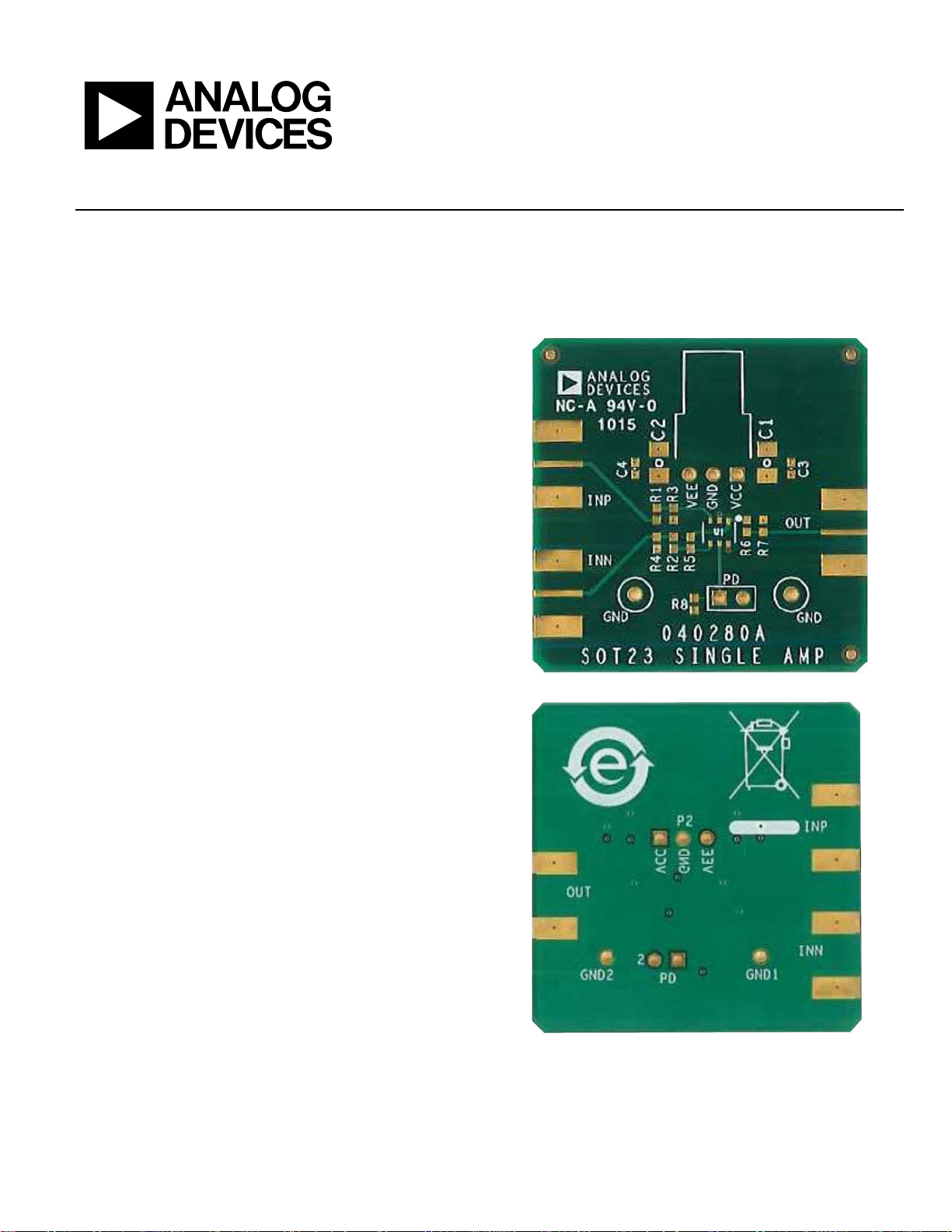

Figure 1. Component Side of Evaluation Board
13193-002
Figure 2. Circuit Side of Evaluation Board
