EV-ADF411XSD1Z User Guide
UG-161
One Technology Way • P. O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluation Board for the Integer-N and Fractional-N PLL Frequency Synthesizer
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Rev. A | Page 1 of 28
FEATURES
General-purpose PLL evaluation board, excluding the
frequency synthesizer, VCO, and loop filter
Compatible with integer-N PLLs in a 16-lead TSSOP package
ADF4110, ADF4111, ADF4112, ADF4113, ADF4116,
ADF4117, ADF4118, ADF4106, ADF4107
Compatible with fractional-N PLLs in a 16-lead TSSOP package
ADF4153, ADF4154, ADF4156, ADF4157
Accompanying software allows complete control of synthesizer
functions from a PC
EVALUATION KIT CONTENTS
EV-ADF411XSD1Z board
CD that includes
Self-installing software that allows users to control the
board and exercise all functions of the device
Electronic version of the frequency synthesizer data sheet
Electronic version of the UG-161 user guide
ADDITIONAL EQUIPMENT
PC running Windows XP or more recent version
SDP-S board (system demonstration platform-serial)
ADF41XXBRUZ (see the Features section for applicable parts)
T-package VCO, loop filter components
Spectrum analyzer, oscilloscope (optional)
DOCUMENTS NEEDED
Frequency synthesizer data sheet
UG-161 user guide
REQUIRED SOFTWARE
Analog Devices Int-N PLL software (Version 7 or higher)
Analog Devices Frac-N PLL software (Version 4 or higher)
ADIsimPLL
GENERAL DESCRIPTION
This evaluation board allows the user to evaluate the performance
of the ADF41XXBRUZ frequency synthesizers, which are available
in 16-lead TSSOP packages. The
SDP-S controller board allows
software programming of the frequency synthesizer. Figure 1
shows the board, which contains footprints for a frequency
synthesizer, the power supplies, a TCXO reference, and an RF
output. There are also footprints for the passive PLL loop filter
components, a VCO, and an external reference SMA input.
The PLL loop filter values can be generated from the Analog
Devices, Inc.,
ADIsimPLL software tool. Prior to evaluation
setup, the ADF41XXBRUZ, T-package VCO, and loop filter
components should be inserted on the board.
Figure 1 shows the board with all necessary components inserted.
EVALUATION BOARD

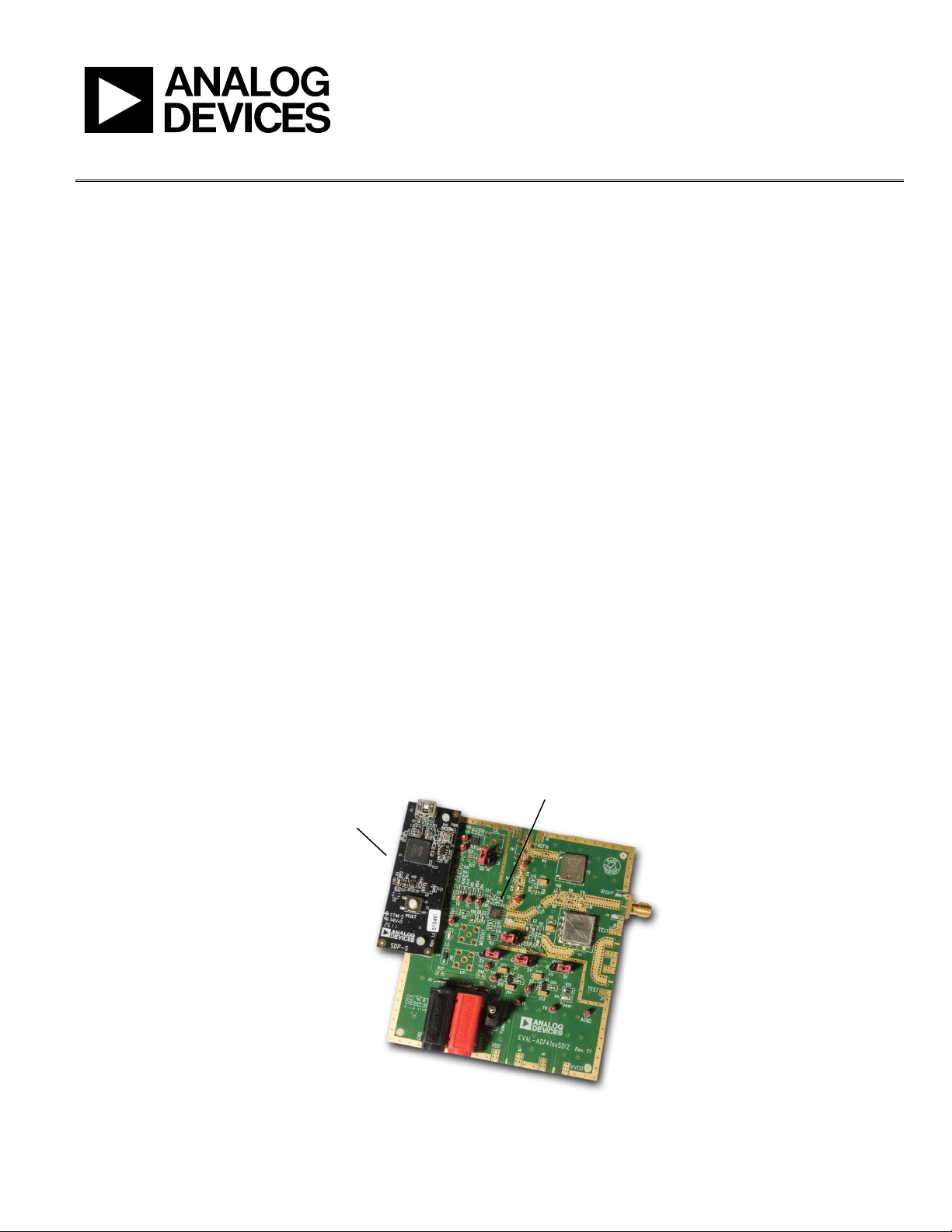

Figure 1. EV-ADF411XSD1Z with SDP-S
09146-001
SDP-S
(TO BE PURCHASED
SEPARATELY)
ADF41XXBRUZ
(SAMPLES TO BE PURCHASED SEPARATELY)
