Supervisory Circuits with Windowed
Watchdog and Manual Reset in 5-Lead SOT-23
Data Sheet
ADM8323/ADM8324
Rev. 0 Document Feedback
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781.329.4700 ©2013 Analog Devices, Inc. All rights reserved.
Technical Support www.analog.com
FEATURES
Windowed watchdog, 8 timeout options
26 reset threshold options
2.5 V to 5 V in 100 mV increments
4 reset timeout options
1 ms, 20 ms, 140 ms, and 1120 ms (minimum)
Manual reset input
Open-drain or push-pull
RESET
outputs
Low power consumption
Specified over wide temperature range (−40°C to +125°C)
Qualified for automotive applications
5-lead SOT-23 package
APPLICATIONS
Automotive
Microprocessor systems
Computers
Controllers
Intelligent instruments
Portable equipment

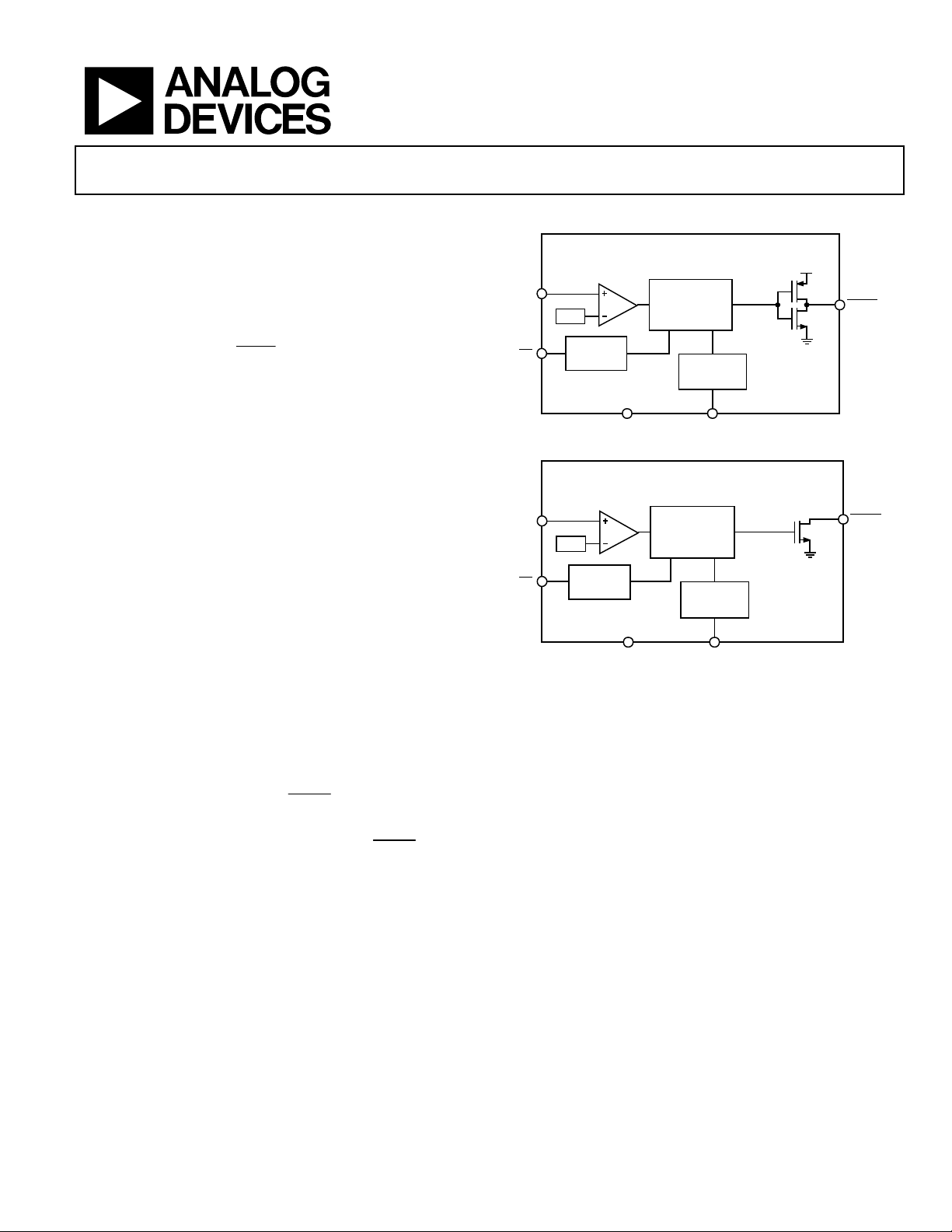

FUNCTIONAL BLOCK DIAGRAMS
Figure 1.
Figure 2.
GENERAL DESCRIPTION
The ADM8323/ADM8324 are supervisory circuits that monitor
power supply voltage levels and code execution integrity in
microprocessor-based systems. An on-chip watchdog timer
checks for activity within a preset timeout window. A reset
signal can also be asserted by an external push-button switch
through a manual reset input. The
RESET
output is either push-
pull (ADM8323) or open-drain (ADM8324).
A watchdog failure results in a low output on the
RESET
pin.
A failure can be triggered either by a fast watchdog error
(watchdog pulses too close together) or by a slow watchdog
error (no watchdog pulse within the timeout period). This
effectively gives a window in which to observe the watchdog
pulse. The watchdog timeout is measured from the last falling
edge of the watchdog input (WDI). There are eight different
watchdog windows available, as shown in Table 5.
Each device is available in a choice of 26 reset threshold options
from 2.5 V to 5 V in 100 mV increments. There are also four
reset timeout options of 1 ms, 20 ms, 140 ms, and 1120 ms
(minimum).
The ADM8323/ADM8324 are available in a 5-lead SOT-23
package and typically consume only 10 μA, making them
suitable for use in low power portable applications.
ADM8323
V
CC
V
CC
MR
GND WDI
RESET
RESET
GENERATOR
WINDOWED
WATCHDOG
DETECTOR
DEBOUNCE
V
REF
11802-001
ADM8324
V
CC
MR
GND WDI
RESET
RESET
GENERATOR
WINDOWED
WATCHDOG
DETECTOR
V
REF
11802-002
DEBOUNCE
