EVAL-ADuMQSEBZ User Guide
UG-042
One Technology Way • P. O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluating the 16-Lead SOIC and the 16-Lead QSOP Digital Isolators
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Rev. C | Page 1 of 8
FEATURES
Convenient connections for power through screw
terminal blocks
Add-on BNC connector for 50 Ω signal sources
On-board signal routing
Support for signal wrap back
Simple signal paths to reduce transmission line effects
Pull-up and pull-down provided for control lines
Support for isoPower
Project area that supports surface-mount and through-hole
devices
GENERAL DESCRIPTION
The E VA L-ADuMQSEBZ can be used with most iCoupler®
isolation products in the 16-lead, wide-body SOIC and QSOP
packages. The evaluation board supports the common pad
positions for power, ground, and input/output pins found in
nearly all of the iCoupler products and is a configurable board
that can be adapted to many iCoupler products.
SUPPORTED iCOUPLER MODELS
ADuM130x
ADuM131x
ADuM140x
ADuM141x
ADuM1510
ADuM240x
ADuM330x
ADuM340x
ADuM344x
ADuM5000
ADuM520x
ADuM540x
ADuM6000
ADuM620x
ADuM640x
ADuM744x
ADuM7510

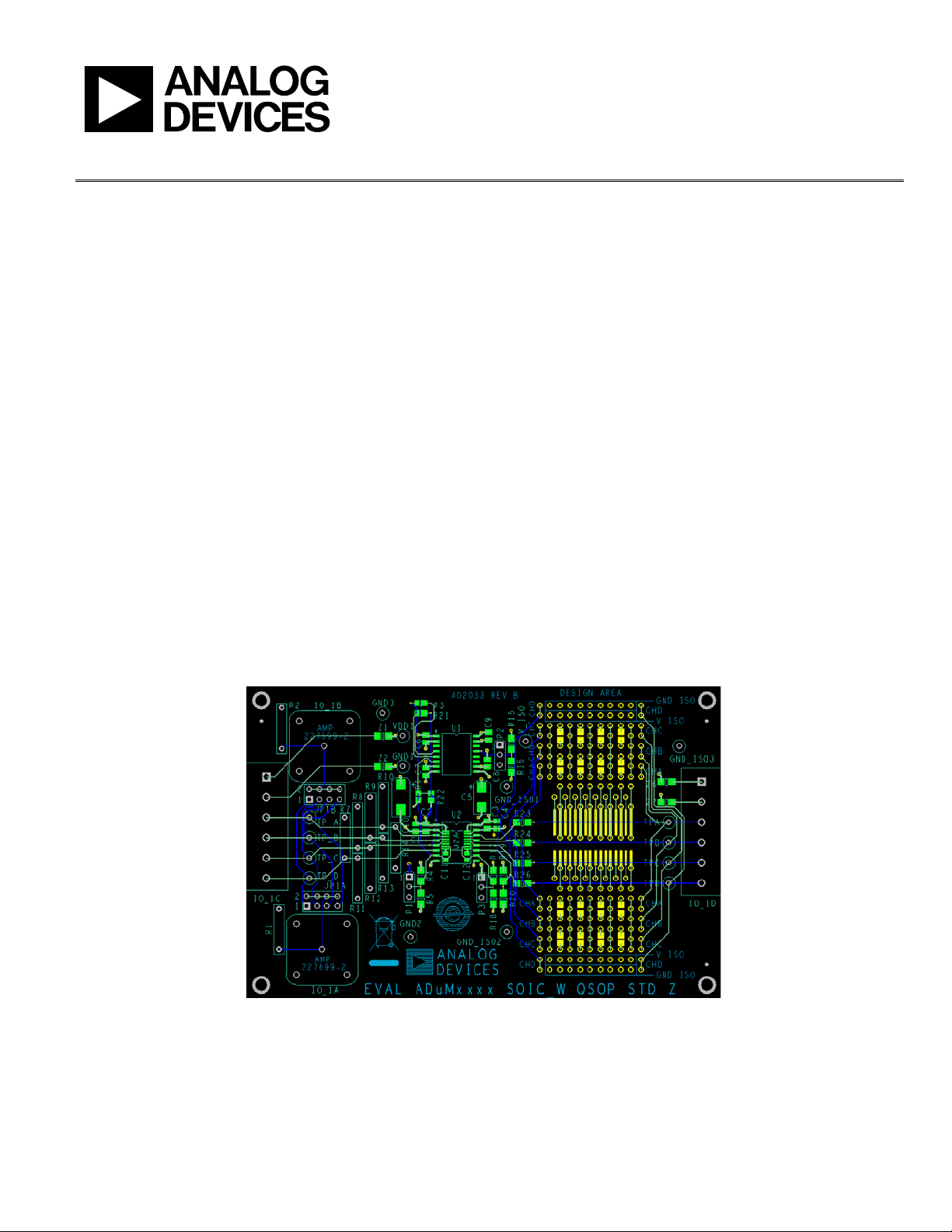

EVALUATION BOARD
Figure 1.
08414-001
