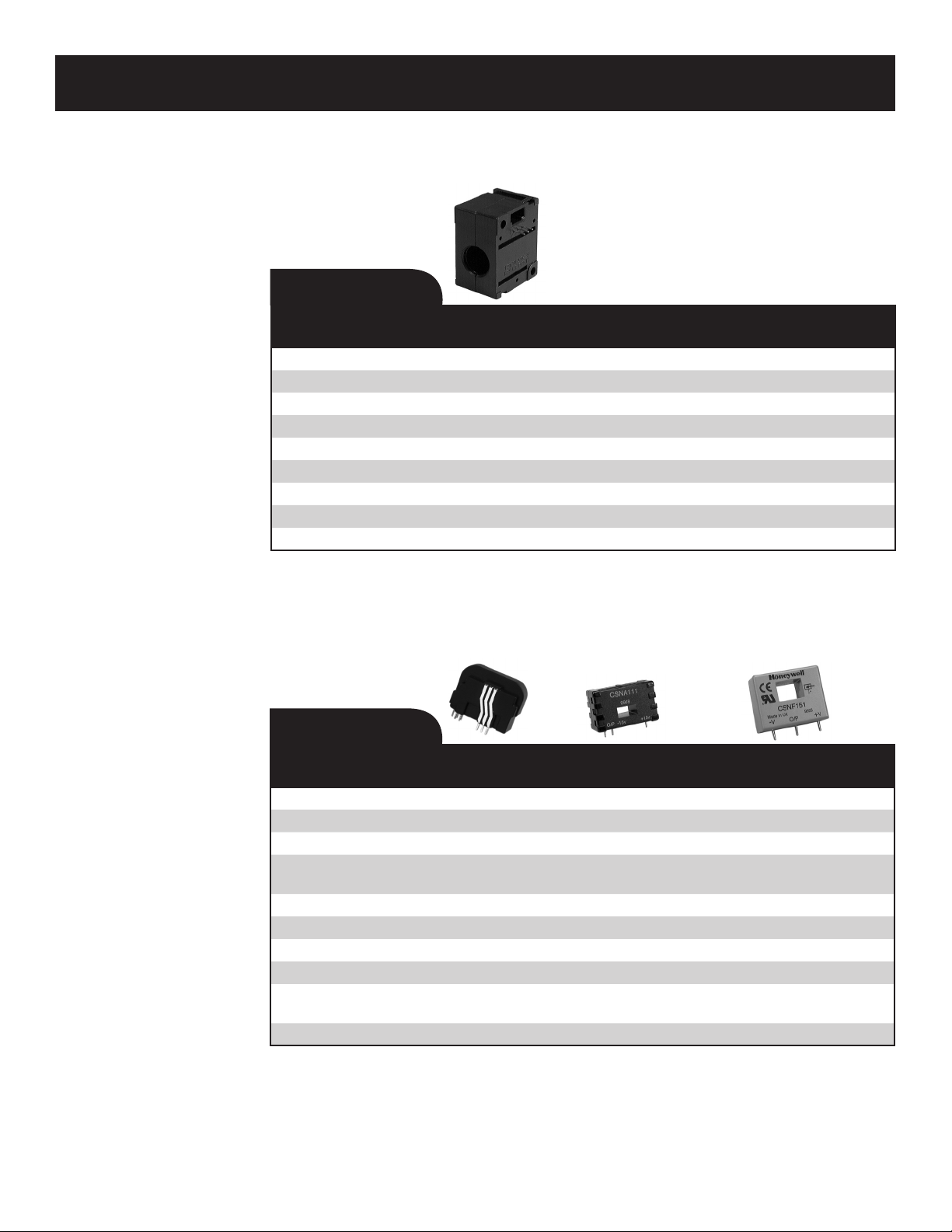

CSDA Series
Operate current 0.5 A.t. nom., 3.5 A.t. nom.
Sensed current type ac or dc
Output voltage
Response time 100 µs
Accuracy better than 0.5 %
Mounting PCB mounting pins or screw mount
Pinout style 3-pin PCB or 3-pin AMP connector
Operating temperature -25 °C to 85 °C [-13 °F to 185 °F]
Supply voltage 6 Vdc to 16 Vdc
2 www.honeywell.com/sensing
Current Sensors Line Guide
Digital/Inductive
Current Sensors
Common sense. Global
leadership.
Honeywell S&C offers linear
(analog) open loop, digital, or
closed-loop current sensors.
When any of these sensors
detect predetermined signals,
the system then performs the
designated task. For instance,
the digital signal’s logic level
output may sound an alarm,
start a motor, or open a valve.
The linear signal duplicates
the waveform — often ideal for
feedback elements to control
a motor, or regulate machine
function. And Honeywell’s new
closed-loop current sensor
with magnetoresistive (MR)
technology offers amazing
offset drift performance over
a wide temperature range —
with almost no thermal drift, for
enhanced accuracy.
For proven engineering
expertise, component
dependability, and global
support, trust Honeywell S&C.
CSNX Series CSNA Series CSNF Series
Sensed current range ±56 A ±70 A, ±90 A, ±100 A ±150 A, ±180 A, ±200 A
Sensed current type ac, dc, impulse ac, dc, impulse ac, dc, impulse
Output current current current
Coil turns 2000 (50 Ohm coil)
1000 (90 or 50 Ohm coil)
2000 (160 or 130 Ohm coil)
1000 (30 Ohm coil)
2000 (100 Ohm coil)
Response time < 0.2 µs < 1 µs < 0.5 µs
Accuracy ±0.24 % ±0.5 % ±0.5 %
Mounting PCB on 11-pins PCB on 3-pins PCB on 3-pins
Pinout style unipolar offset center
Operating temperature
-40 °C to 85 °C
[-40 °F to 185 °F]
0 °C to 70 °C
[32 °F to 158 °F]
-40 °C to 85 °C
[-40 °F to 185 °F]
Supply voltage 4.75 Vdc to 5.25 Vdc ±13 Vdc, ±15 Vdc ±12 Vdc to ±15 Vdc
Closed Loop
Current Sensors
