www.ti.com
1 Overview
Overview
5 Electrical Data ................................................................................................................ 8
6 Audio Performance Analog Input .......................................................................................... 8
7 Audio Performance Digital Input ........................................................................................... 8
8 Physical Specifications ...................................................................................................... 9
9 DRV601EVM2 Parts List .................................................................................................. 21
10 PCB Specifications ......................................................................................................... 22
The DRV601EVM2 customer evaluation module (EVM) demonstrates the integrated circuits DRV601RTJ
from Texas Instruments (TI).
The DRV601 is a stereo line driver designed to allow the removal of the DC-blocking capacitors for
reduced component count and cost. The DRV601 is ideal for single-supply electronics where size and
cost are critical design parameters.
The DRV601 is capable of driving 2 V
rms
into a 600- Ω load at 3.3-V supply. The DRV601 has external
gain-setting resistors that support a gain range of -1 V/V to -10 V/V and line outputs that have ± 8 kV IEC
ESD protection. The DRV601 has independent shutdown control for the left and right audio channels.
This EVM is configured with one TOSLINK™digital audio S/PDIF connector, two RCA phono input
connectors, and two RCA phono output connectors. Power supply is connected via a two-pin 2,54-mm pin
header.
Table 1. DRV601EVM2 Specifications
KEY PARAMETERS
Supply Voltage 5 V
Number of Channels 2
Load Impedance Minimum 600 Ω
Output Voltage 2 V
rms
DYR > 105 dB analog in, 98 dB digital in
This EVM is designed for evaluating applications such as set-top boxes and PDP/LCD televisions.
This document covers EVM specifications, audio performance measurements graphs, and design
documentation that includes schematics, parts list, and layout design.

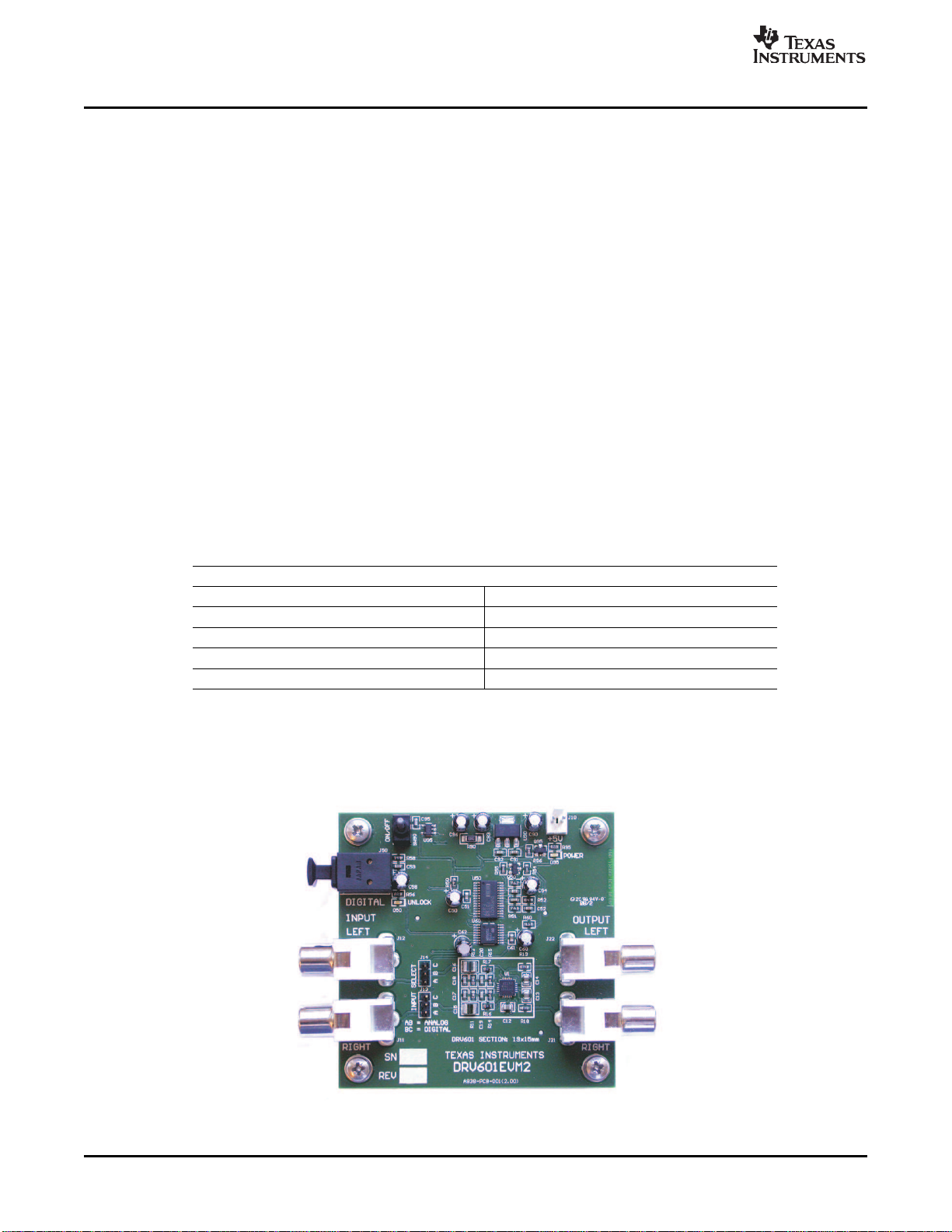

Figure 1. DRV601EVM2
2 DRV601EVM2 SLOU217 – March 2008
Submit Documentation Feedback
