PCB (Top Assembly View)
www.ti.com
1 PCB (Top Assembly View)

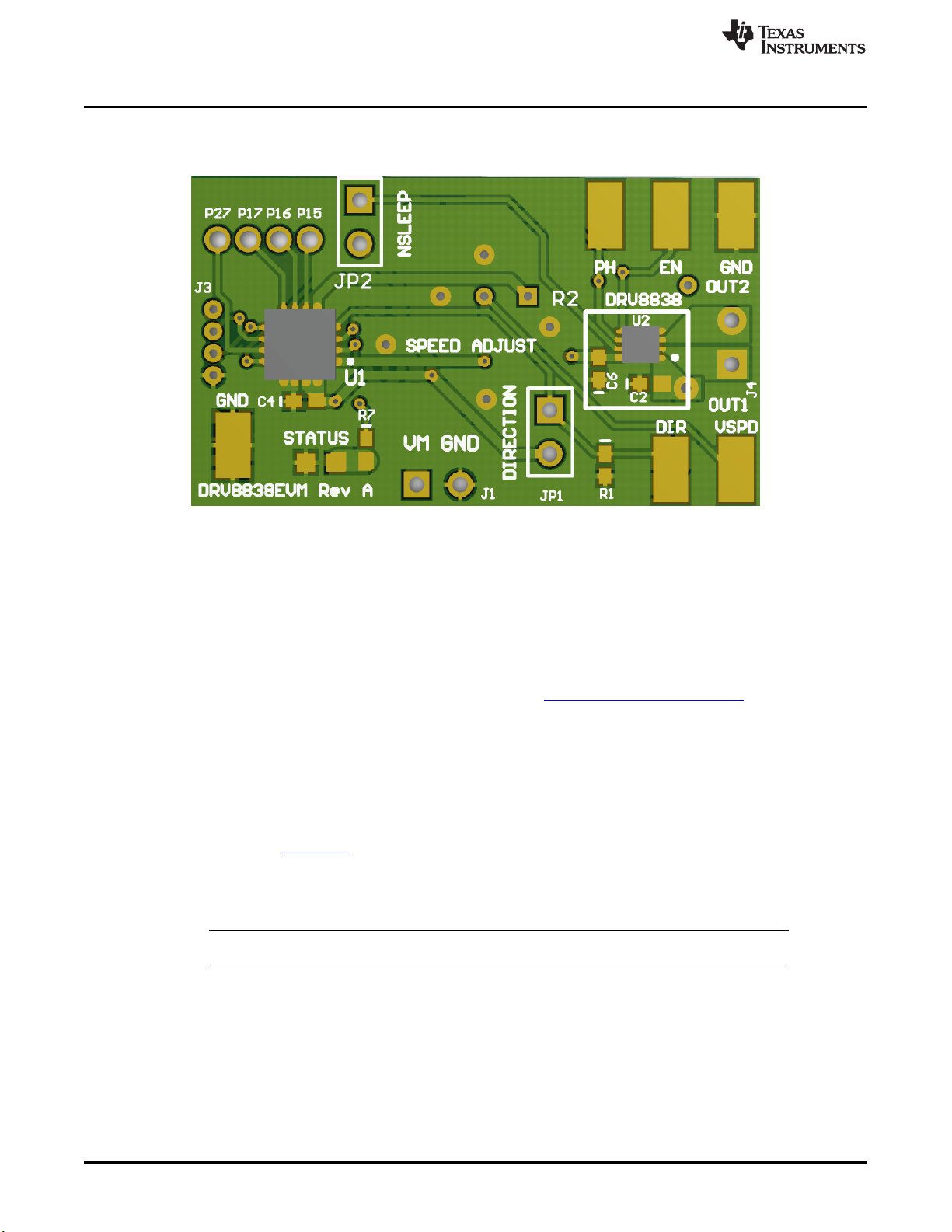

Figure 1 illustrates the top assembly view of the DRV8838EVM.
Figure 1. Top Assembly View
2 Introduction
The DRV8838EVM is a complete solution for evaluating the DRV8838 low-voltage, brushed DC motor
driver. It includes a MSP430 microcontroller that is pre-programmed to take input from an analog
potentiometer for PWM speed control, and a direction jumper to change motor direction. Power can be
provided with the included micro-USB cable for 5 V or externally provided up to 11 V through the power
header. To expand beyond the included firmware capability, the MSP430 is re-programmed via an
external MSP430 USB Stick Development Tool available at www.ti.com/tool/ez430-f2013. Unused pins on
the micro-processor are brought out to plated through holes on the EVM.
2.1 Power Connectors
The DRV8838EVM uses a combination of headers and a USB input jack (on bottom side) for the
application and monitoring of power. For the EVM, only a single power supply rail is necessary and an
onboard 3.3-V regulator provides power to the MSP430 and the logic core (VCC) of the DRV8838 motor
driver. The minimum recommended VIN for the EVM is 1.8 V and the maximum is 11 V. Please see the
DRV8838 datasheet (SLVSBA4) for the complete voltage range information of the driver itself.
VM for the DRV8838 is taken directly off the USB jack supply or J1 power supply header. The J1 header
is located on the top side of the EVM near the bottom-center of the board. The USB jack is located on the
bottom side of the board. Please choose ONLY one method for providing power to the EVM.
NOTE: Do not hot-wire J1 using a jumper!
As previously mentioned, the MSP430 comes pre-programmed to control basic DC motor operation. If it is
desired to change the firmware via the external ez430 development tool, it is not necessary or
recommended to provide any input power to the DRV8838EVM. Power is provided from the ez430 board.
2
DRV8838EVM User’s Guide SLVUA43–February 2014
Submit Documentation Feedback
Copyright © 2014, Texas Instruments Incorporated
