2/15
Schneider Electric
2

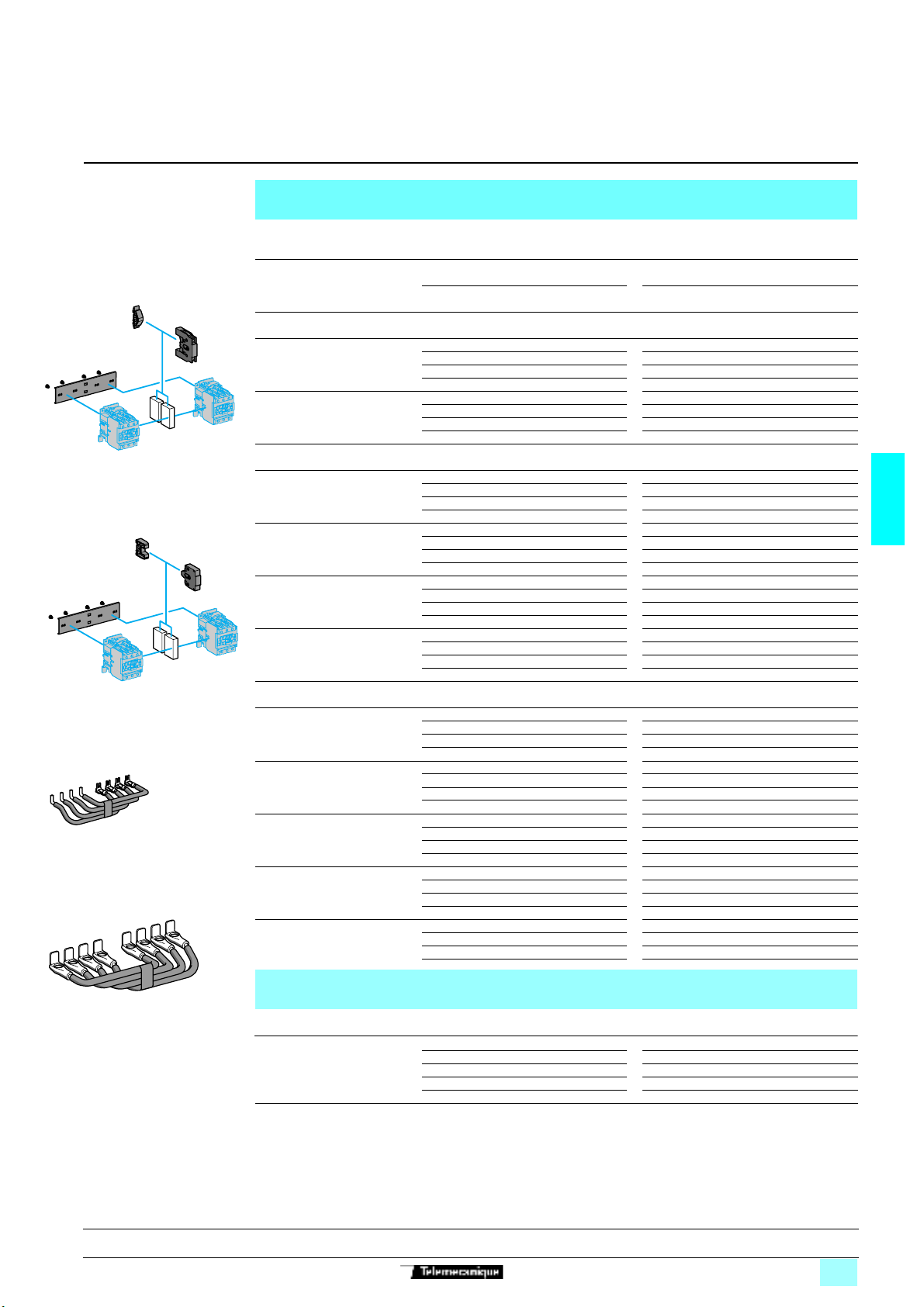

References
TeSys contactors
Component parts for assembling
changeover contactor pairs for distribution
Including mechanical interlock with integral electrical interlocking
(1)
To order the 2 contactors: see pages
2/9
and
2/10
.
(2) Including mechanical interlock.
(3) Order 2 contact blocks LAD-N/1 to obtain electrical interlocking between the contactors, see page
2/17
.
For 4-pole changeover contactor pairs
(3-phase distribution + neutral)
Contactors with screw clamp terminals or connectors
Horizontally mounted, assembled by customer
Using Set of
Mechanical
2 identical power connections
interlock
contactors (1) Reference Weight
Reference
Weight
kg
of kit
kg
Including mechanical interlock and an electrical interlocking kit for the contactors
LC1-DT20…DT32
LAD-T9R1V
1(2) 0.040
–
–
LC1-DT40 and DT60
LAD-T9R2V
1(2) 0.045
––
Including mechanical interlock with integral electrical interlocking
LC1-D65004
LA9-D6570
0.150
LA9-D4002
0.170
LC1-D80004
LA9-D8070
0.280
LA9-D4002
0.170
LP1-D80004
LA9-D8070
0.280
LA9-D8002
0.170
LC1-D115004
LA9-D11570
1.100
LA9-D11502
0.280
Including mechanical interlock without electrical interlocking (3)
LC1-DT20…DT32
LAD-T9R1
1(2) 0.035
––
LC1-DT40 and DT60
LAD-T9R2
1(2) 0.040
––
LC1 or LP1-D65004
LA9-D6570
0.150
LA9-D50978
0.155
LC1-D80004
LA9-D8070
0.280
LA9-D50978
0.155
LP1-D80004
LA9-D8070
0.280
LA9-D80978
0.180
For 3-pole changeover contactor pairs
LA9-D4002
810384
LA9-D6570
810379
LA9-D50978
810383
LA9-D8070
810380
LC1-D115 and D150 LA9-D11571 0.960
LA9-D11502
0.280
Selection:
pages 1/6 to 1/9
Characteristics:
pages 2/32 to 2/37
Dimensions, schemes:
pages
2/50
and
2/51
1 Available
4th quarter 2001.
