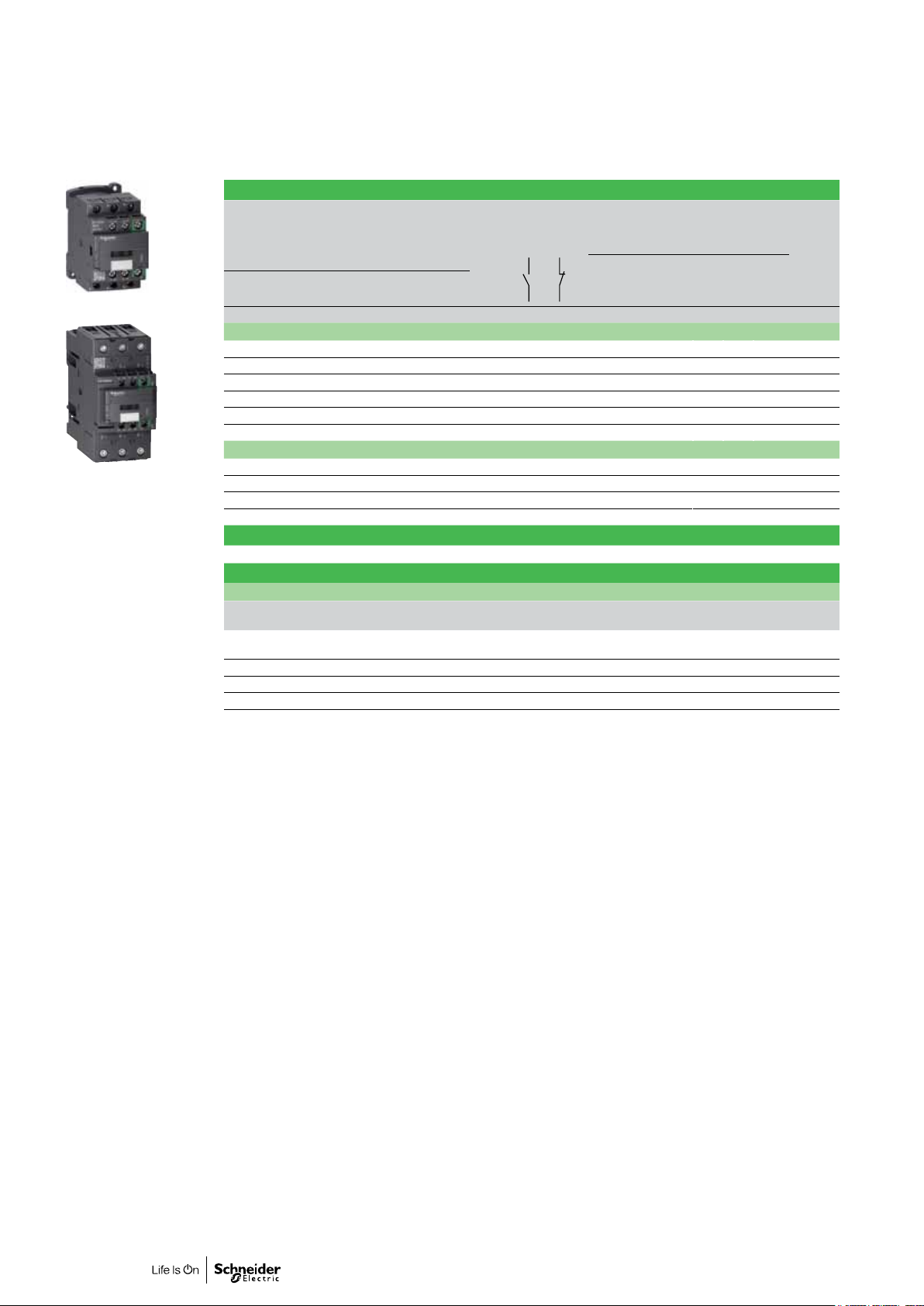

6
References
TeSys D Green contactors
For motor control up to 37 kW / 400 V Category AC-3
LC1 D09ppp
PB116859.eps
LC1 D40Appp
PB116857.eps
3-pole contactors
Standard power ratings of 3-phase motors
50-60 Hz in category AC-3
(q y 60 °C)
Rated
opera-
tional
current
in AC-3
440 V
up to
Instan-
taneous
auxiliary
contacts
Basic reference,
to be completed by adding
the control voltage code
Weight
Fixing
(1)
220 V
230 V
380 V
400 V
415 V 440 V 500 V 660 V
690 V
kW kW kW kW kW kW A kg
Connection by screw clamp terminals
2.2 4 4 4 5.5 5.5 9 1 1 LC1D09ppp 0.368
3 5.5 5.5 5.5 7.5 7.5 12 1 1 LC1D12ppp 0.373
4 7.5 9 9 10 10 18 1 1 LC1D18ppp 0.378
5.5 11 11 11 15 15 25 1 1 LC1D25ppp 0.433
7.5 15 15 15 18.5 18.5 32 1 1 LC1D32ppp 0.438
9 18.5 18.5 18.5 18.5 18.5 38 1 1 LC1D38ppp 0.442
Power connections by EverLink
®
BTR
(2)
screw connectors and control by screw clamp terminal
11 18.5 22 22 22 30 40 1 1 LC1D40Appp 0.992
15 22 25 30 30 33 50 1 1 LC1D50Appp 0.997
18.5 30 37 37 37 37 65 1 1 LC1D65Appp 1.002
22 37 37 37 45 45 80 1 1 LC1D80Appp
(3)
1.002
Auxiliary contact blocks and add-on modules
See pages 10 to 14.
Control voltage codes
AC/DC supply
Volts 24 (DC only) 24-60 48-130 100-250 250 V - 415 V AC /
250 V - 500 V DC
LC1D09 ...D38,
LC1D40A ... D80A
U 0.85...1.1 Uc BNE EHE KUE USE
(3)
LC1D40A ... D80A
U 0.8…1.2 Uc BBE
(1) LC1 D09 to D80A: clip-on mounting on 35 mm 5 rail AM1 DP or screw xing.
(2) BTR screws: hexagon socket head. In accordance with local electrical wiring regulations, a size 4 insulated Allen key must be
used (reference LAD ALLEN4, see page 14).
(3) Available end of 2017.
