1
SNVU498–May 2016
Submit Documentation Feedback
Copyright © 2016, Texas Instruments Incorporated
LMR16010PEVM User's Guide
User's Guide
SNVU498–May 2016
LMR16010PEVM User's Guide
The Texas Instruments LMR16010PEVM evaluation module (EVM) helps designers evaluate the
operation and performance of the LMR16010 wide-input Simple Switcher® buck regulator. This document
describes the setup and the input / output connections of the EVM. Included are the board layout,
schematic, and bill of materials.
1 Introduction
The LMR16010 is a 60 V, 1 A step-down regulator with 40 µA quiescent current. With a wide-input range
from 4.3 V to 60 V, it is suitable for a wide range of applications from automotive to industry for power
conditioning from unregulated sources. The LMR16010PEVM evaluation board is designed to provide the
design engineer with a fully functional power converter based on the buck topology to evaluate the
LMR16010 series operation and performance.

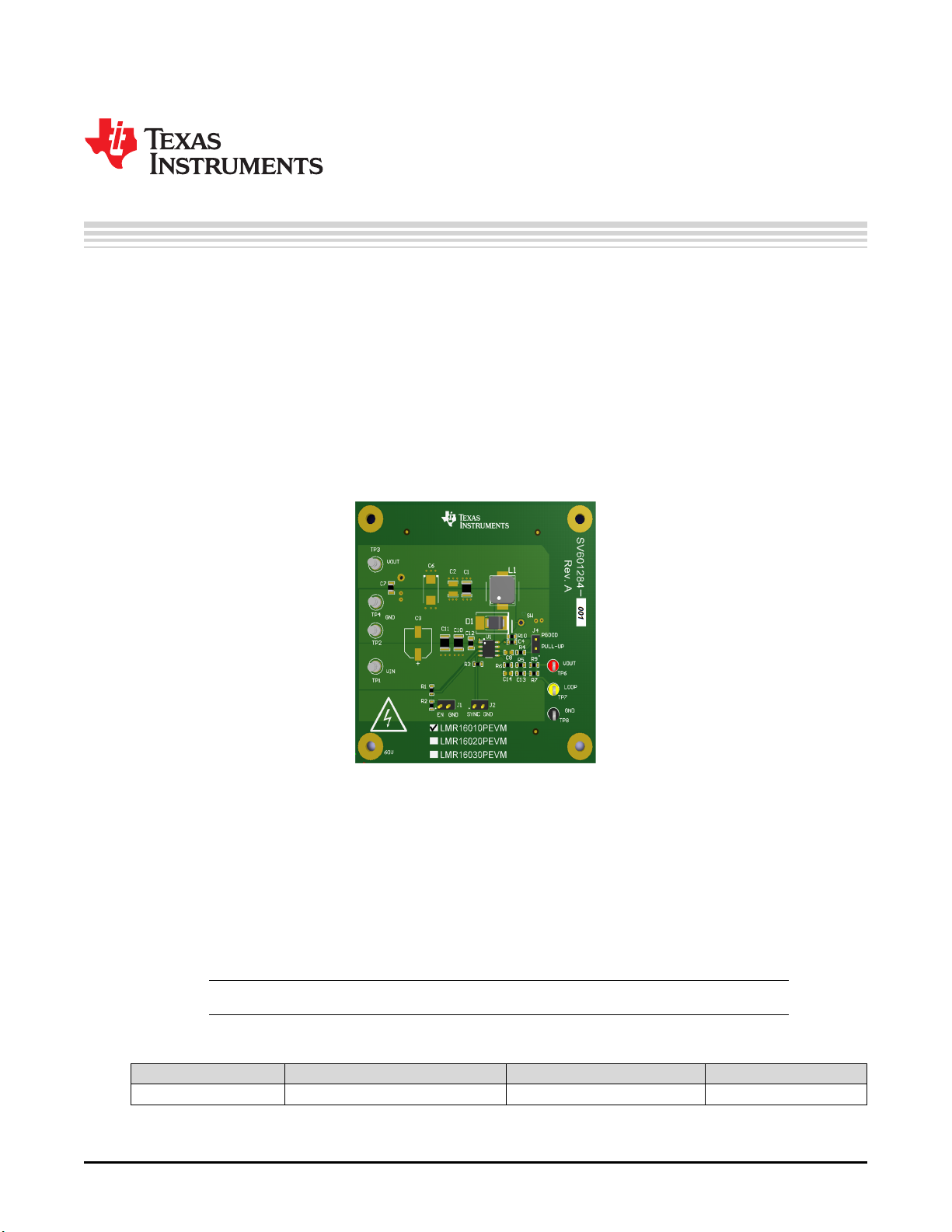

Figure 1. LMR16010PEVM Board
EVM Features
• 7 V to 60 V Input Voltage Range
• 5 V Output Voltage
• Up to 1 A Output Current
• Switching Frequency 700 kHz
• Power Good Flag Output
• Internal Compensation
NOTE: Risk of Electric Shock for Voltage Exceeding 50 VDC
Table 1. Device and Package Configurations
CONVERTER EVM IC PACKAGE
U1 LMR16010PEVM LMR16010PDDAR SO-8
