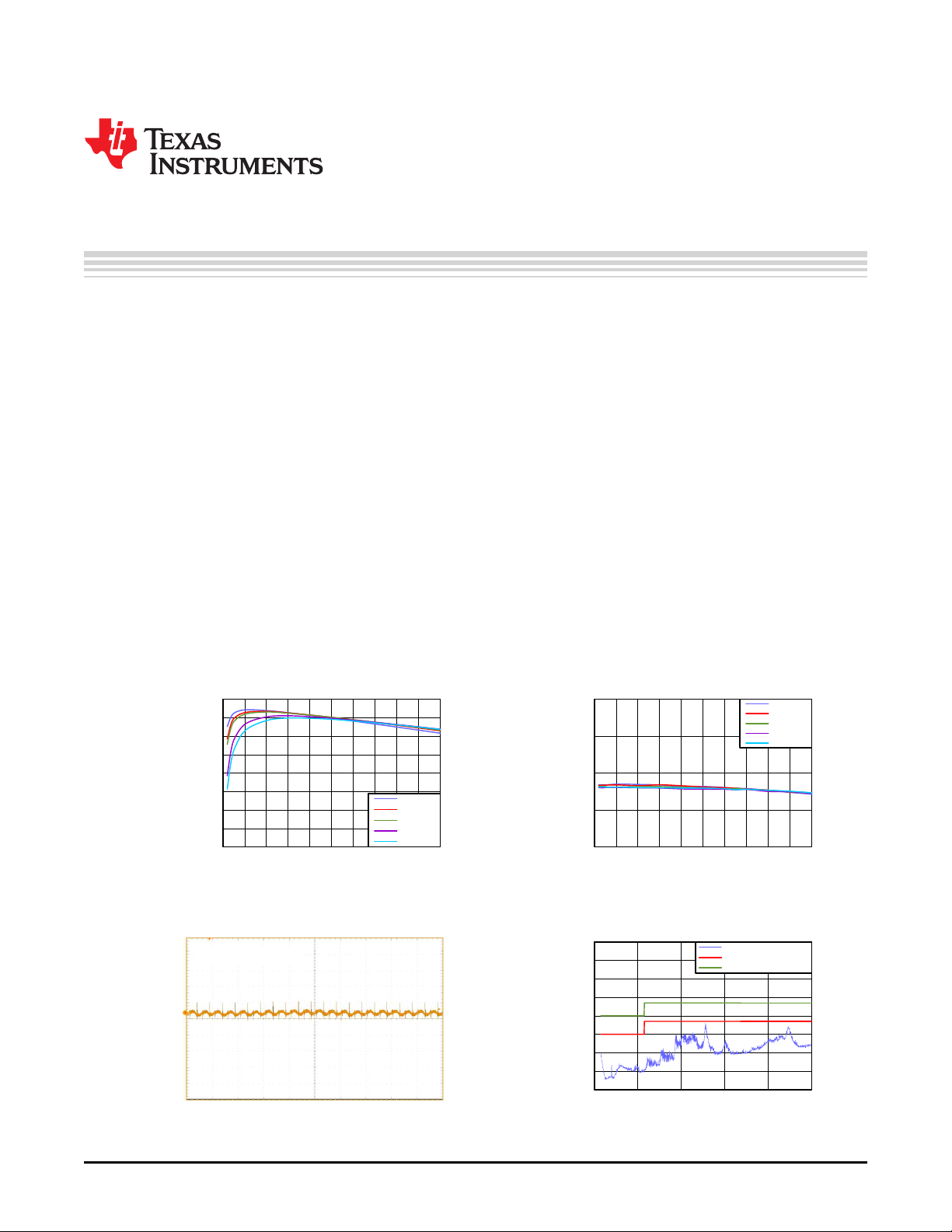

User's Guide
SNVU313–December 2011
LMZ10501SIL and LMZ10500SIL SIMPLE SWITCHER
®
Nano Module Evaluation Board
1 Introduction
The LMZ10501 and LMZ10500 Evaluation Board is configured for 1.8V output voltage from 2.7V to 5.5V
input. The resistor voltage divider R
T
and R
B
set the output voltage. The external capacitor C
VC
bypasses
the V
CON
pin and provides additional soft start time. For component selection and device information
details, see the device-specific data sheet. The board features additional component footprints for various
device enabling schemes and AC signal injection terminals for feedback loop measurements. The
evaluation board with its default Bill of Materials offers great EMI performance, complying with the EN
55022 Class B radiated emissions standard.
2 Board Specifications
• V
IN
= 2.7V to 5.5V, V
OUT
= 1.8V (default setting)
• 1A max load (LMZ10501), 650mA max load (LMZ10500)
• 2MHz switching frequency, Low radiated EMI (EN 55022 Class B compliant)
• 4.3 x 4.3 cm (1700 x 1700 mil) PCB size, 4 layers PCB with 1oz copper
3 Typical Performance Characteristics
Efficiency V
OUT
= 1.8V Line and Load Regulation
Output Ripple Radiated EMI
V
IN
= 5V, V
OUT
= 1.8V, I
OUT
= 1A V
IN
= 5V, V
OUT
= 1.8V, I
OUT
= 1A
SIMPLE SWITCHER is a registered trademark of Texas Instruments.
1
SNVU313–December 2011 LMZ10501SIL and LMZ10500SIL SIMPLE SWITCHER
®
Nano Module
Evaluation Board
Submit Documentation Feedback
Copyright © 2011, Texas Instruments Incorporated
