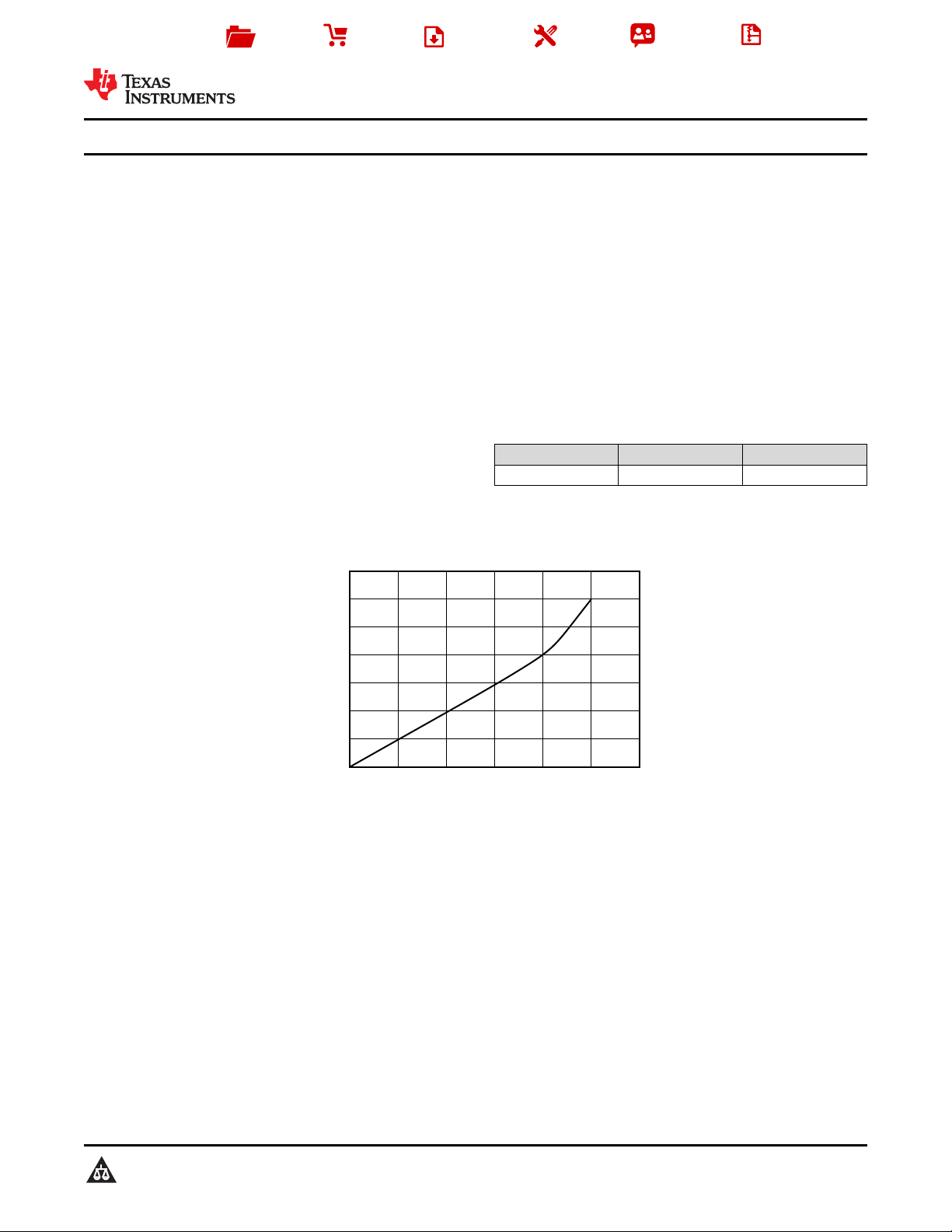

350
300
250
200
150
100
50
0
Dropout Voltage (mV)
0 5 10 15 20 25 30
Load Current (mA)
Product
Folder
Sample &
Buy
Technical
Documents
Tools &
Software
Support &
Community
Reference
Design
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
REF2912
,
REF2920
,
REF2925
REF2930
,
REF2933
,
REF2940
SBVS033C –JUNE 2002–REVISED JUNE 2016
REF29xx 100 ppm/°C, 50 µA in 3-Pin SOT-23 CMOS Voltage Reference
1
1 Features
1
• MicroSIZE Package: SOT-23
• Low Dropout: 1 mV
• High Output Current: 25 mA
• Low Temperature Drift: Maximum of 100 ppm/°C
• High Accuracy: 2%
• Low I
Q
: Maximum of 50 µA
2 Applications
• Portable, Battery-Powered Equipment
• Data Acquisition Systems
• Medical Equipment
• Hand-Held Test Equipment
3 Description
The REF29xx is a precision, low-power, low-voltage
dropout voltage reference family available in a tiny
3‑pin SOT-23 package.
The small size and low power consumption (50 µA
maximum) of the REF29xx make it ideal for portable
and battery-powered applications. The REF29xx does
not require a load capacitor, but it is stable with any
capacitive load.
Unloaded, the REF29xx can be operated with
supplies within 1 mV of output voltage. All models are
specified for the wide temperature range, –40°C to
125°C.
Device Information
(1)
PART NUMBER PACKAGE BODY SIZE (NOM)
REF29xx SOT-23 (3) 2.92 mm × 1.30 mm
(1) For all available packages, see the orderable addendum at
the end of the data sheet.
Dropout Voltage vs Load Current
