SCRs Data Sheets
http://www.littelfuse.com E6 - 2 ©2004 Littelfuse, Inc.
+1 972-580-7777 Thyristor Product Catalog
Specific Test Conditions
di/dt — Maximum rate-of-rise of on-state current; I
GT
= 150 mA with
≤ 0.1 µs rise time
dv/dt — Critical rate of applied forward voltage
I
2
t — RMS surge (non-repetitive) on-state current for period of 8.3 ms
for fusing
I
DRM
and I
RRM
— Peak off-state forward and reverse current at V
DRM
and
V
RRM
I
gt
— dc gate trigger current; V
D
= 12 V dc; R
L
= 60 Ω for 1 to 16 A
devices and 30 Ω for 20 to 70 A devices
I
GM
— Peak gate current
I
H
— dc holding current; gate open
I
T
— Maximum on-state current
I
TSM
— Peak one-cycle forward surge current
P
G(AV)
— Average gate power dissipation
P
GM
— Peak gate power dissipation
t
gt
— Gate controlled turn-on time; gate pulse = 100 mA; minimum
width = 15 µs with rise time ≤ 0.1 µs
t
q
— Circuit commutated turn-off time
V
DRM
and V
RRM
— Repetitive peak off-state forward and reverse voltage
V
gt
— DC gate trigger voltage; V
D
= 12 V dc; R
L
= 60 Ω for 1 to 16 A
devices and 30 Ω for 20 to 70 A devices
V
TM
— Peak on-state voltage at maximum rated RMS current
General Notes
• All measurements are made at 60 Hz with a resistive load at an
ambient temperature of +25 °C unless otherwise specified.
• Operating temperature range (T
J
) is -65 °C to +125 °C for TO-92
devices and -40 °C to +125 °C for all other packages.
• Storage temperature range (T
S
) is -65 °C to +150 °C for TO-92
devices, -40 °C to +150 °C for TO-202 and TO-220 devices, and
-40 °C to +125 °C for all others.
• Lead solder temperature is a maximum of 230 °C for 10 seconds
maximum; ≥1/16" (1.59 mm) from case.
• The case temperature (T
C
) is measured as shown on dimensional
outline drawings in the “Package Dimensions” sectionof this
catalog.

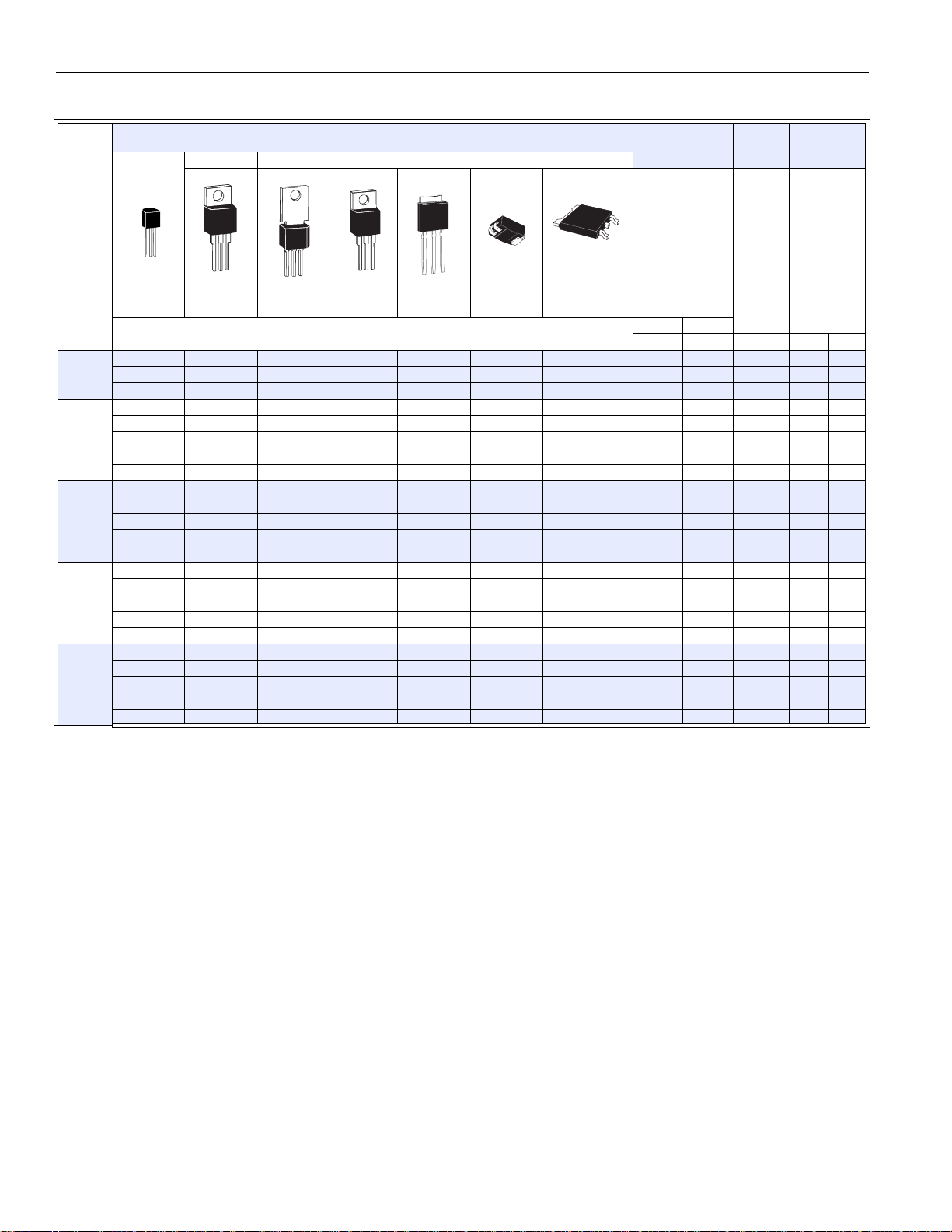

TYPE
Part Number
I
T
V
DRM
& V
RRM
I
GT
Isolated Non-isolated
TO-92
TO-220 TO-202
TO-220
TO-251
V-Pak Compak
TO-252
D-Pak
(1) (2) (15)
Amps
Volts
(4)
mAmps
See “Package Dimensions” section for variations. (11)
I
T(RMS)
I
T(AV)
MAX MAX MIN MIN MAX
1A
S201E S2N1 1 0.64 200 1 10
S401E S4N1 1 0.64 400 1 10
S601E S6N1 1 0.64 600 1 10
6A
S2006L S2006F1 S2006V S2006D 6 3.8 200 1 15
S4006L S4006F1 S4006V S4006D 6 3.8 400 1 15
S6006L S6006F1 S6006V S6006D 6 3.8 600 1 15
S8006L S8006V S8006D 6 3.8 800 1 15
SK006L SK006V SK006D 6 3.8 1000 1 15
8A
S2008L S2008F1 S2008R S2008V S2008D 8 5.1 200 1 15
S4008L S4008F1 S4008R S4008V S4008D 8 5.1 400 1 15
S6008L S6008F1 S6008R S6008V S6008D 8 5.1 600 1 15
S8008L S8008R S8008V S8008D 8 5.1 800 1 15
SK008L SK008R SK008V SK008D 8 5.1 1000 1 15
10 A
S2010L S2010F1 S2010R S2010V S2010D 10 6.4 200 1 15
S4010L S4010F1 S4010R S4010V S4010D 10 6.4 400 1 15
S6010L S6010F1 S6010R S6010V S6010D 10 6.4 600 1 15
S8010L S8010R S8010V S8010D 10 6.4 800 1 15
SK010L SK010R SK010V SK010D 10 6.4 1000 1 15
12 A
S2012R S2012V S2012D 12 7.6 200 1 20
S4012R S4012V S4012D 12 7.6 400 1 20
S6012R S6012V S6012D 12 7.6 600 1 20
S8012R S8012V S8012D 12 7.6 800 1 20
SK012R SK012V SK012D 12 7.6 1000 1 20
K
G
A
K
A
G
K
A
G
A
K
A
G
A
A
A
G
K
A
G
K
A
A
K
G
