EVAL-AD5232DBZ User Guide
UG-626
One Technology Way P. O. Box 9106 Norwood, MA 02062-9106, U.S.A. Tel: 781.329.4700 Fax: 781.461.3113 www.analog.com
Evaluation Board for the AD5232 Digital Potentiometer
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Rev. 0 | Page 1 of 16
FEATURES
Full featured evaluation board used in conjunction with
low voltage digiPOT motherboard (EVAL-MB-LV-SDZ)
Multiple test circuits
Multiple ac/dc input signals
PC control via a separately purchased system demonstration
platform (SDP-B or SDP-S)
PC software for control
EVALUATION KIT CONTENTS
EVAL-AD5232DBZ evaluation board
EVAL-MB-LV-SDZ motherboard
CD that includes
Self-installing software that allows users to control the
board and exercise all functions of the device
Electronic version of the AD5232 data sheet
Electronic version of the EVAL-AD5232DBZ user guide
GENERAL DESCRIPTION
This user guide describes the evaluation boards for evaluating the
AD5232, a single-channel, 256-position, SPI-compatible digital
potentiometer.
The AD5232 supports single-supply 2.7 V to 5.5 V operation,
making the device suitable for battery-powered applications and
many applications requiring superior low temperature coefficient
performance.
In addition, the AD5232 uses a versatile SPI-compatible serial
interface that operates in fast mode, allowing speeds of up to
50 MHz. This interface can be used to read back the wiper register.
The E VAL -AD5232DBZ daughter board and the E VAL -MB-
LV-SDZ motherboard can operate in single-supply mode and
incorporate an internal power supply from the USB.
Complete specifications for the AD5232 can be found in the
AD5232 data sheet, which is available from www.analog.com
and should be consulted in conjunction with this user guide
when using the evaluation board.

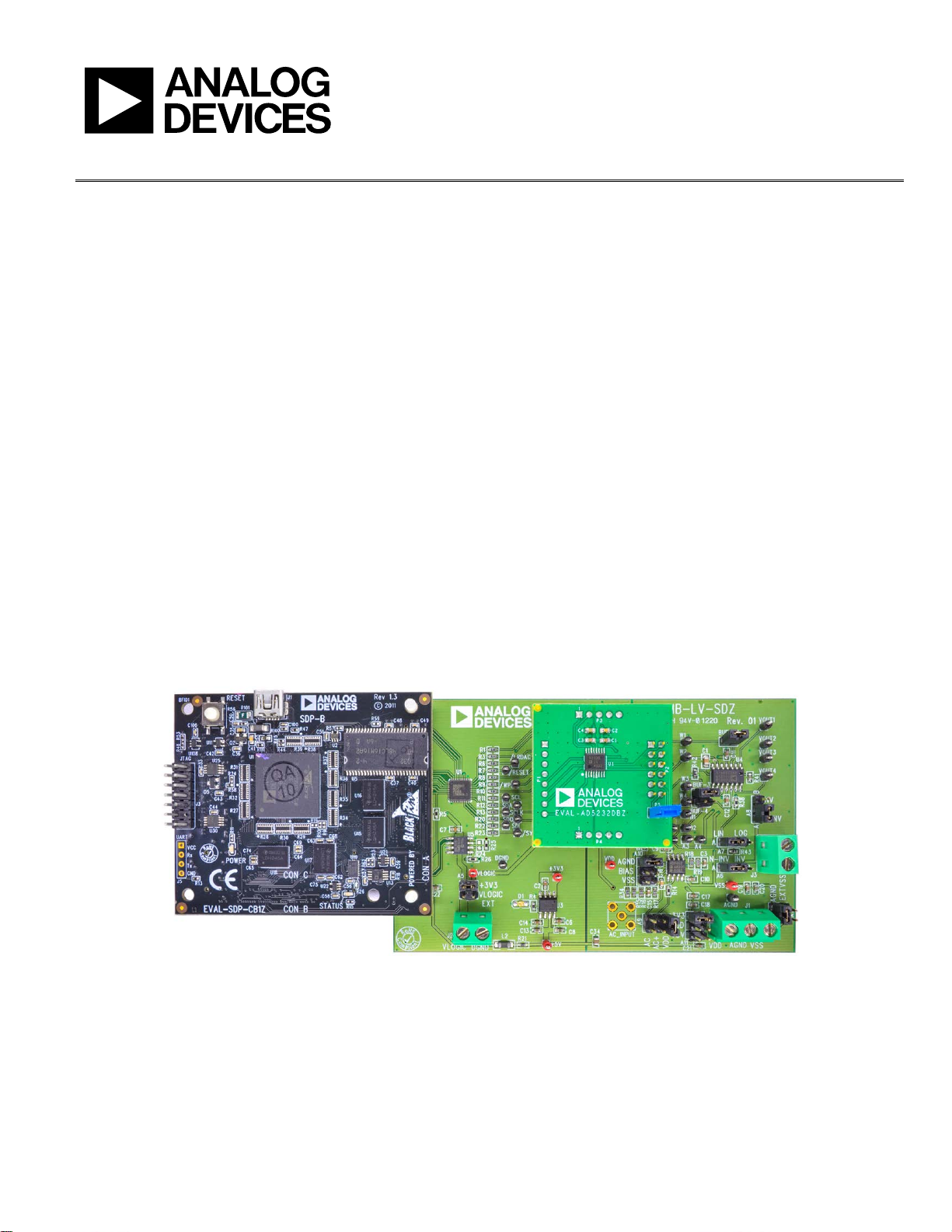

PHOTOGRAPH OF EVAL-AD5232DBZ WITH MOTHERBOARD AND SDP-B
11878-001
Figure 1. Digital Picture of Evaluation Board with Low Voltage DigiPOT Motherboard and System Demonstration Platform
