Digitally Programmable Sensor Signal
Amplifier with EMI Filters
Data Sheet
AD8556
FEATURES
EMI filters at input pins
Specified from −40°C to +140°C
Low offset voltage: 10 µV maximum
Low input offset voltage drift:
65 nV/°C maximum
High CMRR: 94 dB minimum
Digitally programmable gain and output offset voltage
Programmable output clamp voltage
Open and short wire fault detection
Low-pass filtering
Single-wire serial interface
Stable with any capacitive load
SOIC_N and LFCSP_WQ packages
4.5 V to 5.5 V operation
APPLICATIONS
Pressure and position sensors
Precision current sensing
Strain gages

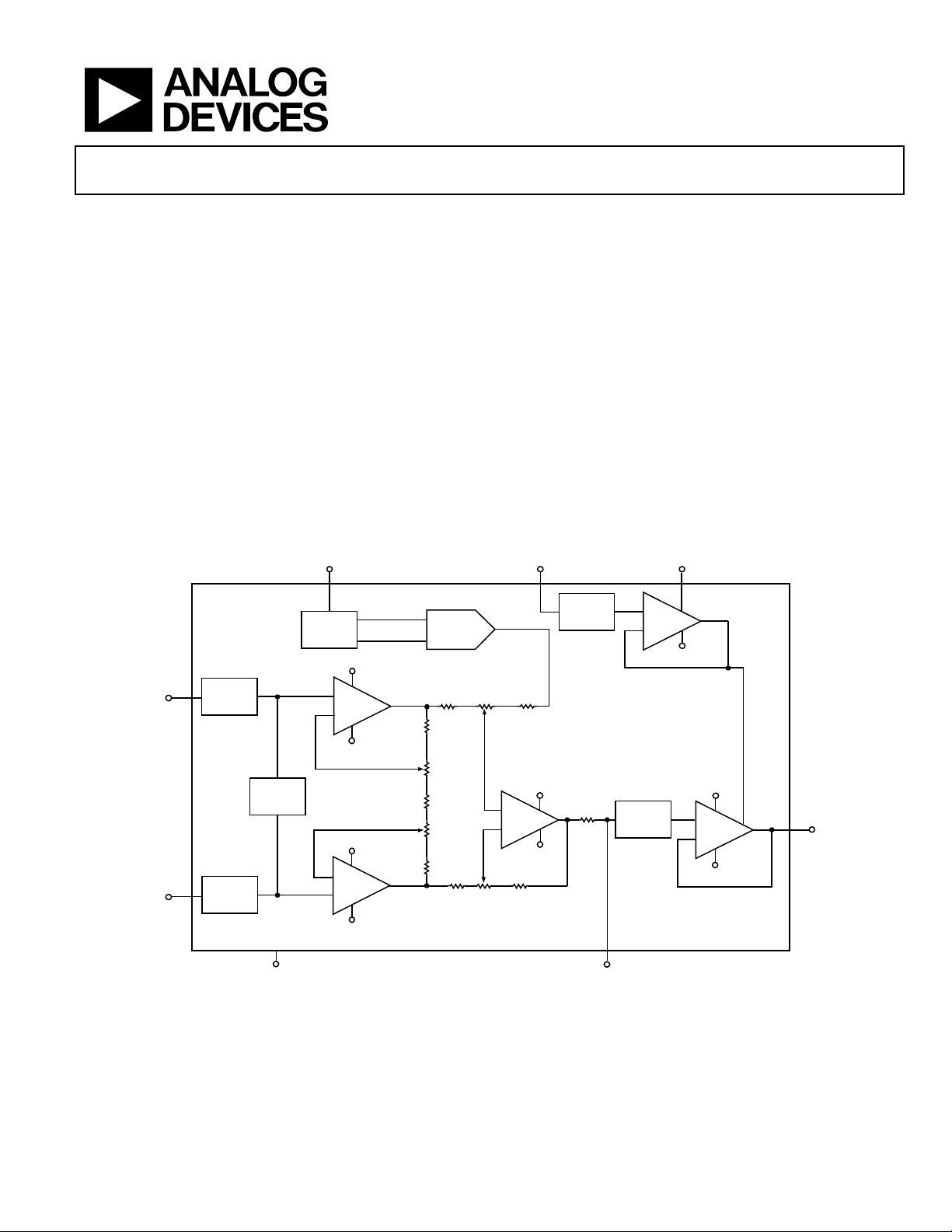

FUNCTIONAL BLOCK DIAGRAM
05448-053
VDD
VSS
1
2
3
+IN
–IN
OUT
A3
VDD
VSS
1
2
3
+IN
–IN
OUT
A4
V
OUT
VDD
VSS
1
2
3
+IN
–IN
OUT
A2
VDD
VSS
1
2
3
+IN
–IN
OUT
A1
VSS
1
2
3
+IN
–IN
OUT
A5
R7P4R5
VDDDIGIN
VCLAMP
R3
P2
P1
R1
R2
R4 R5
P3
VNEG
VPOS
DAC
LOGIC
EMI
FILTER
EMI
FILTER
EMI
FILTER
RF
EMI
FILTER
FILT/DIGOUT
AD8556
VSS
EMI
FILTER
F
igure 1.
Re
v. B
Document Feedback
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
O
ne Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781.329.4700 ©2005–2015 Analog Devices, Inc. All rights reserved.
