Data Sheet
March 30, 2008
12V Austin Lynx
TM
SIP Non-isolated Power Modules, Programmable:
10Vdc – 14Vdc input; 0.75Vdc to 5.5Vdc Output;10A Output Current
* UL is a registered trademark of Underwriters Laboratories, Inc.
†
CSA is a registered trademark of Canadian Standards Association.
‡
VDE is a trademark of Verband Deutscher Elektrotechniker e.V.
** ISO is a registered trademark of the International Organization of Standards
Document No: DS03-098 ver. 1.41
PDF name: austin lynx sip 12v x3.pdf
Applications
Distributed power architectures
Intermediate bus voltage applications
Telecommunications equipment
Servers and storage applications
Networking equipment
Enterprise Networks
Latest generation IC’s (DSP, FPGA, ASIC)
and Microprocessor powered applications
Features
Compliant to RoHS EU Directive 2002/95/EC (-Z
versions)
Compliant to ROHS EU Directive 2002/95/EC with
lead solder exemption (non-Z versions)
Delivers up to 10A output current
High efficiency – 93% at 3.3V full load (V
IN
= 12.0V)
Small size and low profile:
50.8 mm x 12.7 mm x 8.10 mm
(2.00 in x 0.5 in x 0.32 in)
Low output ripple and noise
High Reliability:
Calculated MTBF = 4.4 M hours at 25
o
C Full-load
Constant switching frequency (300 kHz)
Output voltage programmable from 0.75 Vdc to
5.5Vdc via external resistor
Line Regulation: 0.3% (typical)
Load Regulation: 0.4% (typical)
Temperature Regulation: 0.4 % (typical)
Remote On/Off
Remote Sense
Over temperature protection
Output overcurrent protection (non-latching)
Wide operating temperature range (-40°C to 85°C)
UL* 60950-1Recognized, CSA
†
C22.2 No. 60950-1-
03 Certified, and VDE
‡
0805:2001-12 (EN60950-1)
Licensed
ISO** 9001 and ISO 14001 certified manufacturing
facilities
Description

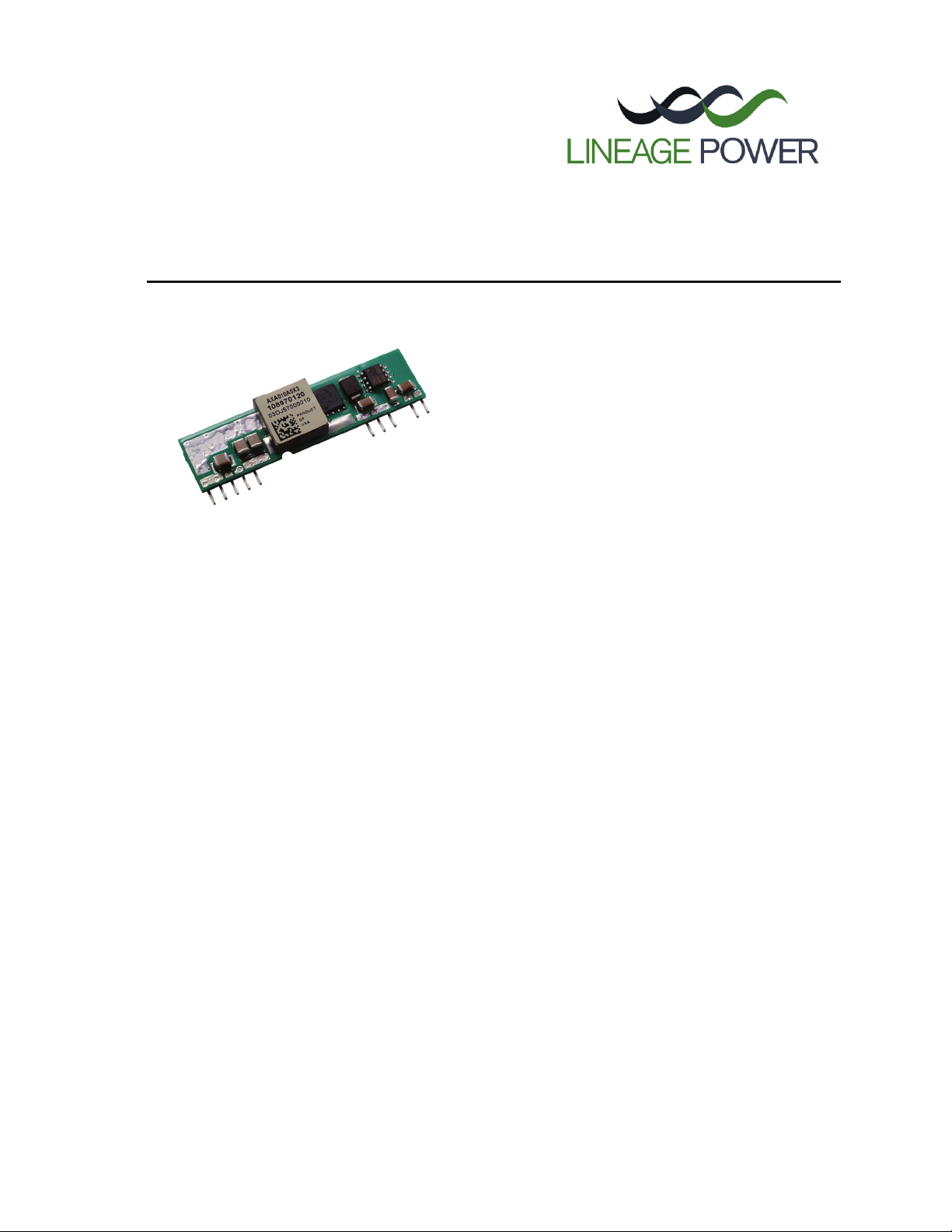

The 12V Austin Lynx
TM
Programmable SIP power modules are non-isolated dc-dc converters that can deliver up to
10A of output current with full load efficiency of 93% at 3.3V output. These modules provide a precisely regulated
output voltage ranging from 0.75Vdc to 5.5Vdc, programmable via an external resistor over a wide range of input
voltage (V
IN
= 10 – 14Vdc). Their open-frame construction and small footprint enable designers to develop cost-
and space-efficient solutions. Standard features include remote On/Off, remote sense, output voltage adjustment,
overcurrent and overtemperature protection.
RoHS Compliant
