Summary

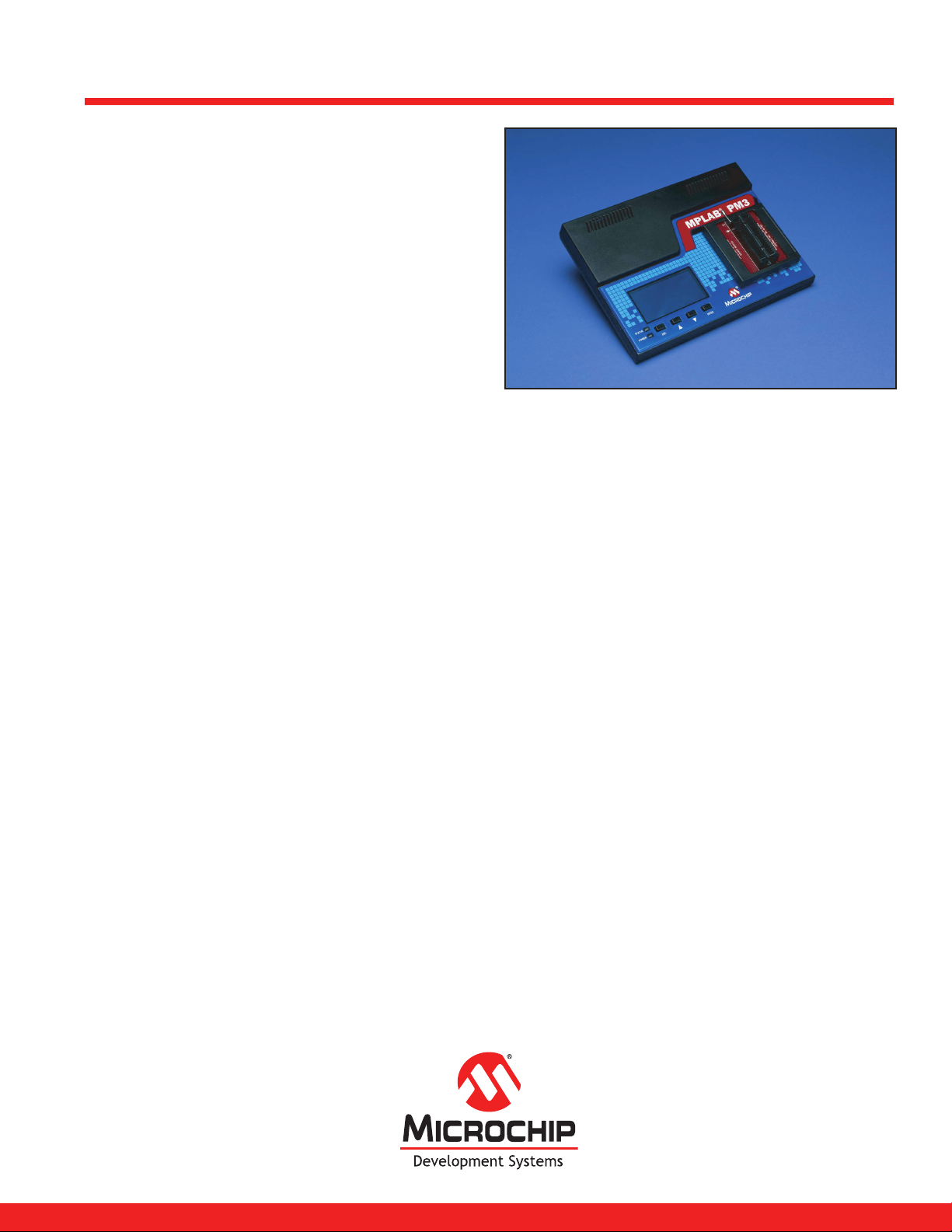

The MPLAB PM3 Universal Device Programmer is easy to

use and operates with a PC or as a stand-alone unit, and

programs Microchip's entire line of PICmicro®devices as

well as the latest dsPIC30F DSC devices. The MPLAB PM3

features a large and bright LCD unit (128x64 pixels) to

display easy menus, programming statistics and status

information.

programmable socket pins, allowing each socket module to

be configured to support many different devices, requiring

fewer socket modules to support the entire line of

Microchip parts. The socket modules use multi-pin

connectors for high reliability and quick interchange. An

adapter allows current PROMATE®II socket modules to be

used on the MPLAB PM3 programmer.

When connected to a PC-host system either via a serial or

USB port, the MPLAB PM3 programmer is seamlessly

integrated with the MPLAB Integrated Development

third party development tools, including compilers, low-cost

in-circuit debuggers and full-featured in-circuit emulators.

Features

Key features of the MPLAB PM3 Programmer include:

· RS-232 or USB interface

· Integrated In Circuit Serial Programming™ (ICSP™)

interface

· Fast programming time

· Three operating modes:

– PC Host mode for full control

Features (Continued)

· SQTP

SM

serialization for programming unique serial

numbers while in PC Host mode.

· An alternate DOS command line interface is available

for batch control

· Supports PROMATE II socket modules via adapter

(sold separately)

· Large easy-to-read display

· Field upgradeable firmware allows quick new device

· Serial Cable for RS-232 PC connection

· USB cable for USB PC connection

· ICSP cable

· Power supply and power cables

· MPLAB Integrated Development Environment CD

· User’s Guide and technical documentation on CD

Host System Requirements

· PC-compatible system with an Intel Pentium®class or

higher processor, or equivalent

·

Serial or USB port
