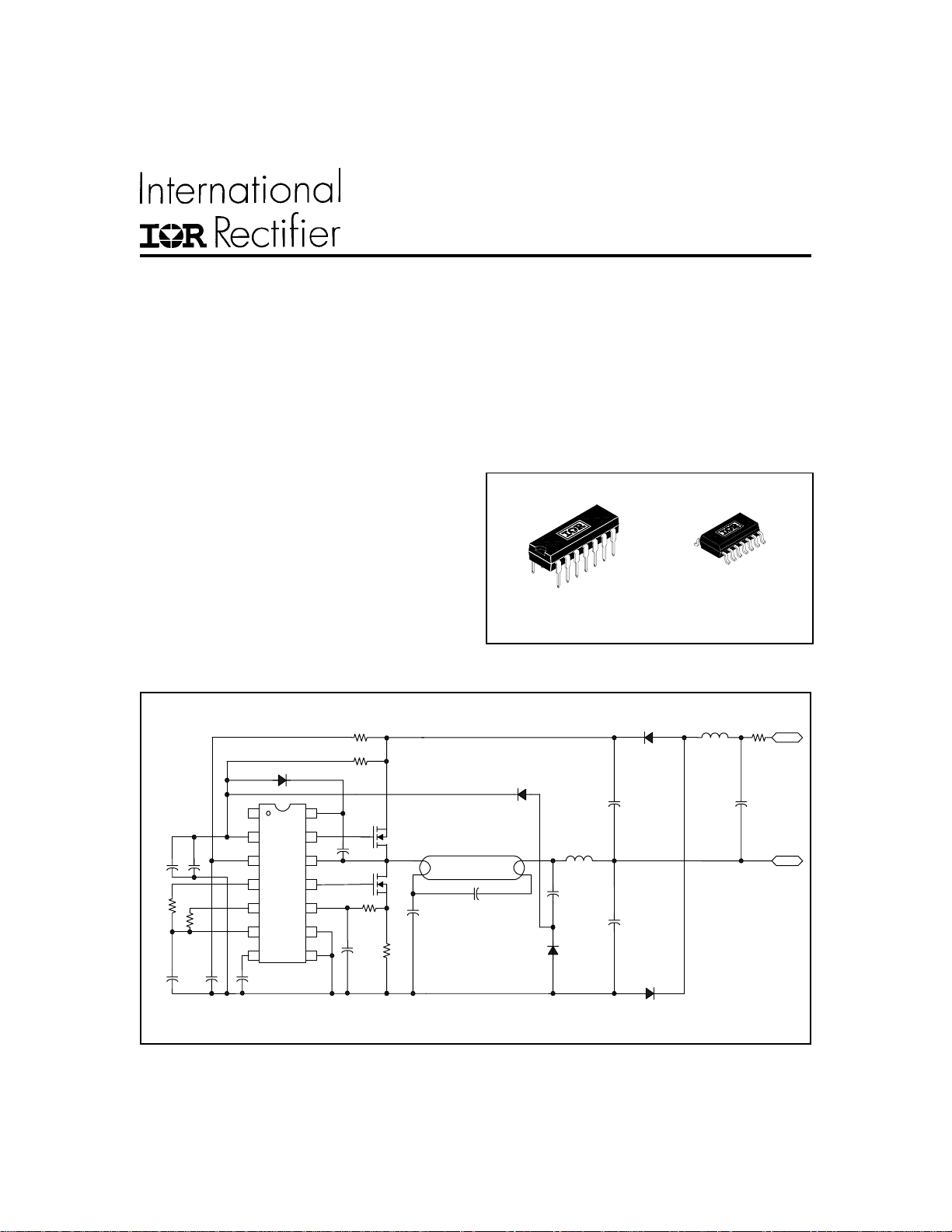

Features
•
Ballast control and half-bridge driver in one IC
•
Programmable preheat frequency
•
Programmable preheat time
•
Internal ignition ramp
•
Programmable over-current threshold
•
Programmable run frequency
Data Sheet No. PD60182-I
BALLAST CONTROL IC
CFL Application Diagram
•
Programmable dead time
•
DC bus under-voltage reset
•
Shutdown pin with hysteresis
•
Internal 15.6V zener clamp diode on Vcc
•
Micropower startup (150µA)
•
Latch immunity and ESD protection
•
Also available LEAD-FREE (PbF)
Description
The IR2156 incorporates a high voltage half-bridge
gate driver with a programmable oscillator and state
diagram to form a complete ballast control IC. The
IR2156 features include programmable preheat and
run frequencies, programmable preheat time, program-
mable dead-time, and programmable over-current pro-
tection. Comprehensive protection features such as
protection from failure of a lamp to strike,filament fail-
ures, as well as an automatic restart function, have
been included in the design. The IR2156 is available in
both 14 lead PDIP and 14 lead SOIC packages.
www.irf.com 1
Packages
14 Lead PDIP
14 Lead SOIC
(narrow body)
L
RES
C
VCC1
M2
M1
1
2
3
4
5
6
7
14
13
12
11
10
9
8
IR2156
RT
RPH
VDC
CPH
CS
LO
VS
HO
VB
COM
C
BOOT
CT
SD
C
RES
L
N
NC
F1
L
FILTE
R
C
FILTE
R
R
PH
R
T
C
CPH
C
T
R
1
C
SNUB
C
CP
D
CP1
D
CP2
C
ELCAP1
C
ELCAP1
D
RECT1
D
RECT2
VCC
C
VCC2
C
VDC
D
BOOT
R
BUS
R
SUPPLY
R
CS
C
CS
IR2156
(
S
) & (PbF)
