AND8426/D
http://onsemi.com
3
For given V
IN+
and DV
IN
(i,e. Hysteresis Voltage) with fixed R2 and R4, we are required to evaluate R1 and R3 to complete

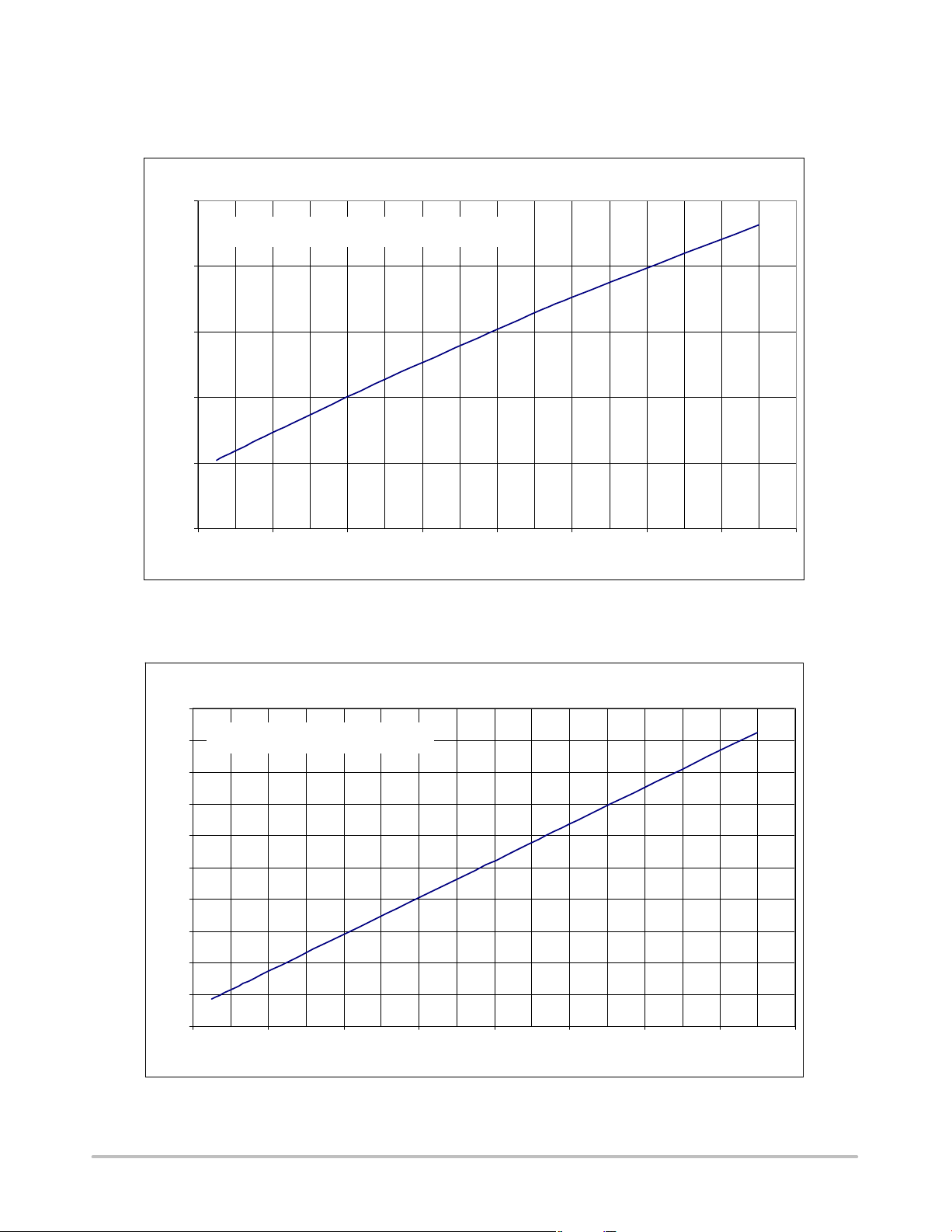

the system configuration. The charts shown at next page will help us how to evaluate R1 and R3. All the equations attached
at charts are formed by the method of linear regression using known values which are acquired from simulation results.
DVIN/VIN+ Ratio versus R3 (R1=10K, R2=3K, R4=100K)
0
0.05
0.1
0.15
0.2
0.25
0 2 4 6 8 10 12 14 16
R3 (Kohms)
DVIN/VIN+ Ratio
Figure 4. Chart for DV
IN
/V
IN+
Ratio versus R3
(DVIN/VIN+) = 0.0125* R3 + 0.0483
Figure 5. Chart for V
IN+
versus R3
VIN+ versus R3 (R1=10K, R2=3K, R4=100K)
5.6
5.7
5.8
5.9
6
6.1
6.2
6.3
6.4
6.5
6.6
0 24 681 01 21 4
R3 (Kohms)
VIN+ (V)
16
VIN+ = 0.0578* R3 + 5.6569
