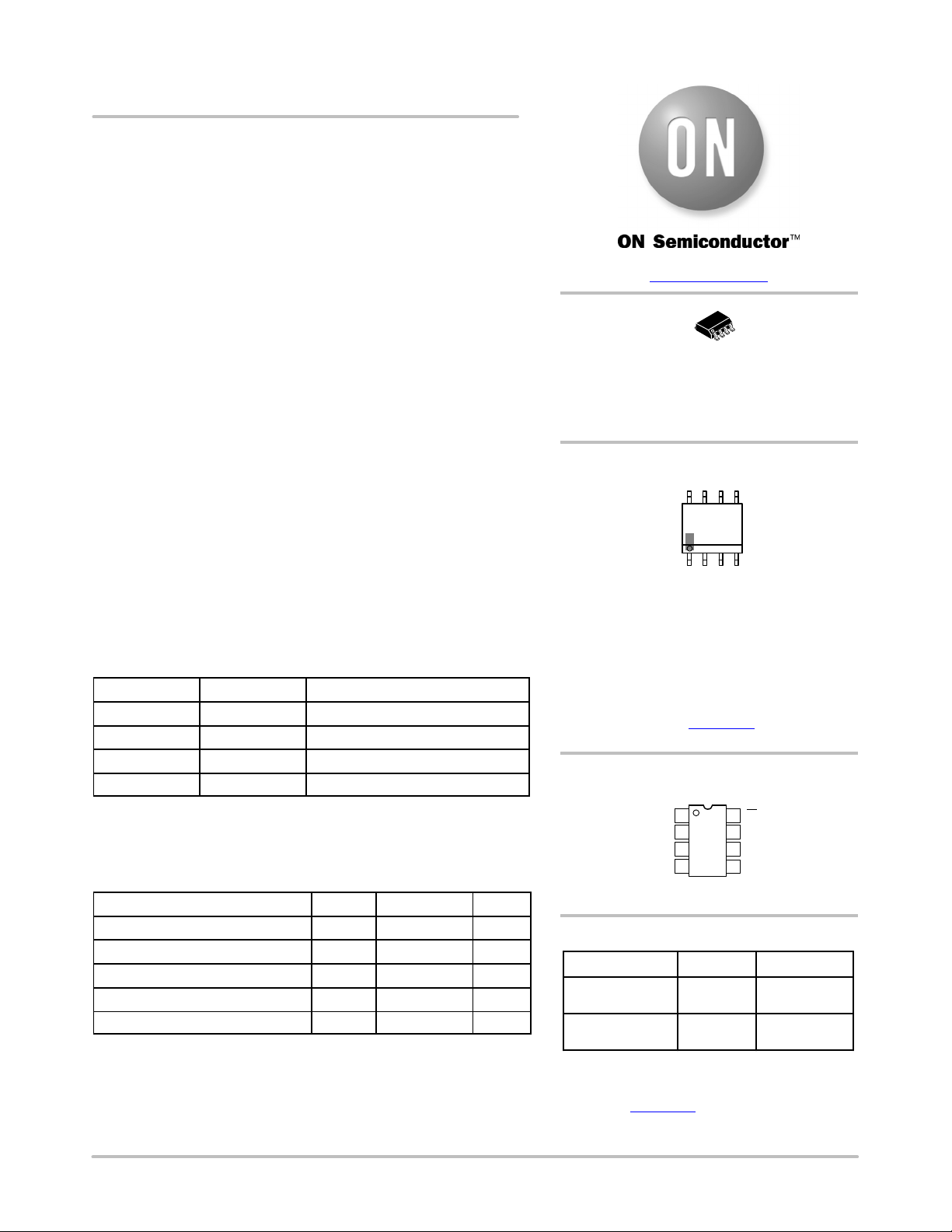

© Semiconductor Components Industries, LLC, 2016
August, 2016 − Rev. 9
1 Publication Order Number:
MC12026A/D
MC12026A
1.1GHz Dual Modulus
Prescaler
Description
The MC12026A is a high frequency, low voltage dual modulus
prescaler used in phase-locked loop (PLL) applications.
The MC12026A can be used with CMOS synthesizers requiring
positive edges to trigger internal counters in a PLL to provide tuning
signals up to 1.1 GHz in programmable frequency steps.
A Divide Ratio Control (SW) permits selection of an 8/9 or 16/17
divide ratio as desired.
The Modulus Control (MC) selects the proper divide number after
SW has been biased to select the desired divide ratio.
Features
• 1.1 GHz Toggle Frequency
• Supply Voltage 4.5 to 5.5 V
• Low Power 4.0 mA Typical
• Operating Temperature Range of −40 to 85°C
• The MC12026 is Pin Compatible with the MC12022
• Short Setup Time (t
set
) 6.0 ns Typical @ 1.1 GHz
• Modulus Control Input Level is Compatible with Standard CMOS
and TTL
• These Devices are Pb-Free, Halogen Free and are RoHS Compliant
Table 1. FUNCTIONAL TABLE
SW MC Divide Ratio
H H 8
H L 9
L H 16
L L 17
1. SW: H = V
CC
, L = Open. A logic L can also be applied by grounding this pin,
but this is not recommended due to increased power consumption.
2. MC: H = 2.0 V to V
CC
, L = GND to 0.8 V.
Table 2. MAXIMUM RATINGS
Characteristics Symbol Value Unit
Power Supply Voltage, Pin 2 V
CC
−0.5 to 7.0 Vdc
Operating Temperature Range T
A
−40 to 85 °C
Storage Temperature Range T
stg
−65 to 150 °C
Modulus Control Input, Pin 6 MC −0.5 to 6.5 Vdc
Maximum Output Current, Pin 4 I
O
10.0 mA
Stresses exceeding those listed in the Maximum Ratings table may damage the
device. If any of these limits are exceeded, device functionality should not be
assumed, damage may occur and reliability may be affected.
NOTE: ESD data available upon request.
www.onsemi.com
PIN CONNECTIONS
(Top View)
IN
8
IN
V
CC
SW
OUT
NC
MC
GND
7
6
5
1
2
3
4
SOIC−8NB
D SUFFIX
CASE
751−07
MARKING DIAGRAM*
A = Assembly Location
L = Wafer Lot
Y = Year
W = Work Week
G = Pb-Free Package
1
8
026A
ALYW
G
1
8
ORDERING INFORMATION
Device Package Shipping
†
MC12026ADG SOIC−8NB
(Pb-Free)
98 Units/Tube
MC12026ADR2G SOIC−8NB
(Pb-Free)
2500/Tape & Reel
†For information on tape and reel specifications, in-
cluding part orientation and tape sizes, please refer
to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D
.
(Note: Microdot may be in either location)
*For additional marking information, refer to
Application Note AND8002/D
.
