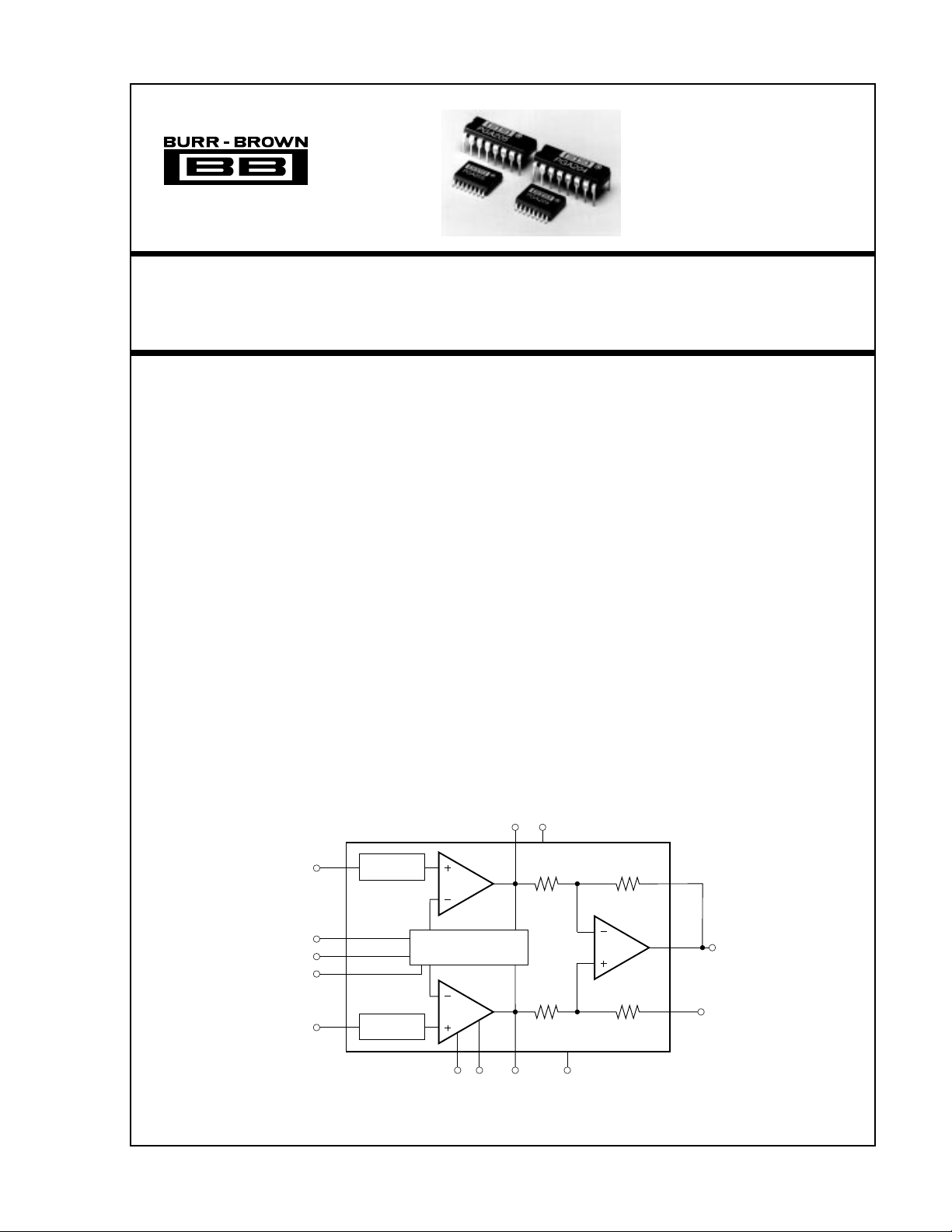

Programmable Gain
INSTRUMENTATION AMPLIFIER
FEATURES
● DIGITALLY PROGRAMMABLE GAIN:
PGA204: G=1, 10, 100, 1000V/V
PGA205: G=1, 2, 4, 8V/V
● LOW OFFSET VOLTAGE: 50
µV max
● LOW OFFSET VOLTAGE DRIFT: 0.25
µV/°C
● LOW INPUT BIAS CURRENT: 2nA max
● LOW QUIESCENT CURRENT: 5.2mA typ
● NO LOGIC SUPPLY REQUIRED
● 16-PIN PLASTIC DIP, SOL-16 PACKAGES
APPLICATIONS
● DATA ACQUISITION SYSTEM
● GENERAL PURPOSE ANALOG BOARDS
● MEDICAL INSTRUMENTATION
DESCRIPTION
The PGA204 and PGA205 are low cost, general pur-
pose programmable-gain instrumentation amplifiers
offering excellent accuracy. Gains are digitally se-
lected: PGA204—1, 10, 100, 1000, and PGA205—1,
2, 4, 8V/V. The precision and versatility, and low cost
of the PGA204 and PGA205 make them ideal for a
wide range of applications.
Gain is selected by two TTL or CMOS-compatible
address lines, A
0
and A
1
. Internal input protection can
withstand up to ±40V on the analog inputs without
damage.
The PGA204 and PGA205 are laser trimmed for very
low offset voltage (50µV), drift (0.25µV/°C) and high
common-mode rejection (115dB at G=1000). They op-
erate with power supplies as low as ±4.5V, allowing use
in battery operated systems. Quiescent current is 5mA.
The PGA204 and PGA205 are available in 16-pin
plastic DIP, and SOL-16 surface-mount packages, speci-
fied for the –40°C to +85°C temperature range.
®
©
