2010 Microchip Technology Inc. DS39592F-page 5
PIC18FX220/X320
2.3 Memory Map
The code memory space extends from 0000h to 1FFFh
(8 Kbytes) in a single 8-Kbyte panel. Addresses 0000h
through 01FFh, however, define a “Boot Block” region
that is treated separately from Panel 1. All code
memory is on-chip.
A user may store identification information (ID) in eight
ID registers. These ID registers are mapped in
addresses 200000h through 200007h. The ID locations
read out normally, even after code protection is applied.
Locations 300001h through 30000Dh are reserved
for the Configuration Words. These Words may be
set to select various device options and are
described in Section 5.0 “Configuration Word”.
These Configuration Words read out normally, even
after code protection.
Locations 3FFFFEh and 3FFFFFh are reserved for the
Device ID Words. These Words may be used by the
programmer to identify what device type is being
programmed and are described in Section 5.0
“Configuration Word”. These Configuration Words
read out normally, even after code protection.
TABLE 2-2: IMPLEMENTATION OF CODE MEMORY

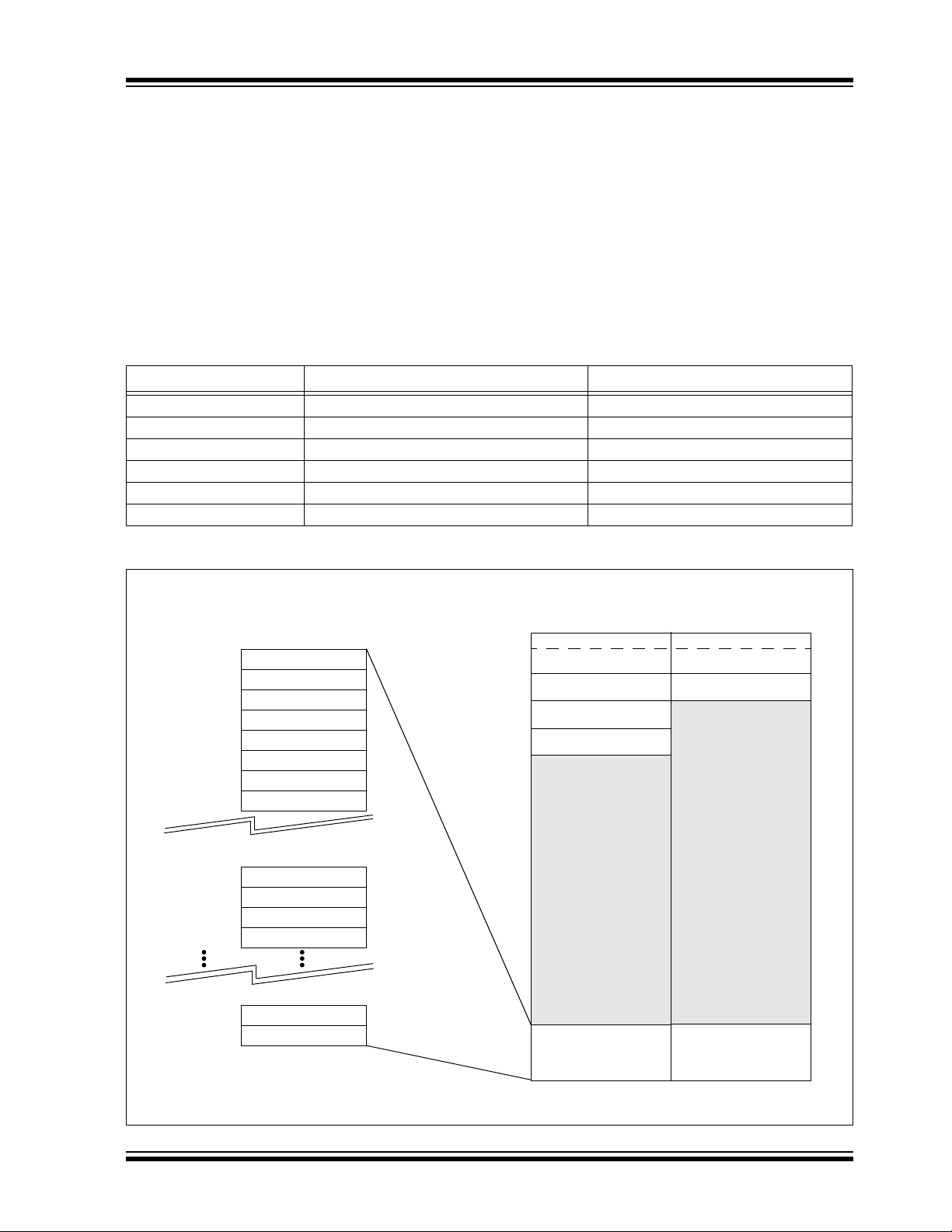

FIGURE 2-7: MEMORY MAP FOR PIC18FX220/X320
Device Code Memory Size (Bytes) Data EEPROM Size (Bytes)
PIC18F1220 0000h-0FFFh (4K) 000-0FFh (256)
PIC18F2220 0000h-0FFFh (4K) 000-0FFh (256)
PIC18F4220 0000h-0FFFh (4K) 000-0FFh (256)
PIC18F1320 0000h-1FFFh (8K) 000-0FFh (256)
PIC18F2320 0000h-1FFFh (8K) 000-0FFh (256)
PIC18F4320 0000h-1FFFh (8K) 000-0FFh (256)
0000h
200000h
3FFFFFh
Unimplemented
Read as ‘0’s
200h
07FFh
Boot Block
Block 0
8Kbytes
200000h ID Location 1
200001h ID Location 2
200002h ID Location 3
200003h ID Location 4
200004h ID Location 5
200005h ID Location 6
200006h ID Location 7
200007h ID Location 8
300000h CONFIG1L
300001h CONFIG1H
300002h CONFIG2L
300003h CONFIG2H
3FFFFEh Device ID 1
3FFFFFh Device ID 2
4 Kbytes
Block 0
Block 1
Boot Block
Block 1
Block 2
Block 3
0FFFh
17FFh
1FFFh
Unimplemented
Read as ‘0’s
PIC18FX320 PIC18FX220
