2010 Microchip Technology Inc. Advance Information DS41398B-page 5
PIC18(L)F2XK22/4XK22
2.3 Memory Maps
For PIC18(L)FX3K22 devices, the code memory space
extends from 000000h to 001FFFh (8 Kbytes) in two 4-
Kbyte blocks. Addresses 000000h through 0001FFh,
however, define a “Boot Block” region that is treated
separately from Block 0. All of these blocks define code
protection boundaries within the code memory space.
TABLE 2-2: IMPLEMENTATION OF CODE
MEMORY

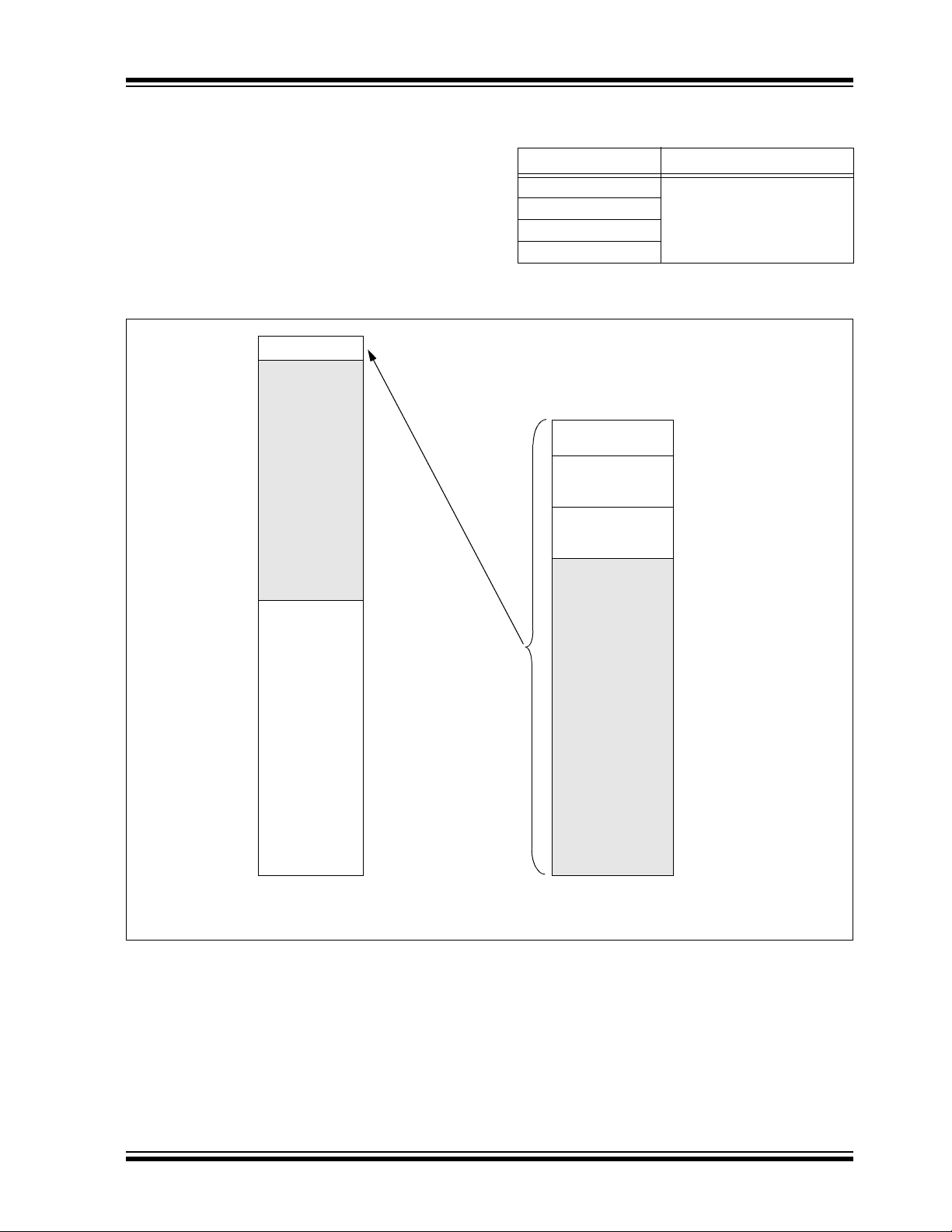

FIGURE 2-6: MEMORY MAP AND THE CODE MEMORY SPACE FOR PIC18(L)FX3K22
DEVICES
Device Code Memory Size (Bytes)
PIC18F23K22
000000h-001FFFh (8K)
PIC18LF23K22
PIC18F43K22
PIC18LF43K22
000000h
200000h
3FFFFFh
01FFFFh
Note: Sizes of memory areas not to scale.
Code Memory
Unimplemented
Read as ‘0’
Configuration
and ID
Space
MEMORY SIZE/DEVICE
8Kbytes
(PIC18(L)FX3K22)
Address
Range
Boot Block
000000h
0001FFh
Block 0
000200h
000FFFh
Block 1
001000h
001FFFh
Unimplemented
Read ‘0’s
01FFFFh
