PIC18F2XK20/4XK20
DS41297F-page 6 Advance Information © 2009 Microchip Technology Inc.
For PIC18FX4K20 devices, the code memory space
extends from 000000h to 003FFFh (16 Kbytes) in two
8-Kbyte blocks. Addresses 000000h through 0007FFh,
however, define a “Boot Block” region that is treated
separately from Block 0. All of these blocks define code
protection boundaries within the code memory space.
TABLE 2-3: IMPLEMENTATION OF CODE
MEMORY

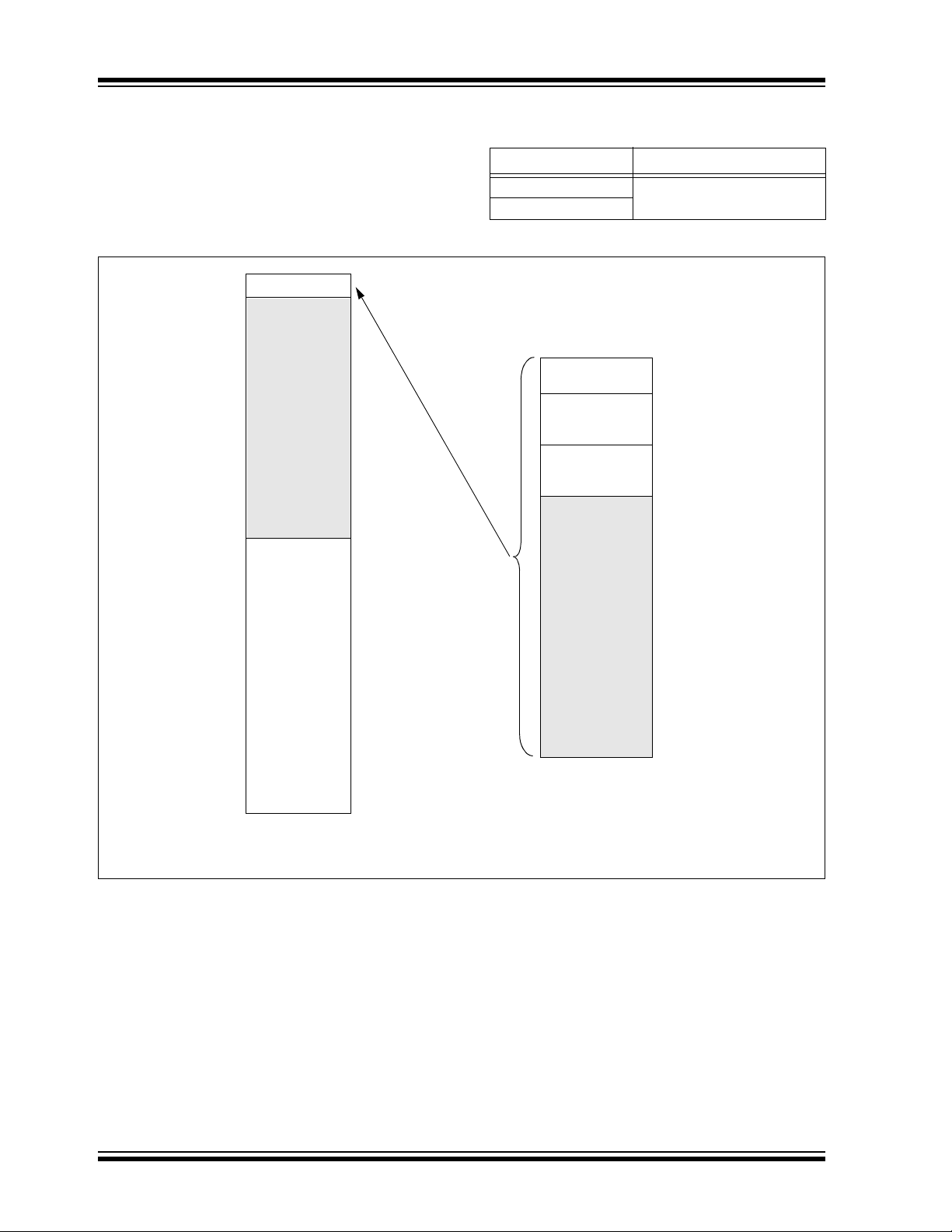

FIGURE 2-7: MEMORY MAP AND THE CODE MEMORY SPACE FOR PIC18FX4K20 DEVICES
Device Code Memory Size (Bytes)
PIC18F24K20
000000h-003FFFh (16K)
PIC18F44K20
000000h
200000h
3FFFFFh
01FFFFh
Note: Sizes of memory areas not to scale.
Code Memory
Unimplemented
Read as ‘0’
Configuration
and ID
Space
MEMORY SIZE/DEVICE
16 Kbytes
(PIC18FX4K20)
Address
Range
Boot Block
000000h
0007FFh
Block 0
000800h
001FFFh
Block 1
002000h
003FFFh
Unimplemented
Read ‘0’s
004000h
01FFFFh
